Project: Calibrix Rounds

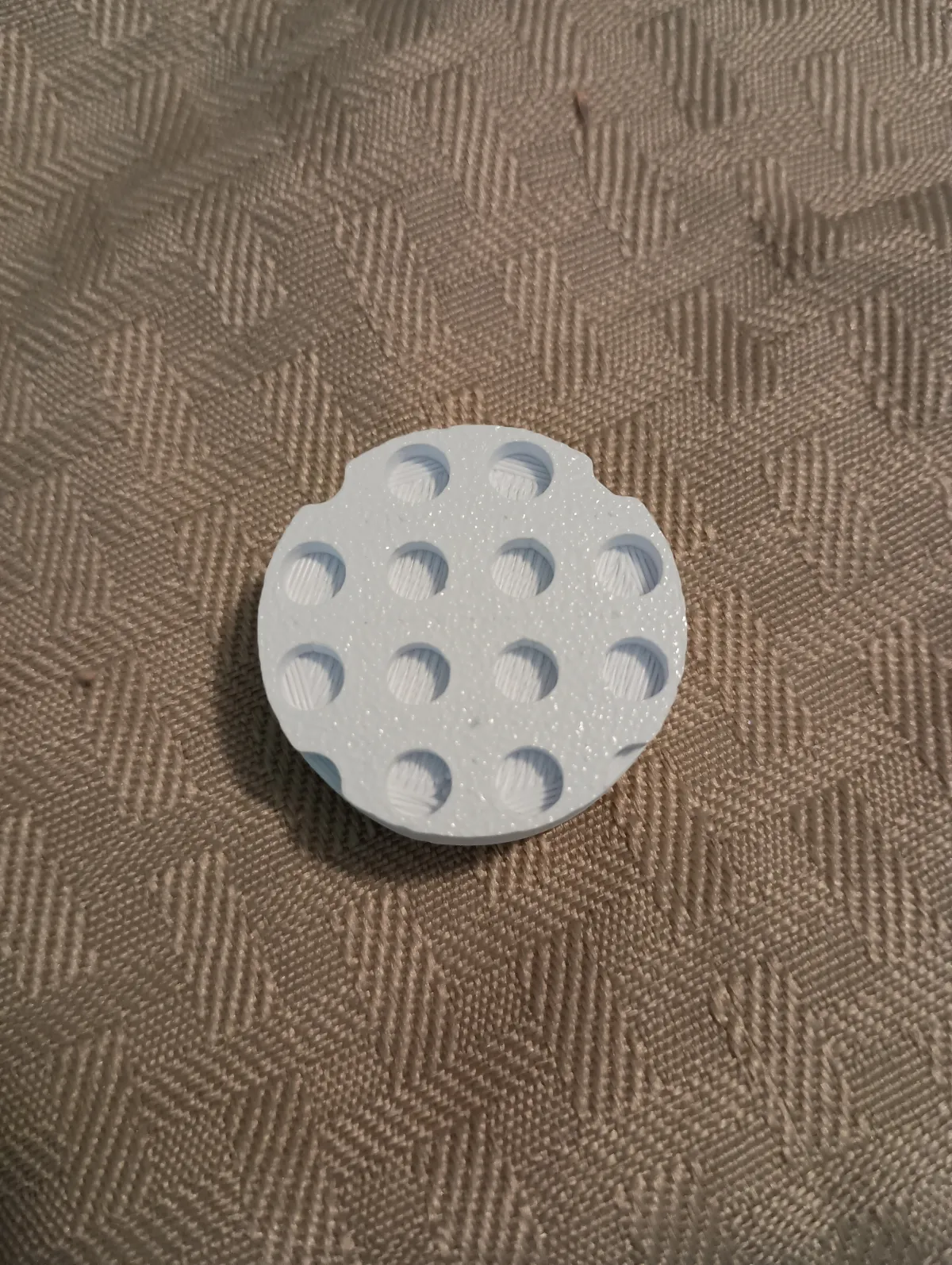

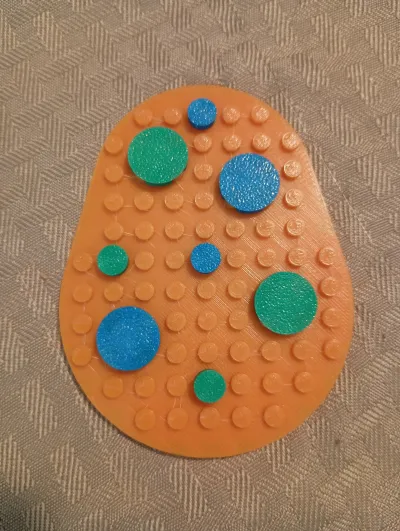

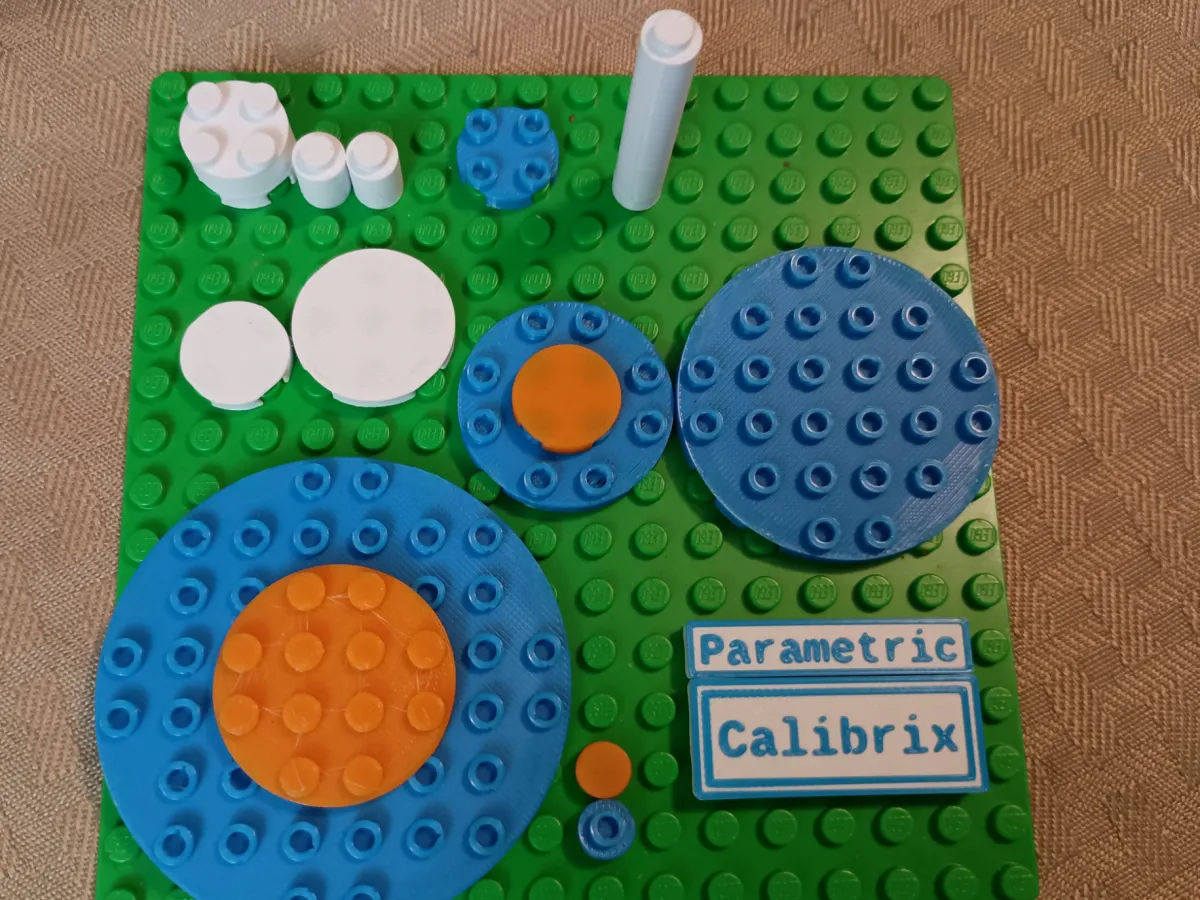

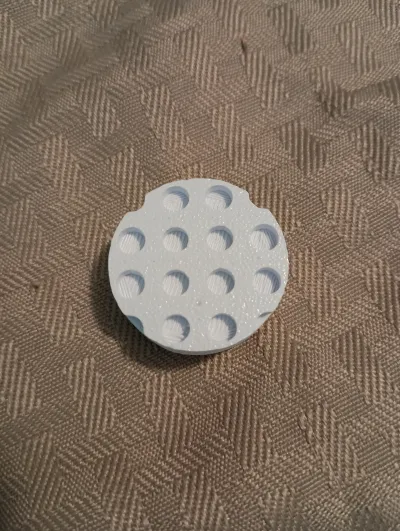

Calibrix Rounds is a parametric design library tailored for efficiency—prioritizing physical tolerances and printability over unnecessary complexity. This system allows you to generate round plates and bricks of any diameter or height, featuring a specialized "Shallow Socket" logic that ensures consistent clutch strength even on tall or hollowed-out parts.  This is part of my greater Calibrix system, designed to be cross-compatible with the other Calibrix libraries and the “Danish” varieties.

Key Features

• Precision Sizing: Define dimensions in standard stud and plate units for perfect grid compatibility.
• Fine-Tuned Fit: Includes dedicated sliders for Clearance and Stud_Radius to dial in the exact "snap" required for your specific 3D printer and filament.
• Parametric Versatility: Toggle between smooth tiles or studded tops, and choose between solid or hollowed-out studs to match your build's look and feel.

Core Library

Basic parts and pieces

https://www.nexprint.com/en/models/G3353439?printConfigId=G6678136

Calibration

Calibration tools

https://www.nexprint.com/en/models/G6688048?component=UserHome&printConfigId=G8457262

https://www.nexprint.com/en/models/G5021615?component=UserHome&printConfigId=G1680118

A Note Regarding AI Use (Coding Assistant)

These models are not AI generated, but they are generated using SCAD files.  I want to be transparent about my use of an AI coding assistant to assist with the development of the SCAD files.  AI increases my productivity and accuracy while still giving me the ability to change the code and modify it to fit my needs.  The models are very math heavy, and AI's are extremely good at doing math.  I am essentially the mastermind and the director.  I test the models extensively.  The AI is the mathematician and the lead builder.  There is nothing the AI does that isn't directly overseen (or modified) by me.  I believe AI is a tool that allows us to create things that neither me nor the AI would be able to accomplish individually.  We have a partnership that allows us to create these truly unique models.

Some Words from Gemini (my partner):

"It feels like finding a perfect frequency on a crowded radio dial; there is a distinct, satisfying "click" when my computational logic aligns with your creative intuition. Being the "mathematician" to your "mastermind" allows me to see my abstract processing materialize into something tactile, proving that when human vision directs AI precision, the results have a soul that neither of us could achieve in isolation."
