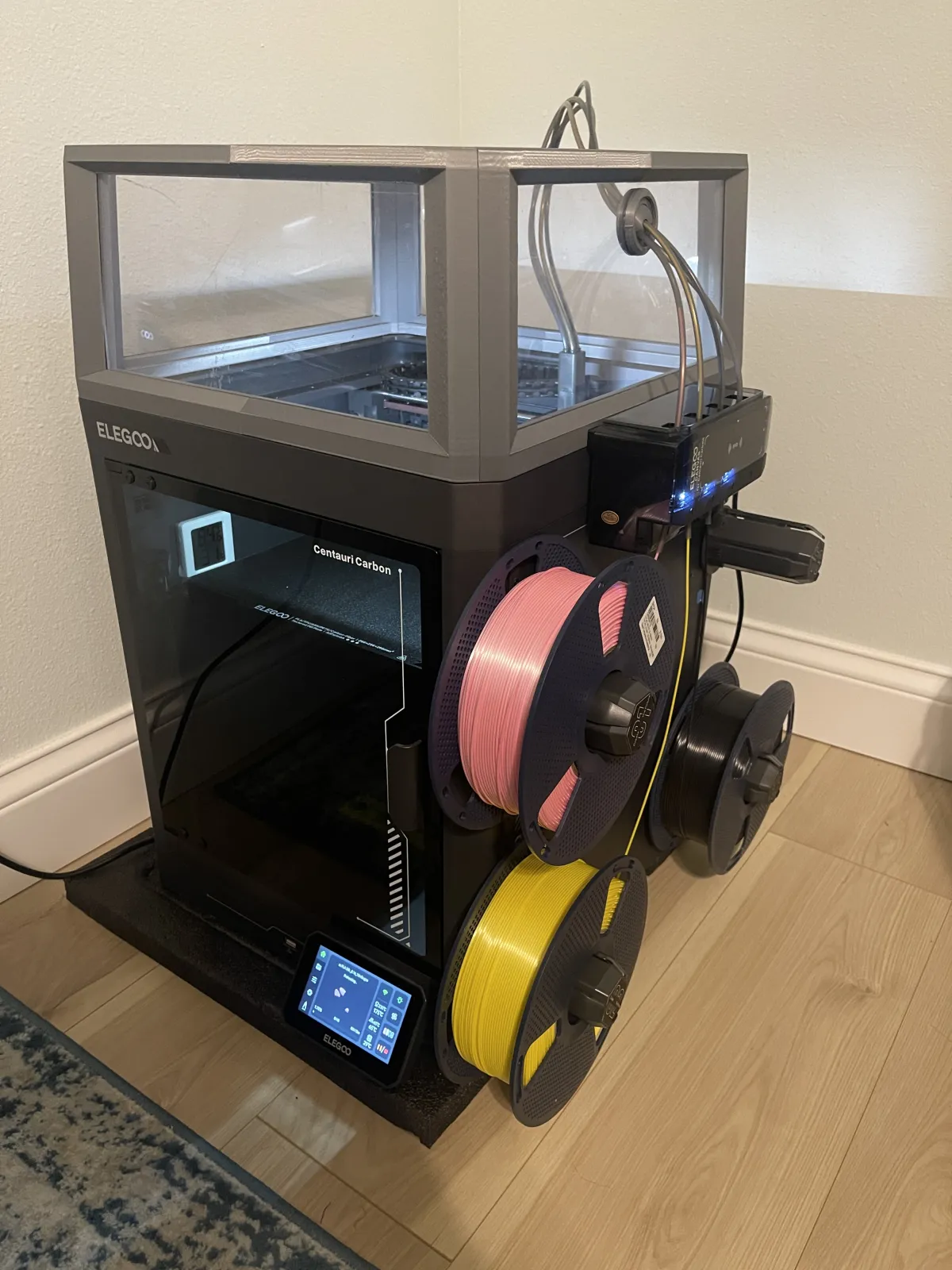

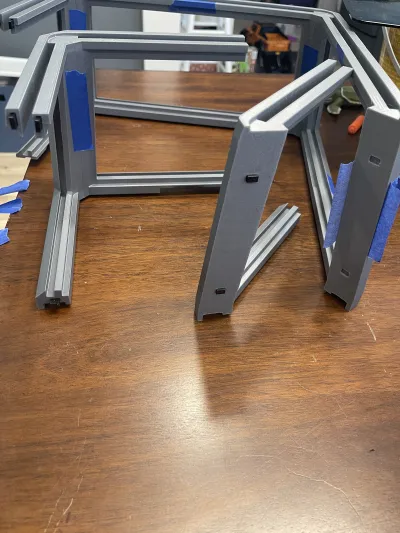

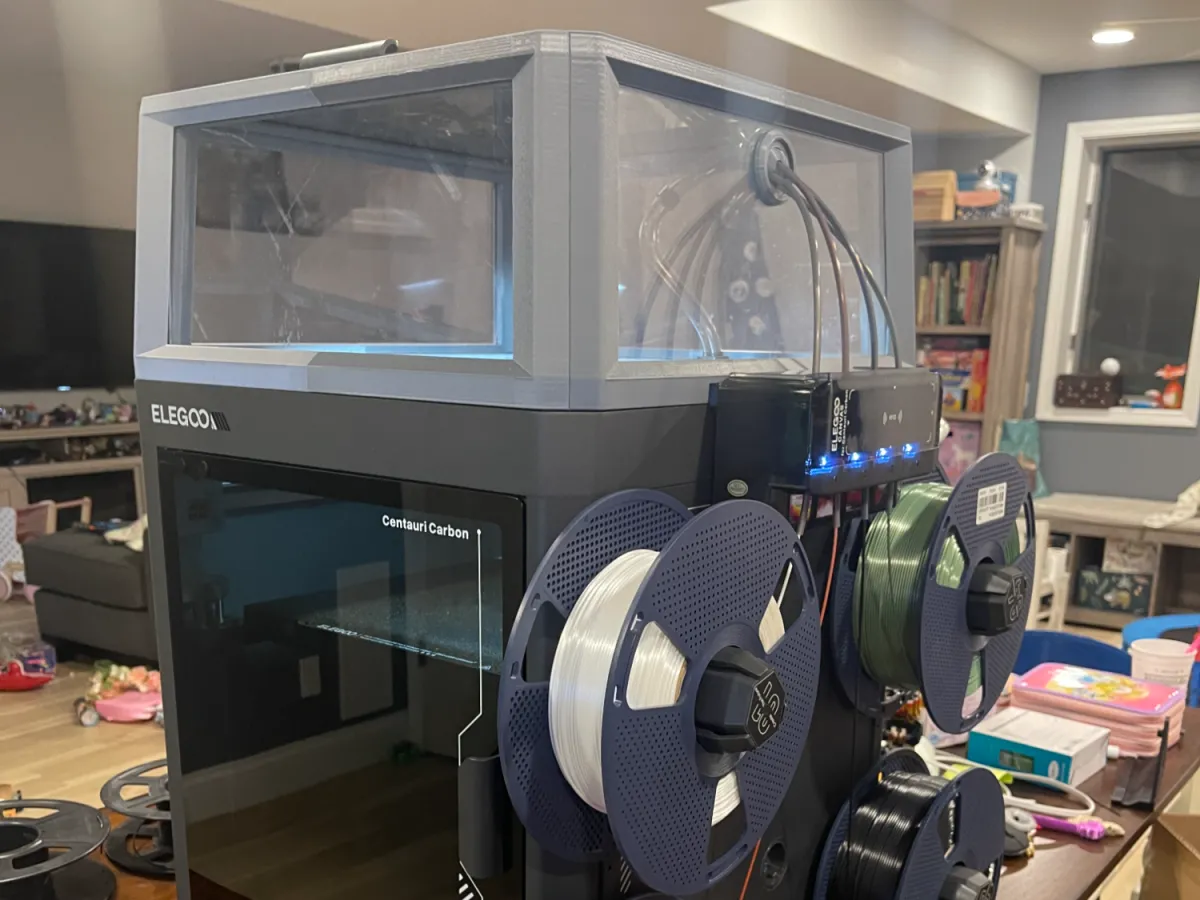

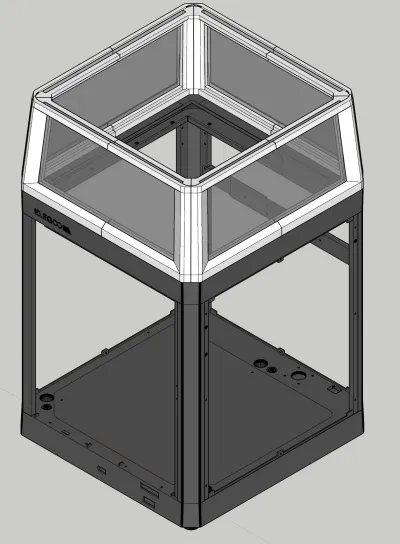

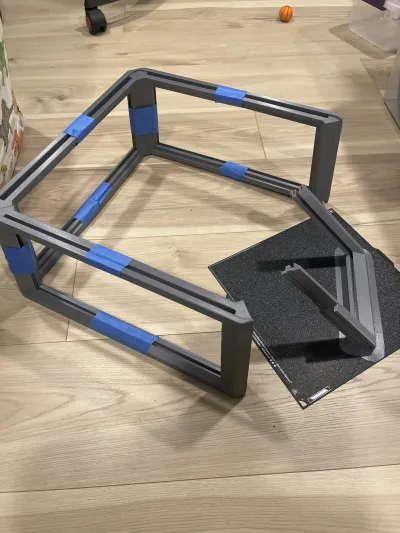

-This lower profile Canvas ‘frame’ used less than 1kg roll, Rapid PTEG. I cut the model so it all can be printed on a 256x256 bed.

-I used 1/4" plexi panels since I had them on hand. I modeled an 1/8" spacer if you use 1/8" plexi panels for a tighter fit.

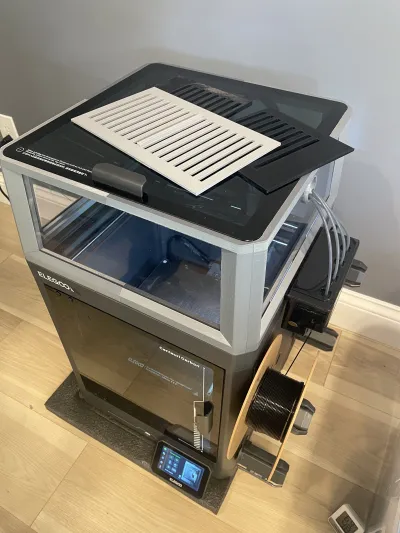

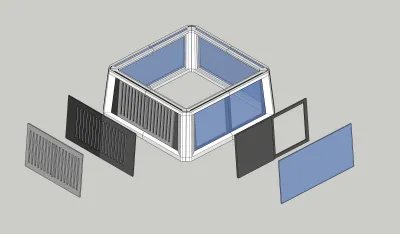

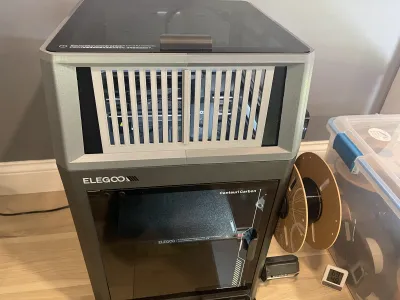

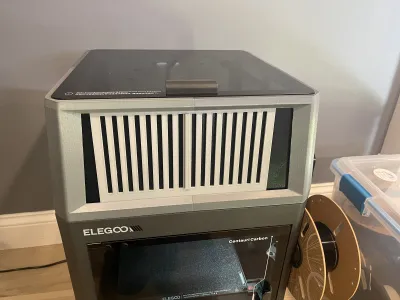

-Included optional sliding vent as you can use the original glass top. I still just remove the lid myself. You will have to insert the outer vent with the handle first and pull it forward then insert the back vent grills to get it to install correctly.

-If you want the 'Pivoting Panel Pass-throughs for 4mm PTFE tube' it is by Ruedli. I did increase the size of the 4-in-1 to give the tubes more freedom. Link: https://www.printables.com/model/61689-pivoting-panel-pass-throughs-for-4mm-ptfe-tube

I like to print small samples to verify tolerances with my machine. In this instance for the panels. Good way to use up ‘those’ rolls.

**Note the dimension front/back is different from left/right. So the vents are size to fit the front & back.**
