A1 extruder cooling fan
Tobucosh A-series accessories
Temperature-controlled fan mount
Printer cooling system modification
Extruder fan
0.2 mm layer height, 2‑wall walls, 15% infill density
1-disc
PLA
Designer
2
0

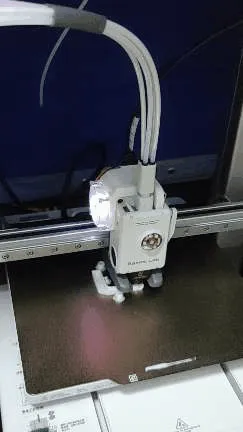

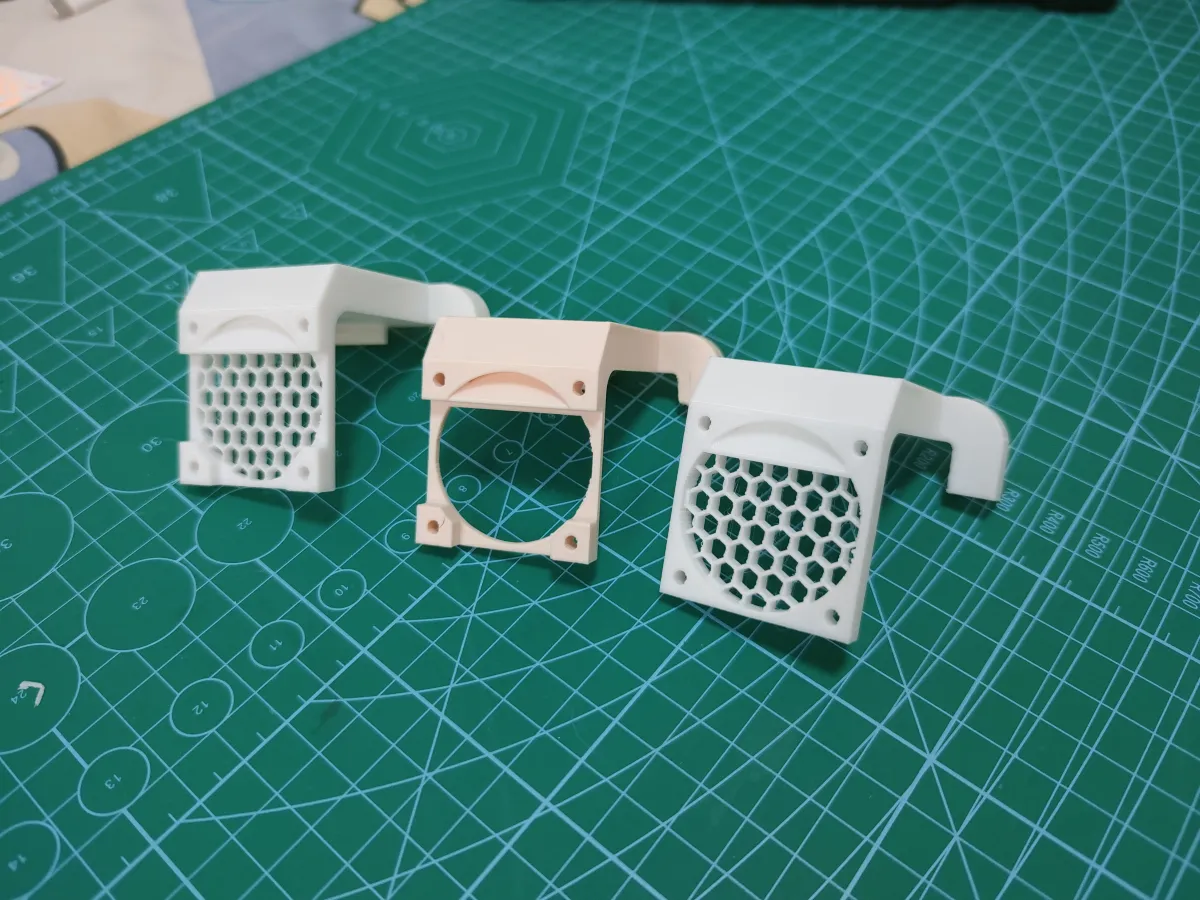

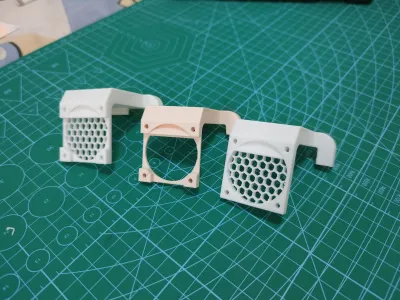

Extruder and gear cooling fan mount designed specifically for the Tuzhu A-series printers, featuring snap-fit installation that ensures a damage-free setup and can be printed as a single part.

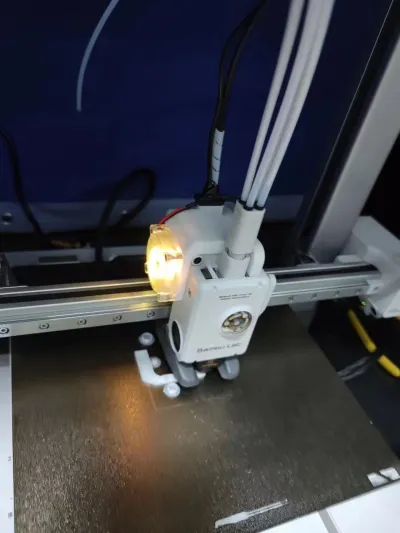

The fan is controlled by a temperature‑sensing switch: it activates only when the extruder heats up, providing effective cooling, and automatically shuts off once the temperature drops.
Required components:

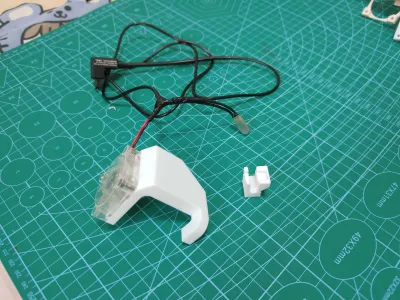

4010 cooling fan, temperature‑control switch (model KSD9700, normally open at 40°C), M3–12 screws (2 or 4 pieces), and one 4‑pin power cable for AMS interface power supply.
Originality of the Model
The author declares that this work is their personally original model
This model is licensed under the following terms:
This work is licensed under a Standard Digital File License. Digital files have a strict non-commercial, personal use only license.
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital file or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including remixes of this object). You can not host these files on other digital platforms, web stores or cloud repositories. The objects may not be used in any way whatsoever in which you charge money, collect fees.
