Center-finding Jig
Print Profile(1)
  • 0.2mm layer, 3 walls, 20% infill

    1-disc

    PLA

    Designer

3

2

35

15

Released 2026-07-27
Details
Files(4)
Makes & Comments (0)

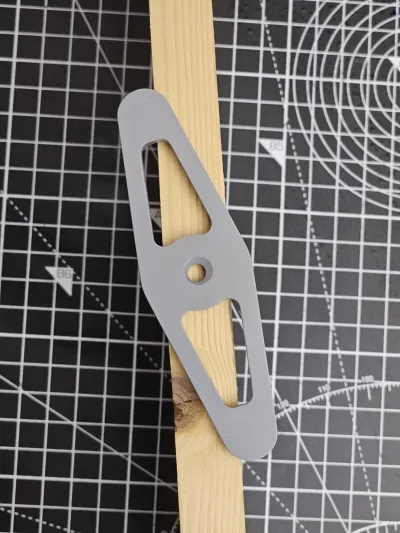

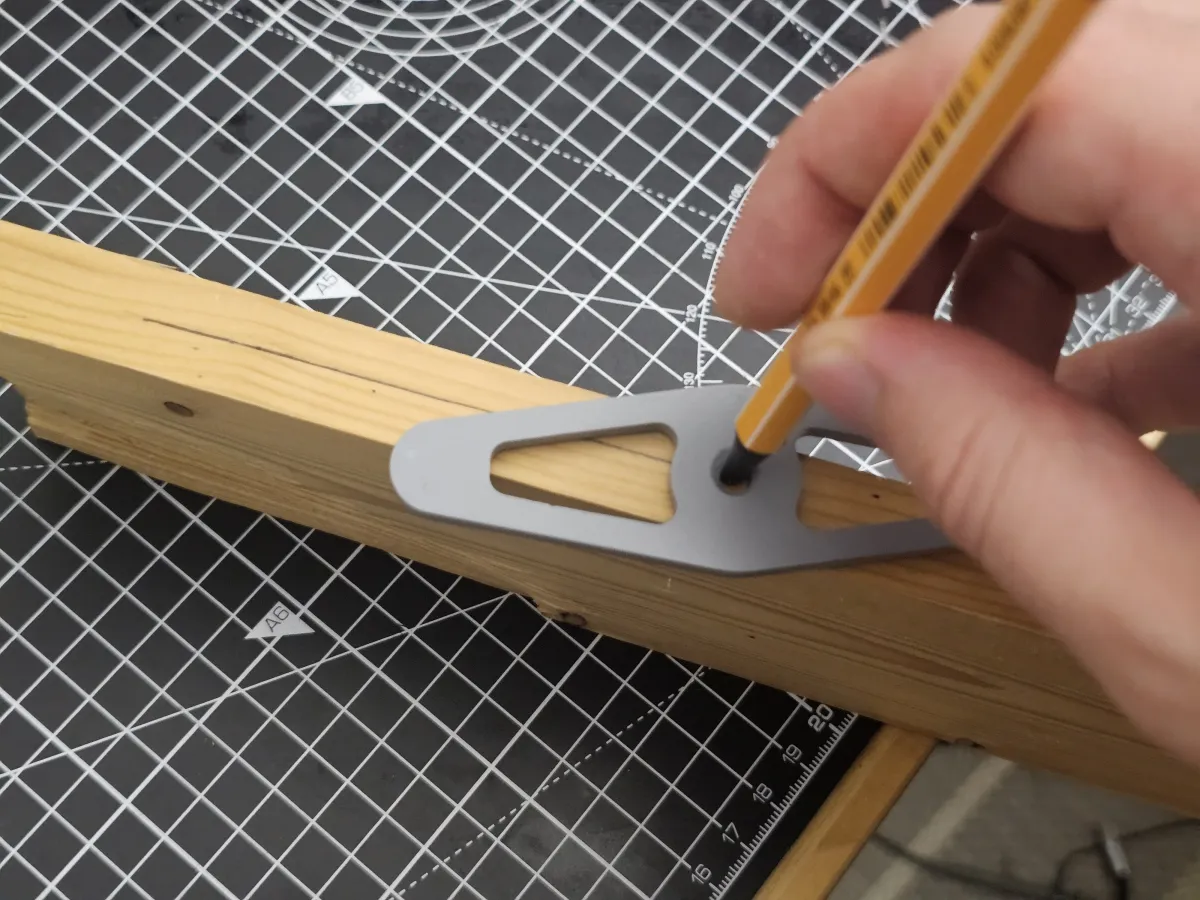

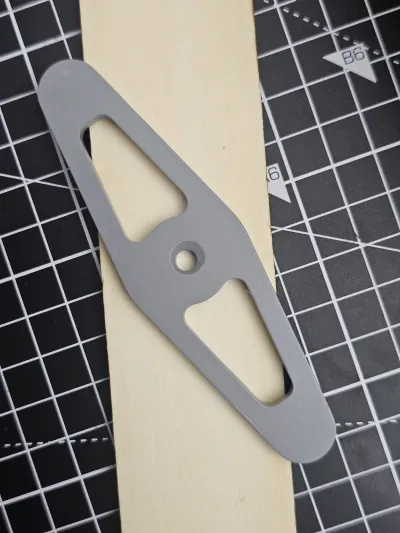

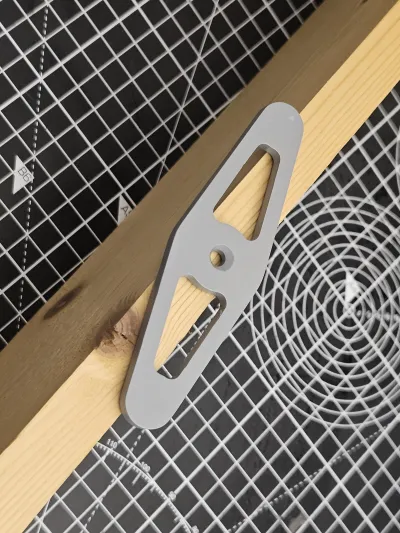

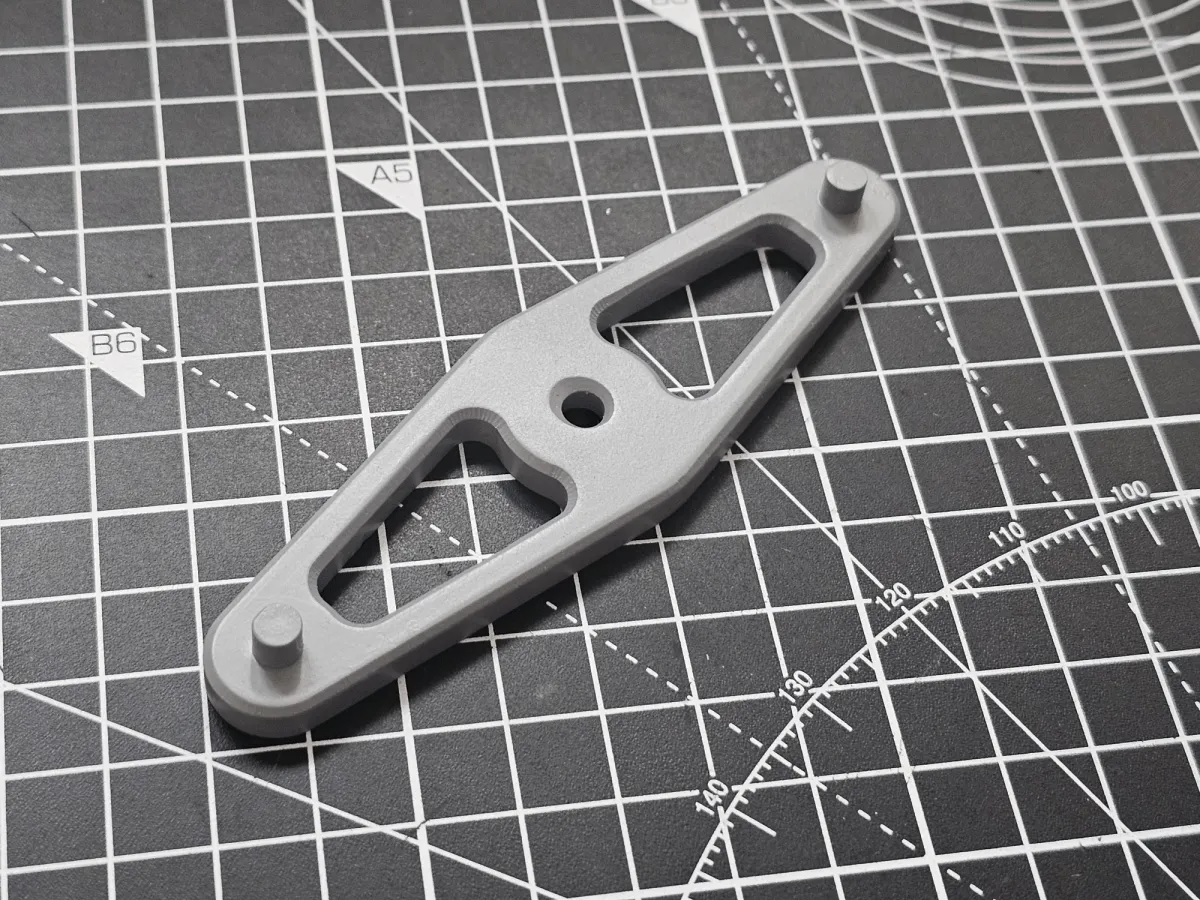

Centre Jig for pieces of wood, metal, plastic, etc. (Width 85mm or less). Can be scaled in the slicer if needed.

Version without fillets is intended for use with a CNC machine. Fillets can be added in your CNC CAM software

If printing, I suggest PLA or PETG. 3 Walls with 20% rectilinear infill.

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Models(4)

  • model file image
    CentreJig-WithoutFillets.stepDesigner

    44.94 KB

    2026-07-26

  • model file image
    centrejig.stlDesigner

    624.11 KB

    2026-07-26

  • model file image
    CentreJig-WithFillets.stepDesigner

    105.07 KB

    2026-07-26

  • model file image
    CentreJig.3mfDesigner

    153.05 KB

    2026-07-26
