Designed by myself in OnShape

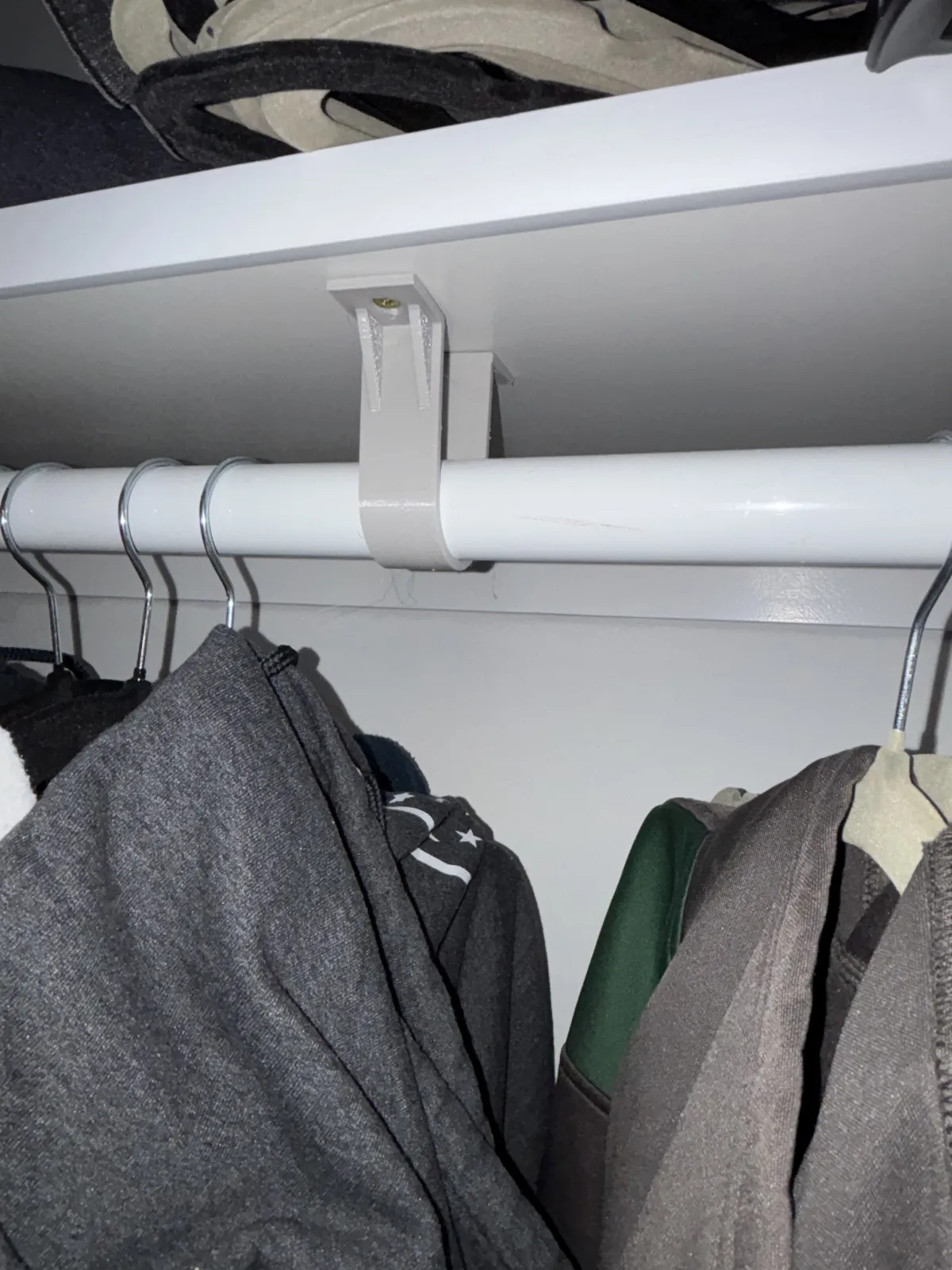

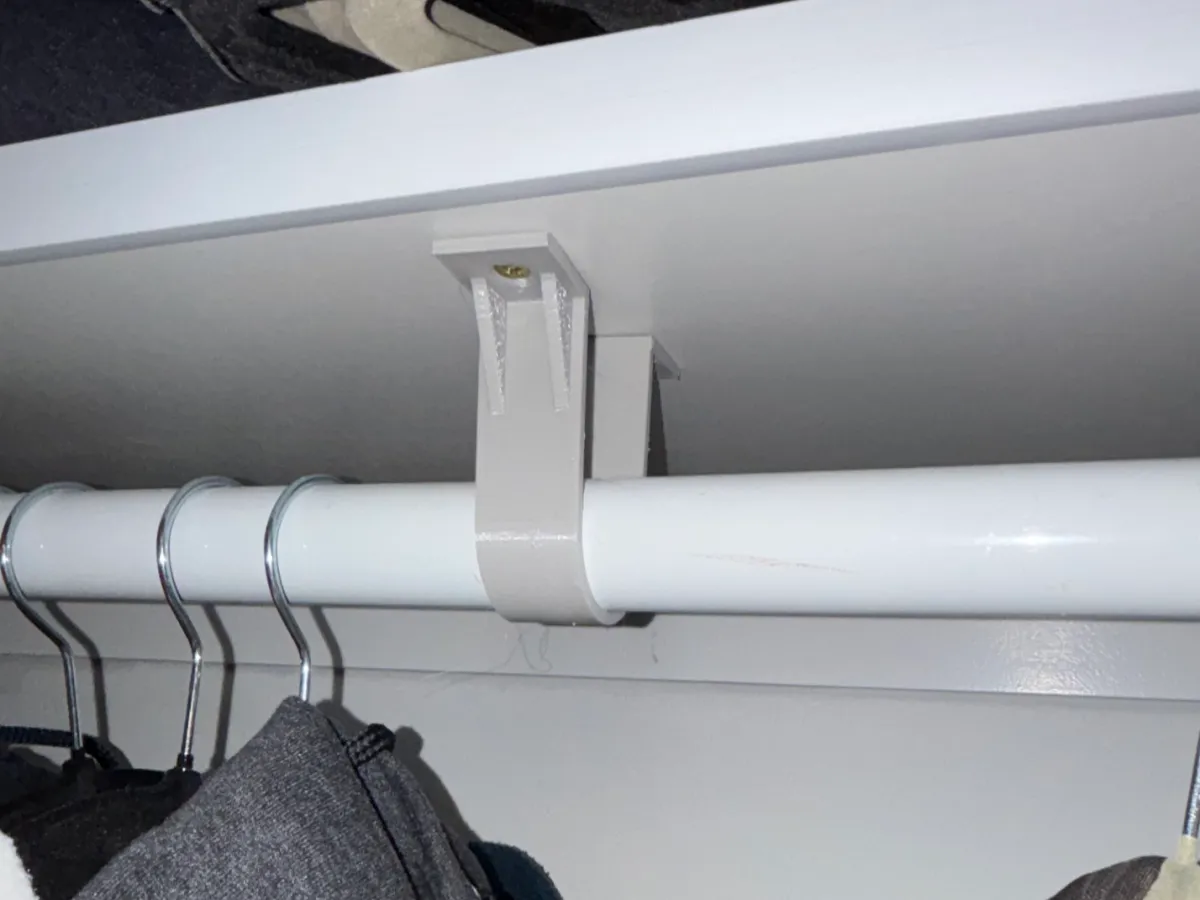

After moving into a new house, I noticed that with all of my clothes hung in my closet, the middle was starting to sag. I designed this bracket to screw into the shelf above the rod in order to relieve some of the weight in the middle.

This was designed for a rod that is 1.5" in diameter, and with a shelf ~3" above it.

The screw holes are 0.125" in diameter.

I recommend drilling pilot holes in the shelf to avoid splitting the wood.

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    Screw
    2
    2 Screws short enough to not go through the other side of the shelf, I used 3/4" long screws.
