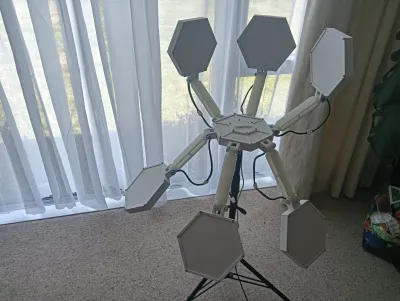

I created this light to use for parties, and going to festivals and so on.

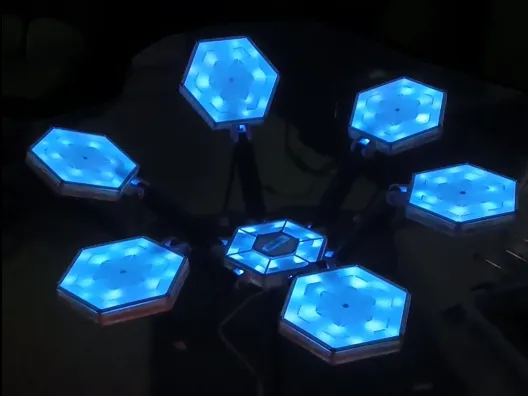

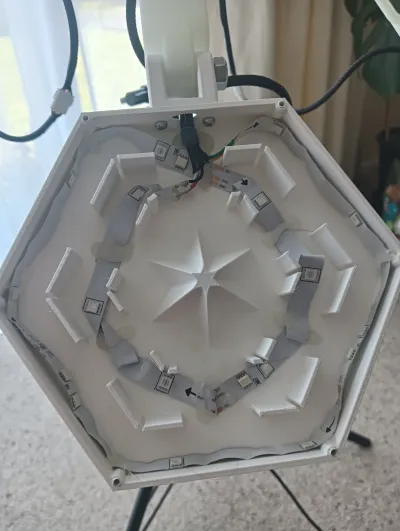

It is powered by a 5V LED strip that are connected in series so that the effects can be played from them.
It can be powered from either a phone charger or a power bank, so is portable.



I used Matte White PLA for most of the body, and Glow in the Dark PLA for the Arms.
Printing the body and covers in other colours will reduce the amount of light it puts out.

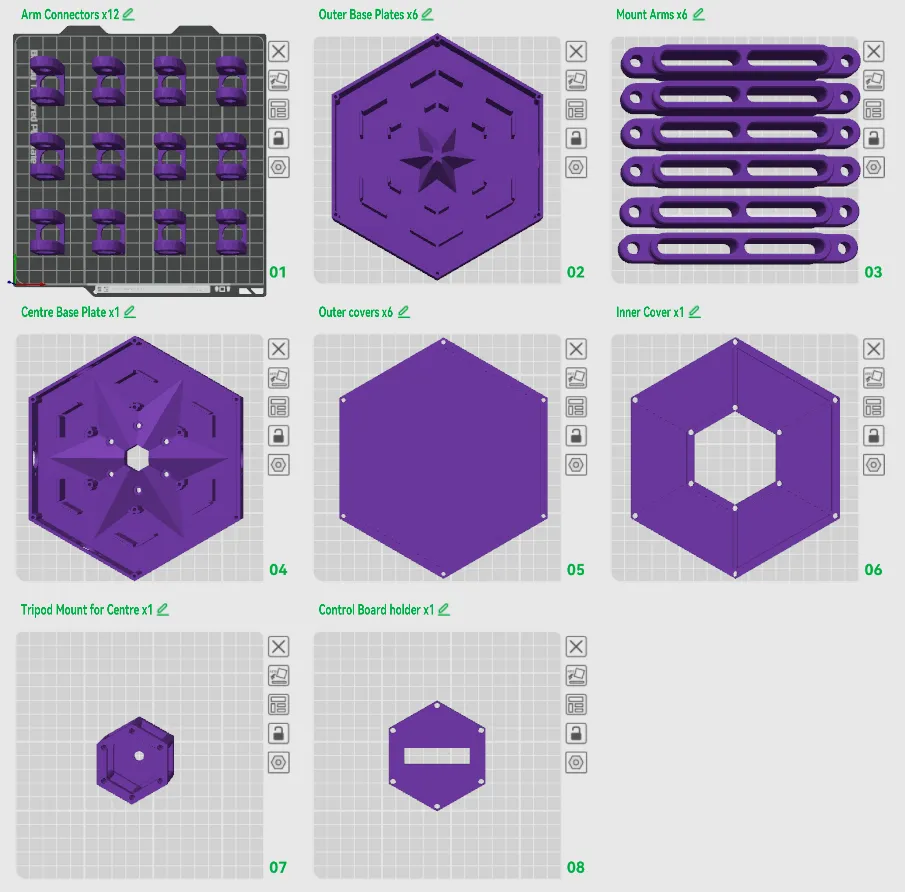

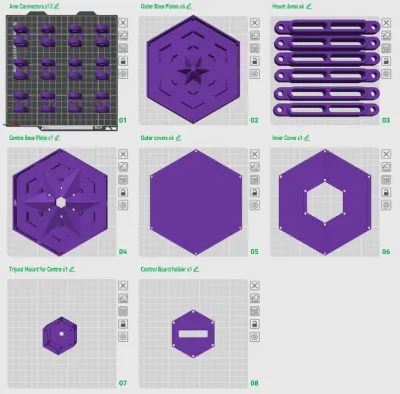

The size of the bodies was set to be able to print in one part on the A1 Mini.

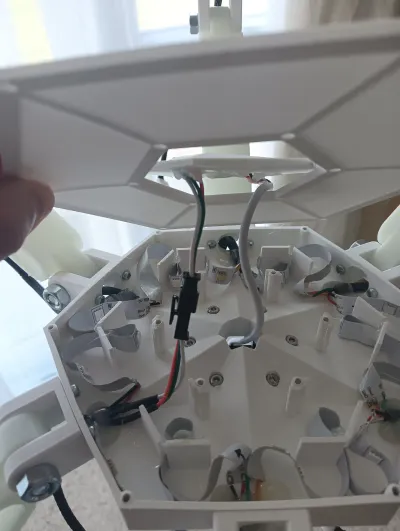

This will require soldering and maybe some customization of the model to get to work with your LED strip.



Bill of Materials.
6x M3 screws and Heatseat inserts for Tri-Pod mount
12x M8 x 35mm Bolts and nuts for Arms
72x 4gx12mm Self Taper screws for Arm Connectors and Covers
5m to 6m of LED Strip with a controller and remote - the one I used is no longer available so am unable to link
Wiring and plugs to connect the LED strips.





Bill of materials

  • Name
    Quantity
    Notes
  • 1
    m3 Bolts and Heatseat inserts
    6
  • 2
    M8 x 35mm Bolts and nuts
    12
  • 3
    4gx12mm Self Taper screws
    72
  • 4
    5m to 6m of LED Strip with a controller and remote
    1
  • 5
    Various wiring and plugs
    1

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Only noncommercial uses of the work are permitted

Remixes must be shared under the same license
