3D Printed Radius Gauges – Precision Measurement Tool

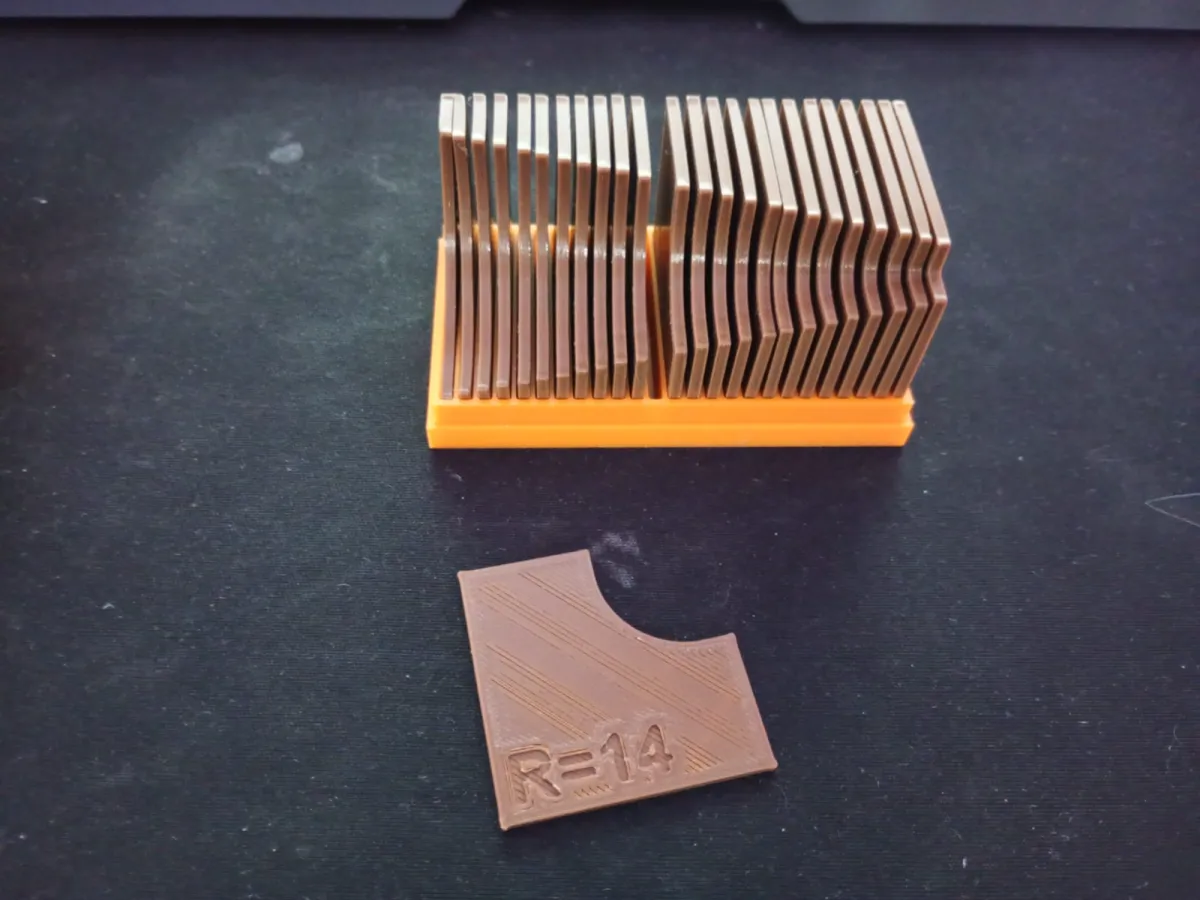

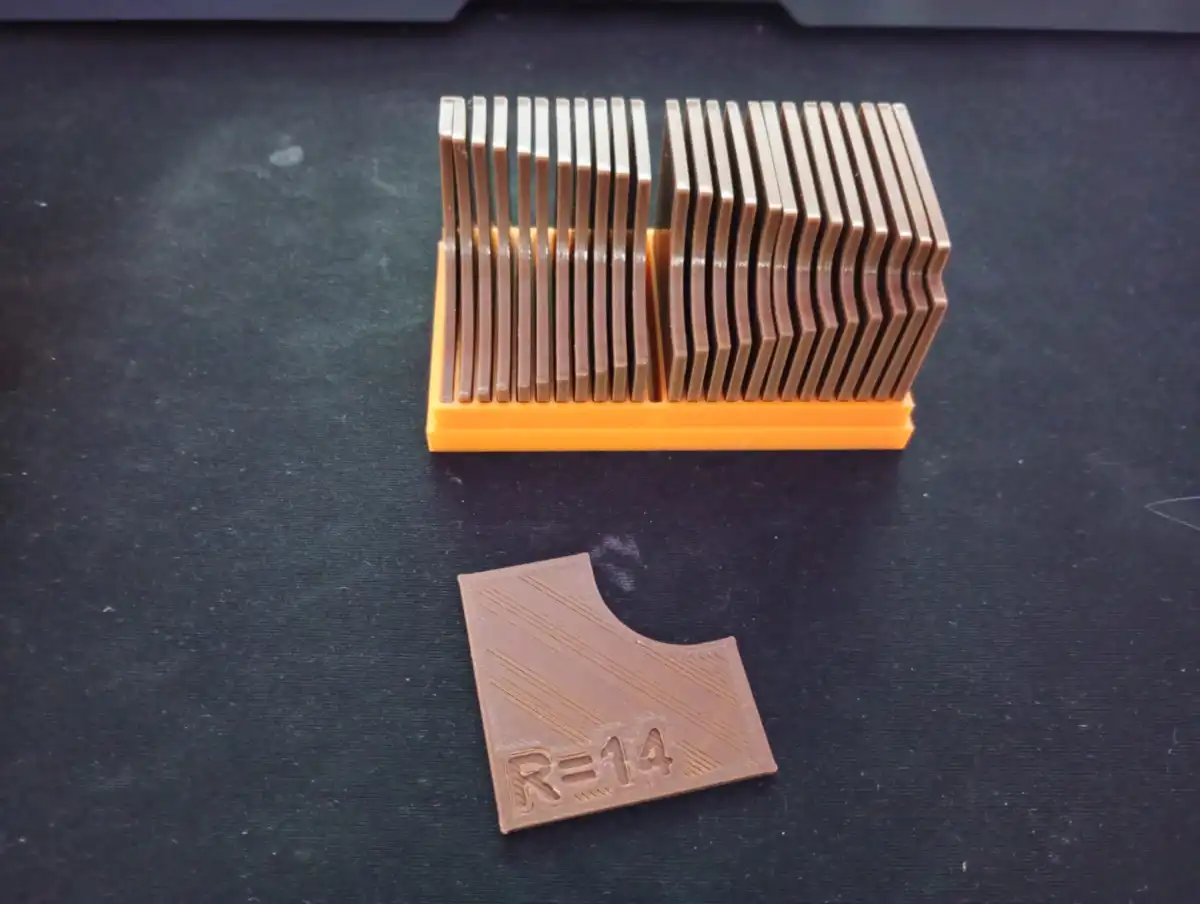

This project features a set of 3D printed radius gauges designed to help accurately measure the internal and external curvature (radius) of objects. The gauges are neatly organized in a compact holder, making them easy to store, access, and transport.

Each gauge plate contains a precisely modeled curved profile corresponding to a specific radius value. By placing the gauge against an edge or corner, users can quickly determine the correct radius by finding the piece that perfectly matches the curve. The radius value is clearly engraved on each plate, ensuring fast identification during use.

The design focuses on simplicity, functionality, and efficient 3D printing. The thin gauge plates are optimized for FDM printing while maintaining enough rigidity for reliable measurements. The storage base keeps the gauges aligned and prevents them from getting lost, turning the set into a practical desktop tool.

This project demonstrates how 3D printing can produce useful workshop tools quickly and affordably. Instead of purchasing expensive metal gauge sets, makers can print their own customizable versions in different sizes and materials.

Key Features

• Fully 3D printable precision measurement tool
• Measures inside and outside radii
• Engraved radius labels for easy identification
• Compact storage holder
• Support-free printing
• Ideal for makers, designers, machinists, and woodworkers

The 3D Printed Radius Gauge Set highlights the practical side of additive manufacturing—transforming simple digital designs into functional tools that support everyday fabrication and engineering tasks.
