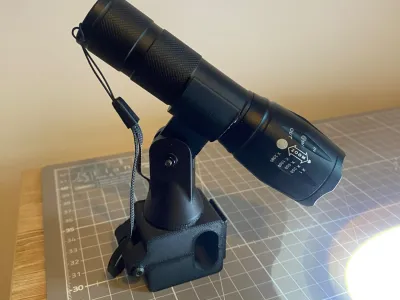

Torch Brackets that clamp to a gazebo for display lighting.



The torches i get are these: https://www.amazon.co.uk/dp/B0CJL33CNR?ref=ppx_yo2ov_dt_b_fed_asin_title  which are good for 5 hours on full power, 11 hours on low power.



For the Model you will need:



1 M3 insert nut for main swivel.

1 M3 x 25mm Bolt & 2 washers for swivel.

1 M3 x 18mm Bolt , 1 x M3 nut & 2 washers for pivot point near torch clamp

1 M3 x 30mm Bolt for hinge



Due to gazebos being build differently, other clamp dimensions may be needed. Email me on [email protected]

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    M3 insert nut
    1
  • 2
    M3 x 25mm Bolt
    1
    not countersunk bolts
  • 3
    M3 x 18mm Bolt
    1
    not countersunk bolts
  • 4
    M3 x 30mm Bolt
    1
    not countersunk bolts
  • 5
    M3 size washers
    4
  • 6
    M3 Nut
    1
    Locking nut with nylon better but not essential.

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Only noncommercial uses of the work are permitted
