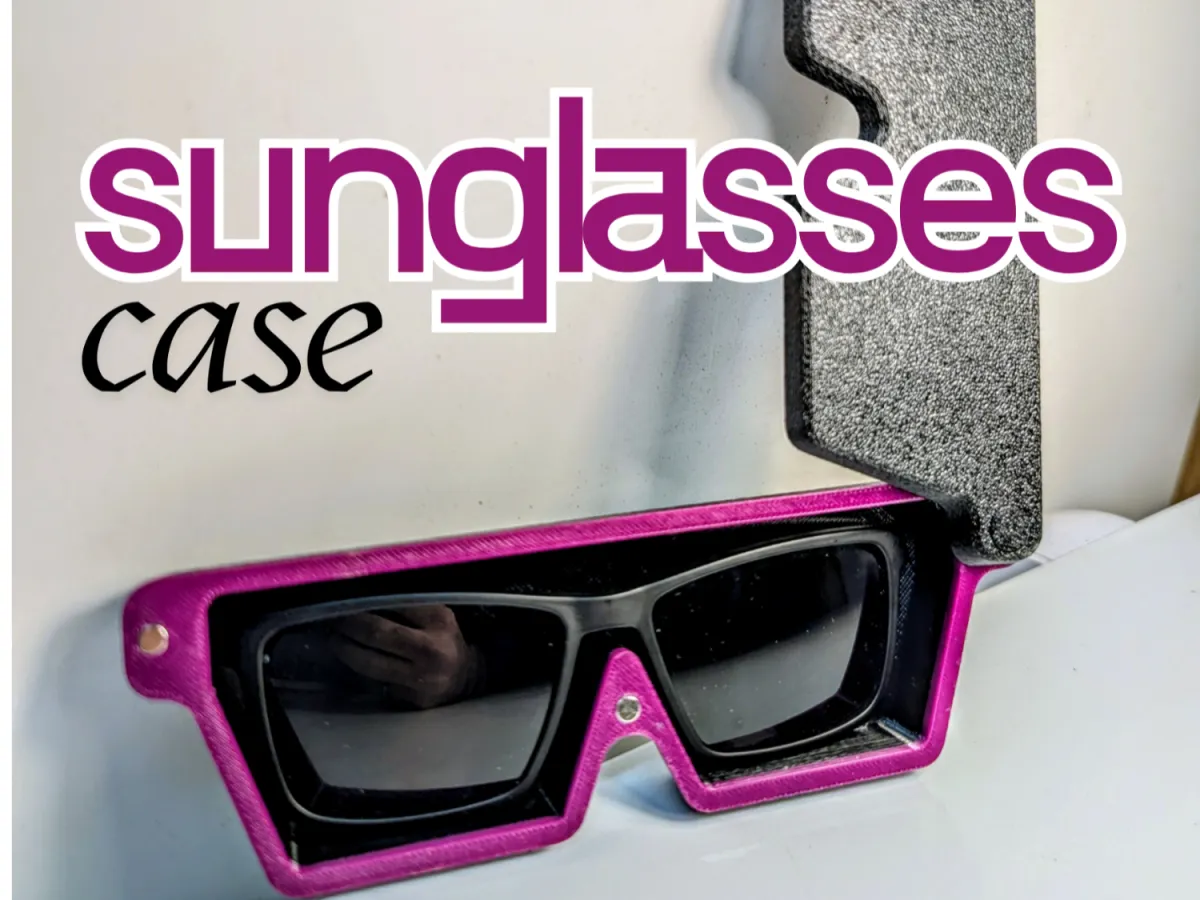

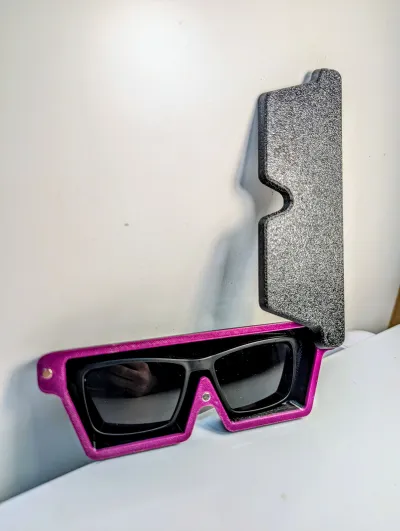

A magnetic glasses case that was originally designed for clip-on sunglasses, but can be adapted to full sunglasses or even just standard glasses.

Sizes

Comes in three sizes by default. Medium is the size shown in the images.

• Small: Fits glasses 125mm wide, 40mm tall, 12mm deep
• Medium: Fits glasses 135mm wide, 45mm tall, 15mm deep
• Large: 165mm wide, 60mm tall, 20mm deep

Assembly

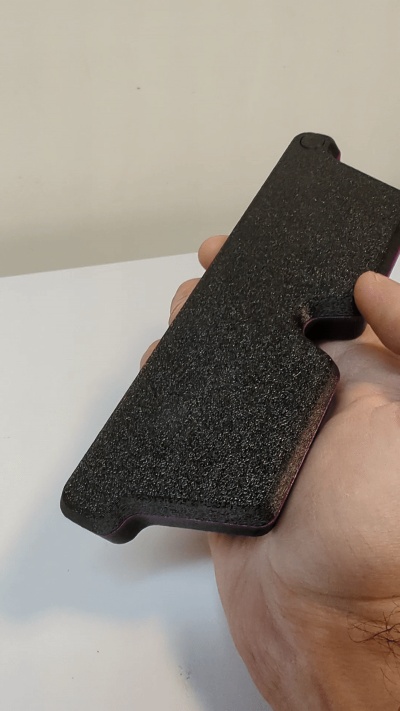

1. The case prints in three parts. The Case_Bottom, Case_Lid, and Pin. The pin just pops in the right side of the case like so.

2. Insert magnets into the 4 locations shown below. Be sure to orient them in the correct polarity. The magnets I used are 4.7mm diameter x 3.2mm thick.

3. [Optional] Use the provided DXF files to laser cut felt inserts for the case, and super glue them in place.
