My GF needed a sturdy and stable paintbrush holder so I made her an over-engineered one that could probably survive a nuclear melt-down (it could not).
I also bought a set of heat-set inserts (see side pieces) and really wanted to try them out so there's 10 that you'd need.
Everything prints flat, absolutely no supports needed
For the hardware:
M3x8 bolts, button head- 28 pcs
M3 heat-set inserts - 10 pcs
Just screw everything together.
The tolerances on bolt recesses might be a bit tight, you might need to cut off the little pieces that lie on the corners of the top pieces.

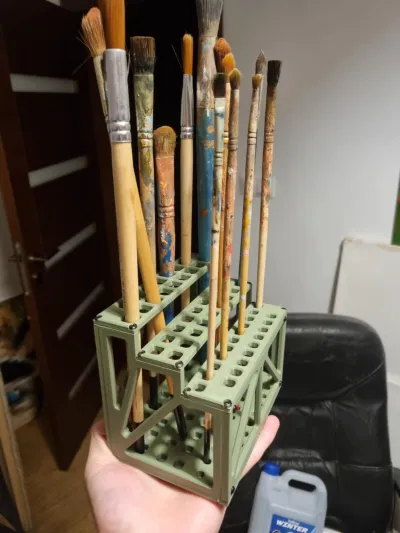

The organizer houses 54 brushes, the openings are as such:
12x12mm - 16
10x10mm - 18
8x8mm - 20

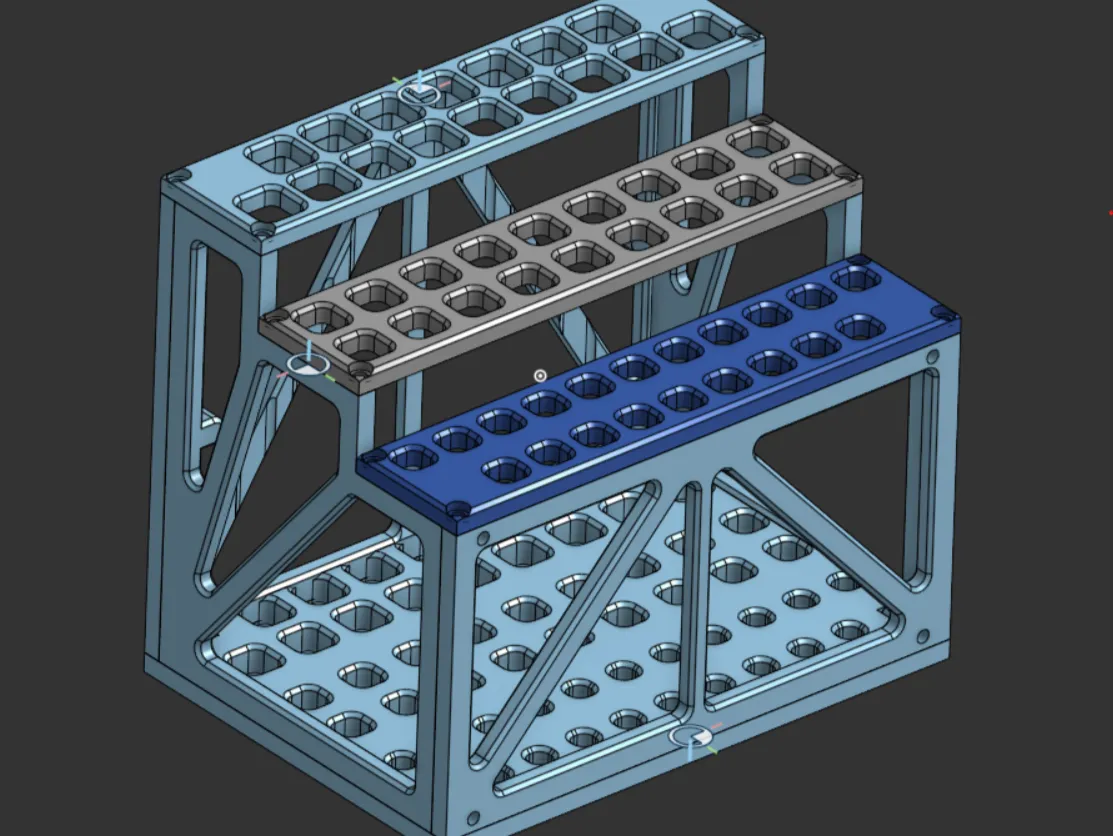

There's a model on on-shape, feel free to edit it to your needs.
Bill of materials
- NameQuantityNotes
- 1M3x8 Buttonhead28
- 2M3 heat-set insert10
Originality of the Model
The author declares that this work is their personally original model
This model is licensed under the following terms:
Credit must be given to the creator
Only noncommercial uses of the work are permitted
Models(8)
Side_left.stlDesigner596.57 KB
2025-10-31
Side_right.stlDesigner596.57 KB
2025-10-31
Top_8mm.stlDesigner1.13 MB
2025-10-31
Top_10mm.stlDesigner1.04 MB
2025-10-31
Top_12mm.stlDesigner982.50 KB
2025-10-31
Bottom.stlDesigner2.67 MB
2025-10-31
Front.stlDesigner441.20 KB
2025-10-31
Rear.stlDesigner709.95 KB
2025-10-31
