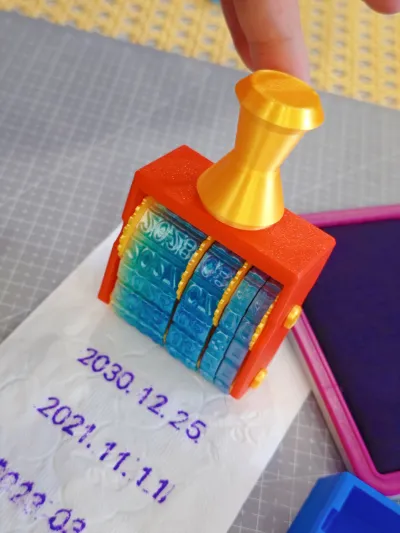

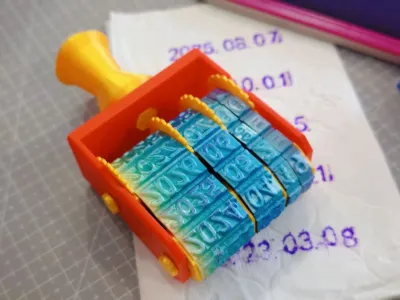

TIMELINE Date Stamp – Capture Every Memorable Moment with Ease

Leveraging the exceptional toughness of our filament, we’ve designed a chain‑wheel–style date stamp that’s both functional and durable.

This versatile stamp can record dates spanning from January 1, 2020, to December 31, 2031.

Installation Guide:

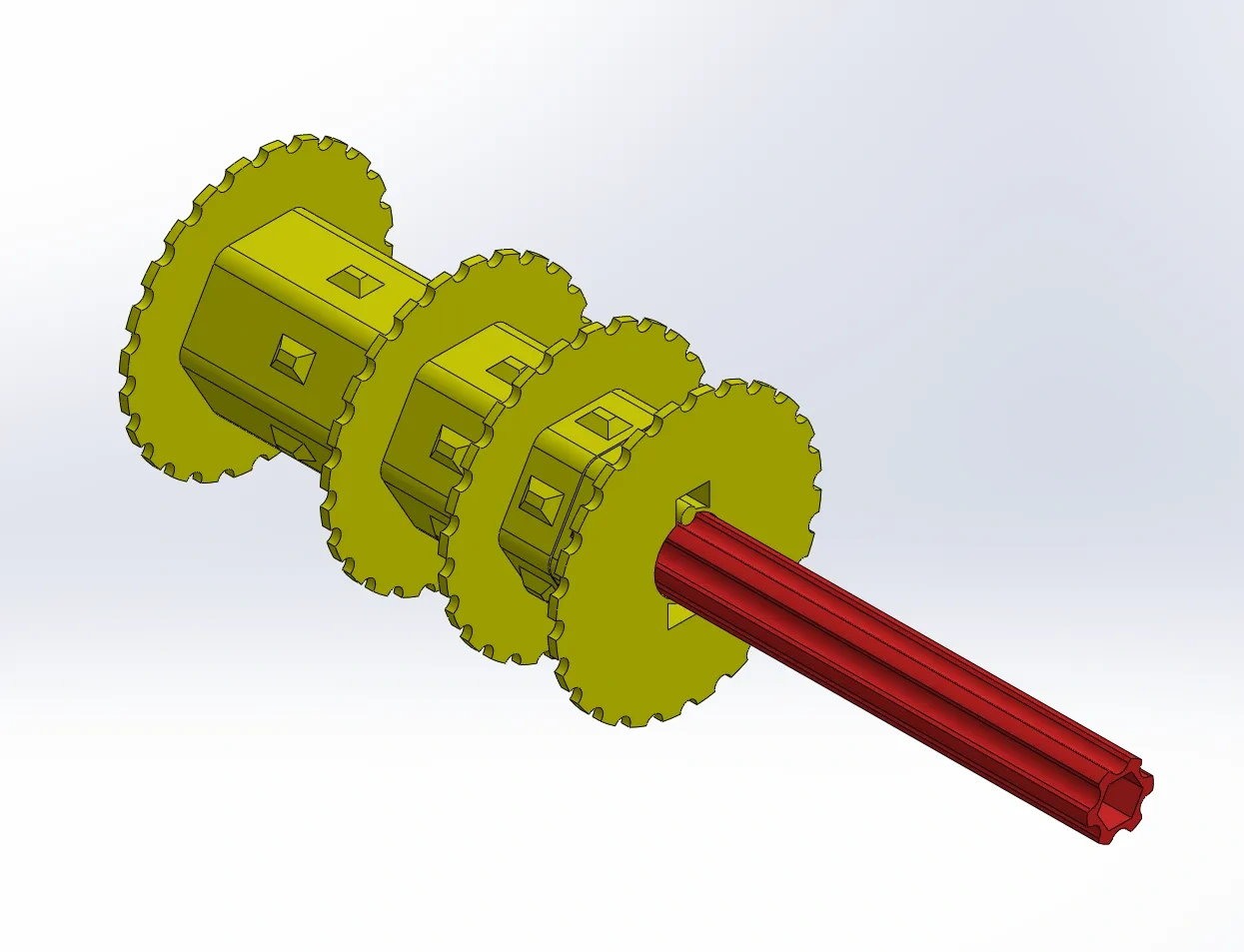

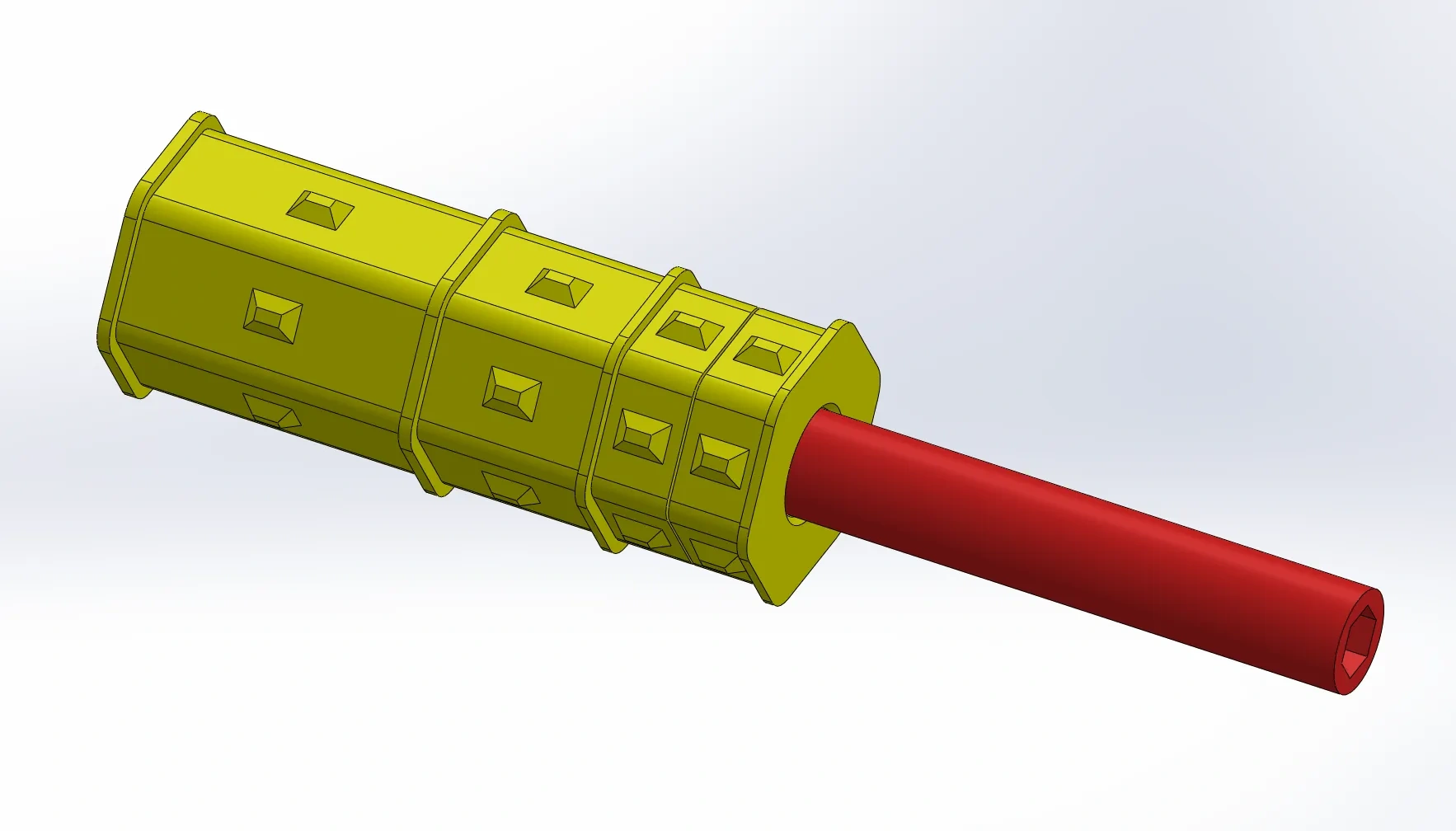

1. Bottom Chain‑Wheel Assembly

2. Top Ratchet Assembly

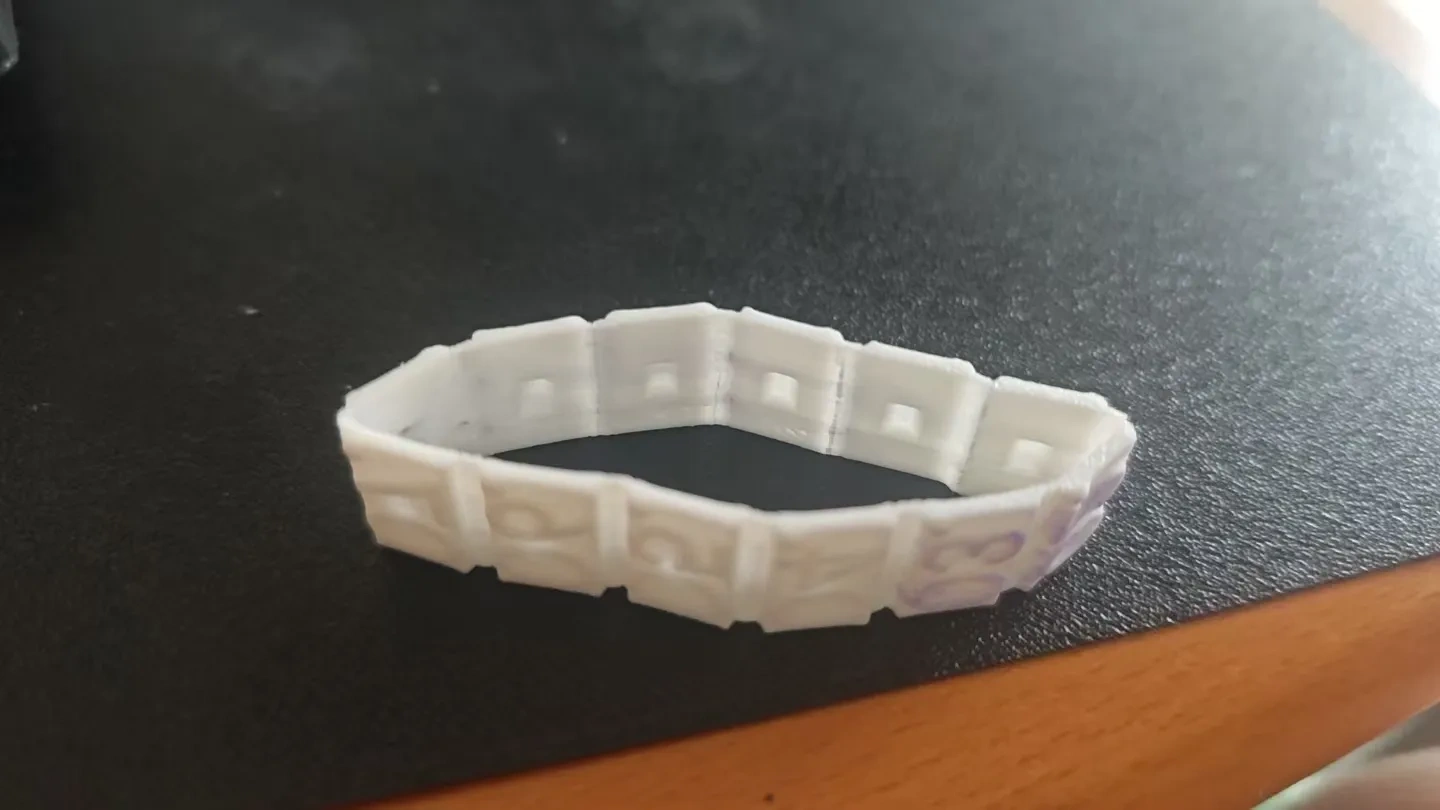

3. Begin by folding each date wheel into its proper position.

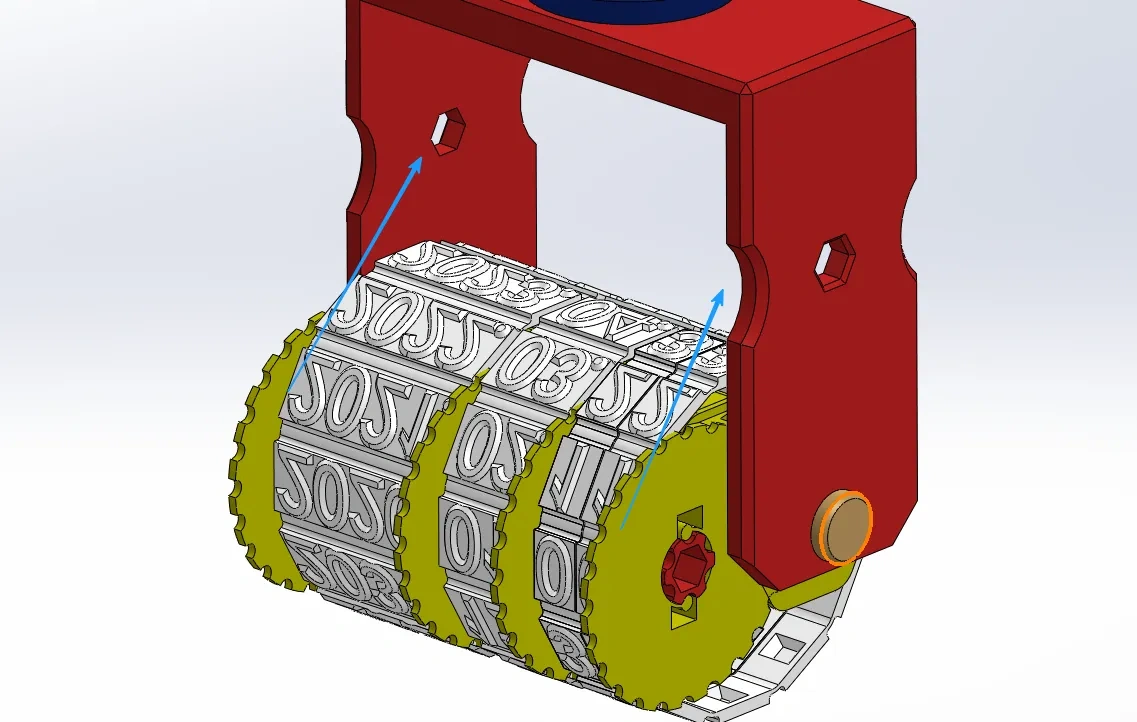

4. Sequentially slide each date wheel onto the bottom chain‑wheel assembly, aligning them in the correct order—year, month, decade, and day—before securing them into the mounting bracket.

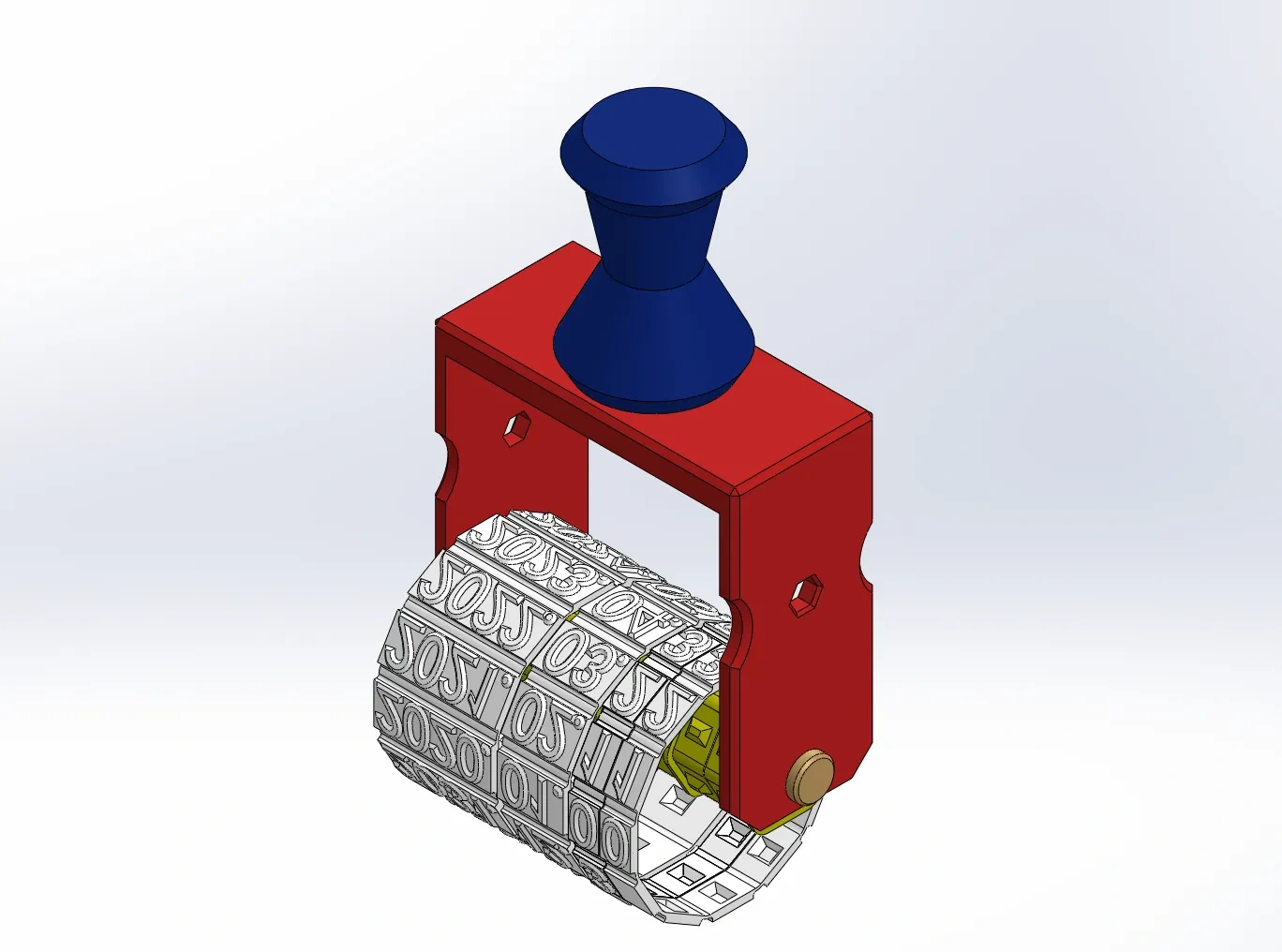

5. Use elastic tension to thread the top ratchet assembly through the date wheels, then carefully snap it into place.

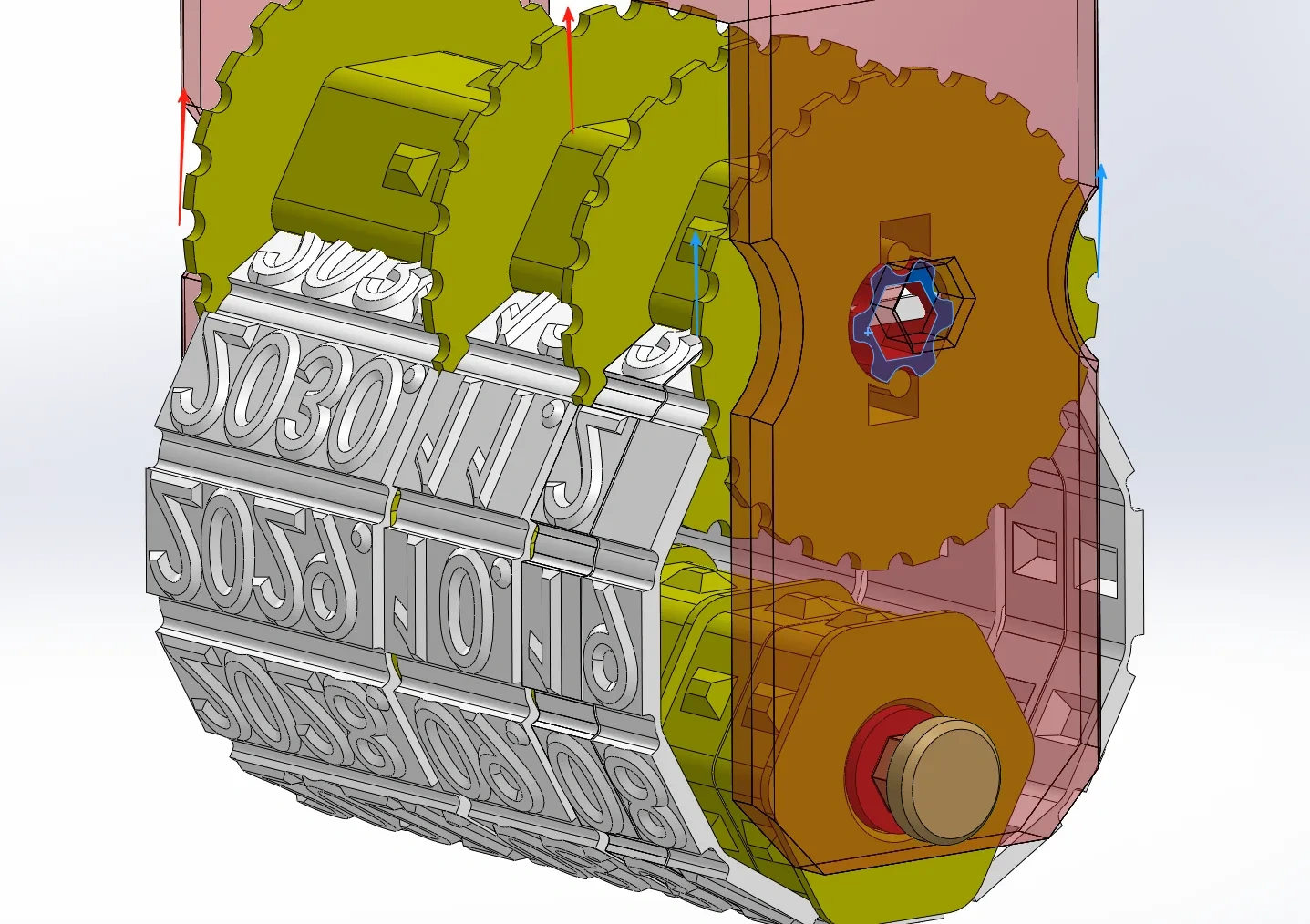

6. Due to structural deformation and elastic forces, the top ratchet assembly may not fit smoothly into place at first. To ensure a secure fit, start by bending one side of the assembly slightly and inserting the fixing pin for a snug, tight connection.

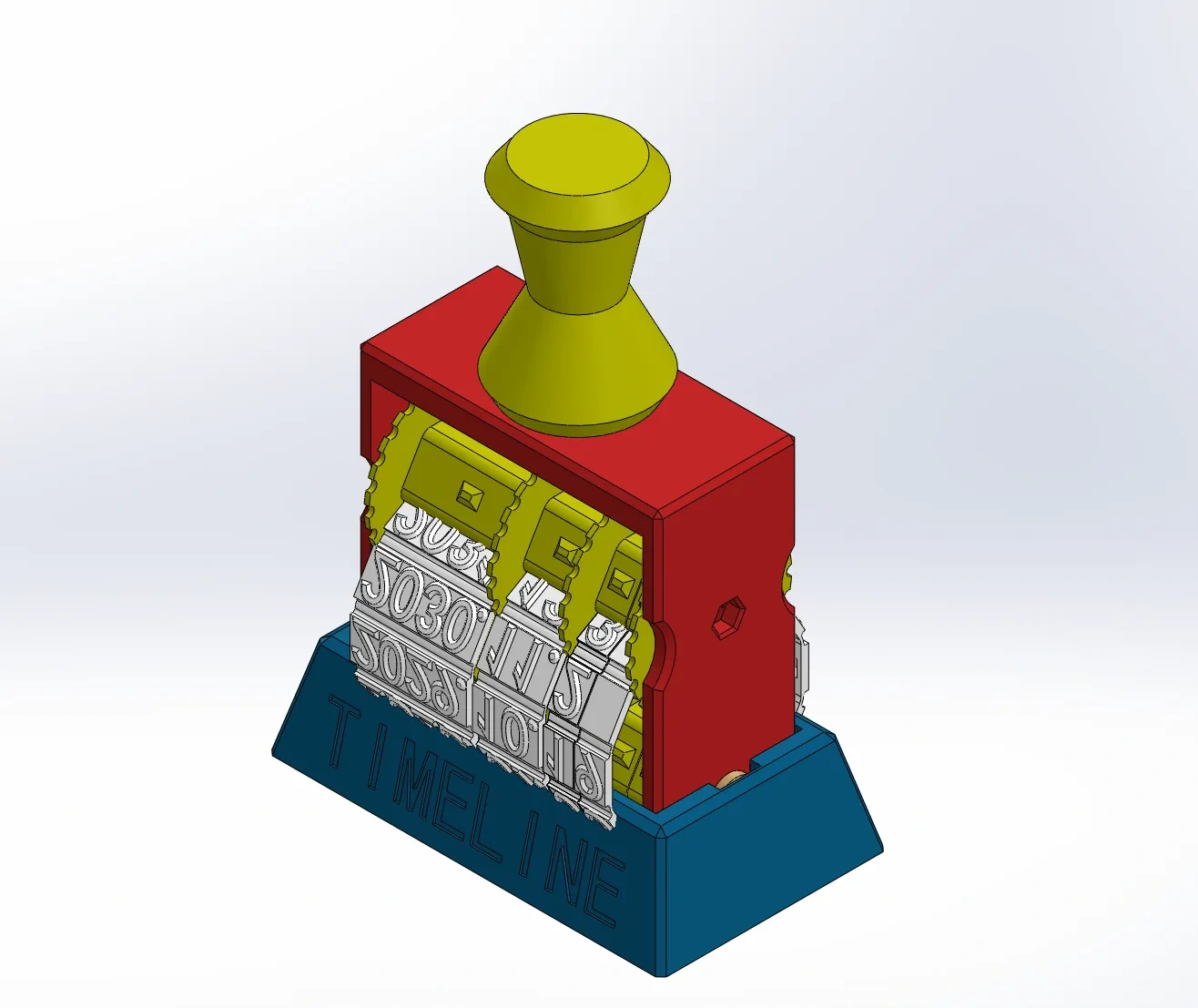

7. Final Installation Diagram
