Wood Lathe Indexer
Print Profile(1)
  • 0.25mm layer, 10 walls, 15% infill

    1-disc

    PETG

    Designer

0

1

29

3

Released 2025-09-16
Details
Files(89)
Makes & Comments (0)

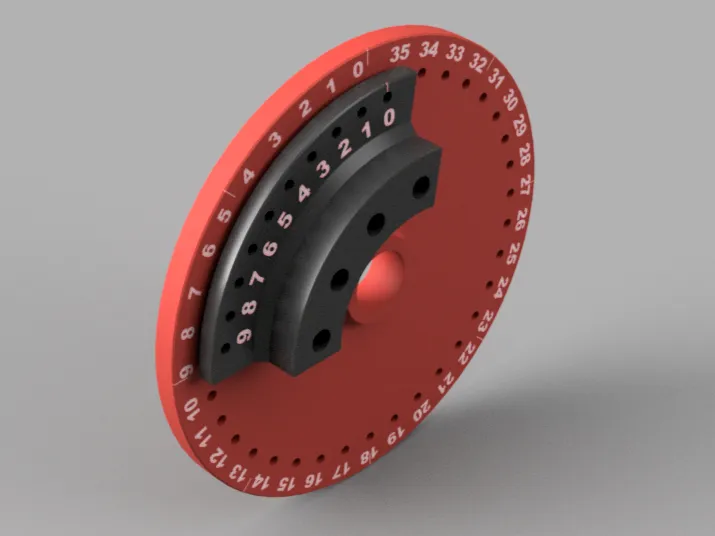

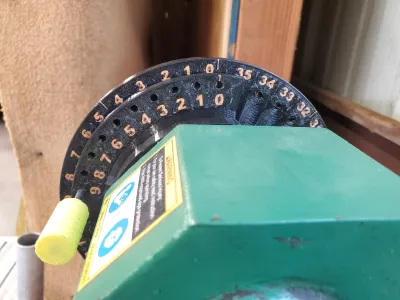

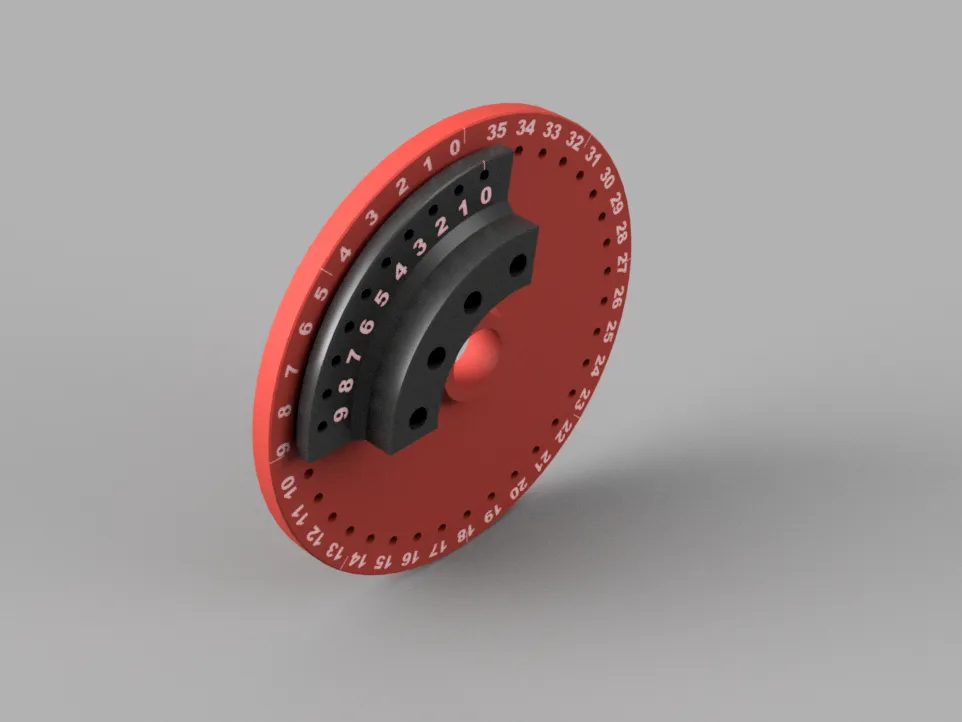

This design is my lathe indexer for a 7x10 wood lathe. This allows you to position objects to a set angle of rotation to work on. This is completely useable for a wood lathe as long as the forces on the work piece are reasonable. Need to drill holes every few degrees on a wooden clock face? This is the tool you need. You can set the object to any whole degree. The example real life picture is set to 359 degrees (35 + 9). Surprisingly accurate for a couple of pieces of plastic.

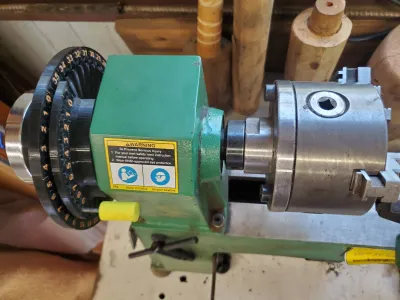

Mounting this will require you to drill and tap holes into the head of your wood lathe. I used #10 screws. The four mounting holes have a little wiggle room to get the position just right in case your drilled hole is off a little.



The faceplate is inserted between the outer bearing face and the spindle wheel/handle using friction on the 1inch screw threads of the spindle. I didn't feel like it needed a set screw, and there is not enough room for a set screw without drilling through the full diameter of the face place.



This makes your cheap wood lathe a precision clamping machine! Just be sure to remove the pin before spinning up the lathe! I would print the handle in a bright color!
