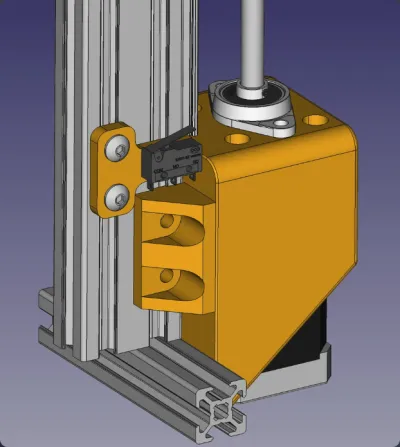

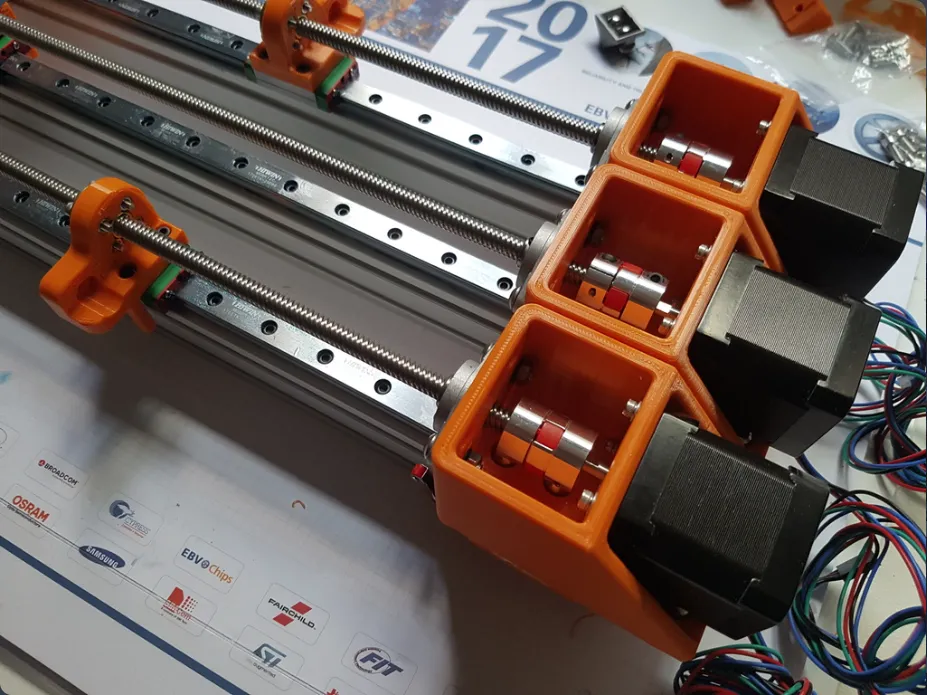

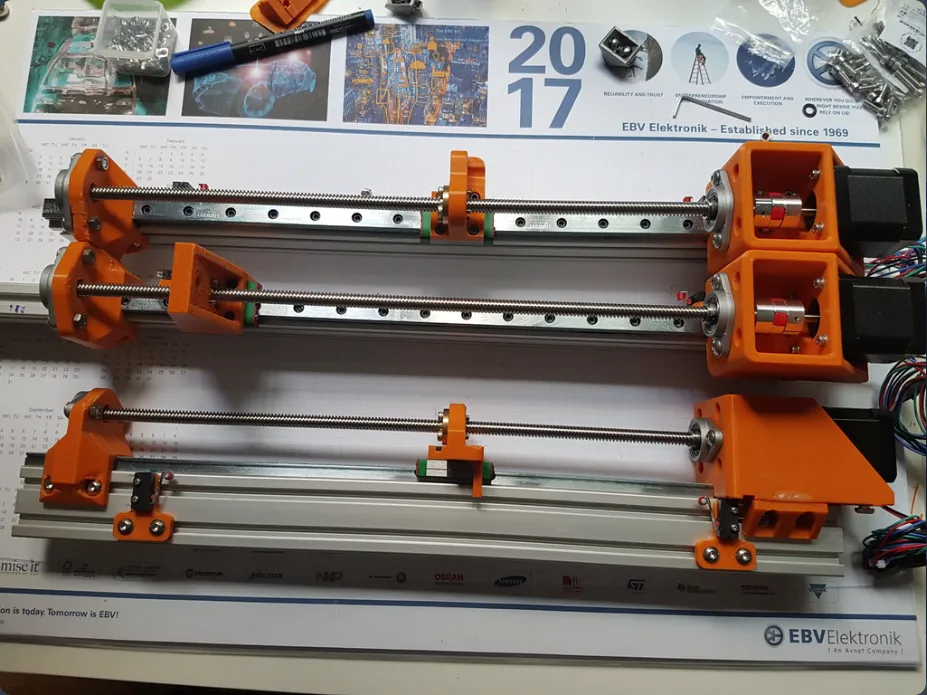

Modification of the Z motor mounts of the BLV MGN cube printer so the weight of the bed is not resting directly on the stepper motors.
Important note: My BLV mgn build is heavily modified, I didn't try these parts in a standard BLV build. Be sure to check on a CAD program the parts will work with your specific build before printing and modify them in case is necessary.
The parts are designed with FreeCAD, the original file is included in case you need to make modification
Originality of the Model
The author declares that this work is their personally shared model
This model is licensed under the following terms:
Credit must be given to the creator
Models(11)
- Insert-003.stl
0.67 KB
2025-07-18
- Insert-002.stl
0.67 KB
2025-07-18
- EndStop-Holder.stl
32.11 KB
2025-07-18
- Insert-001.stl
0.67 KB
2025-07-18
- Z-Motor-Mount-Base.stl
244.13 KB
2025-07-18
- Z-Motor-Mount-Lateral.stl
18.25 KB
2025-07-18
- Z-nut-C.stl
93.25 KB
2025-07-18
- Z-Motor-Mount-Top.stl
67.56 KB
2025-07-18
- Z-Nut-R.stl
132.89 KB
2025-07-18
- Z-Nut-L.stl
132.89 KB
2025-07-18
- Z-Screw-Assembly.FCStd
3.42 MB
2025-07-18
