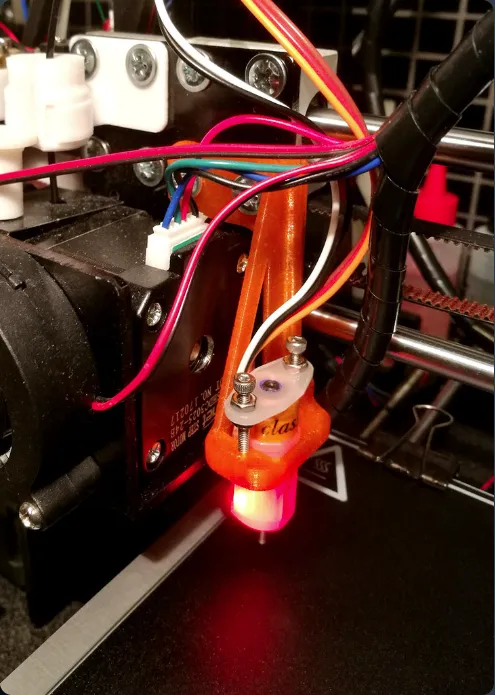

I made this bracket because all the brackets I find on the www places the sensor either in front of or behind the print nozzle.
This does not work for me since I attach my glass plate with bulldog clips, for example; if the sensor is +40 in front of the print nozzle it crashes with the bulldog clips..
This bracket has an y offset at 0 so it will never move farther ahead or behind the print nozzle :-)
No crashing with the bulldog clips :-)
I use two M2.5x20 screws, and four nuts to secure the sensor.
Use the BLTouch_83_Spacer.stl to adjust the correct height.
Offsets for this sensor bracket:
X_PROBE_OFFSET_FROM_EXTRUDER +60
Y_PROBE_OFFSET_FROM_EXTRUDER 0
The boundaries for probing (where the probe can reach).
LEFT_PROBE_BED_POSITION 27
RIGHT_PROBE_BED_POSITION 195
FRONT_PROBE_BED_POSITION 20
BACK_PROBE_BED_POSITION 190
