3018 CNC Corner Clamp
Print Profile(0)

  • Earn points by adding print configurations

0

0

21

8

Released 2025-07-17
Details
Files(3)
Makes & Comments (0)

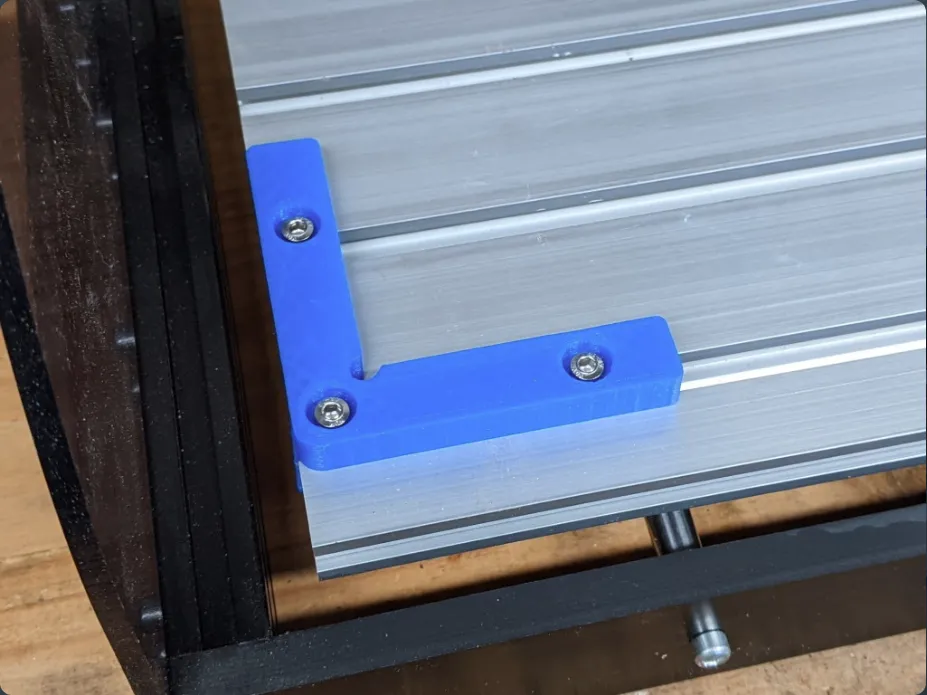

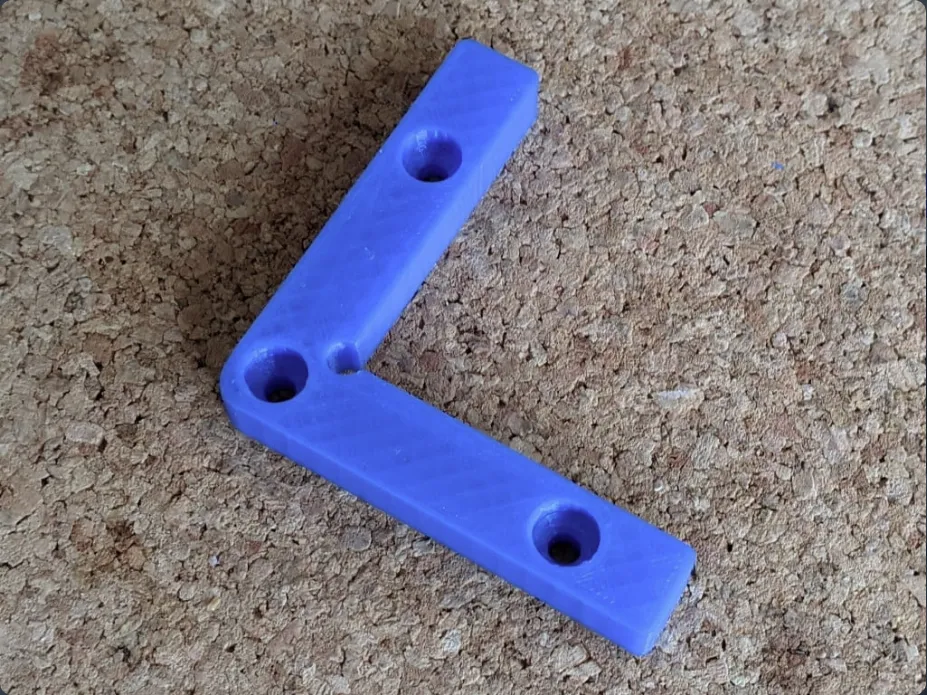

This is a corner clamp designed to fit the 3018 CNC mill / engraver. Secures with 3x M4 x 14mm screws. Includes 3D printable M4 T-Nut which accepts a regular M4 nut. The nut is designed to be a snug fit (the hexagonal recess is 7mm AF) - simply tighten a screw to pull the nut into the printed part. The parts are designed to print easily without supports.

Originality of the Model

The author declares that this work is their personally shared model

Original creator:
peaberry
Reprint source:https://www.thingiverse.com/thing:4830233

This model is licensed under the following terms:

Credit must be given to the creator

Models(3)

  • bed_origin.skp

    661.38 KB

    2025-07-04

  • tnut.stl

    12.19 KB

    2025-07-04

  • corner.stl

    41.49 KB

    2025-07-04
