Corsi-Rosenthal furnace filter corner clips
Print Profile(0)
5
2
Released 2025-07-17

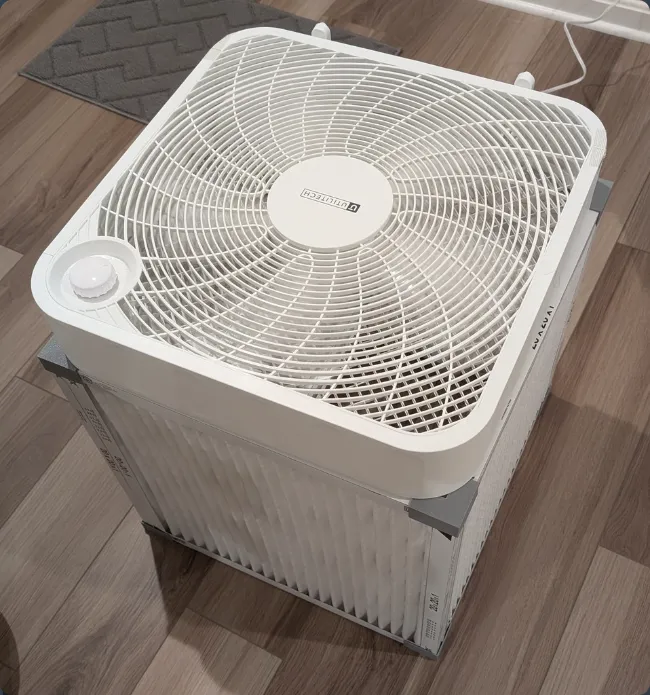

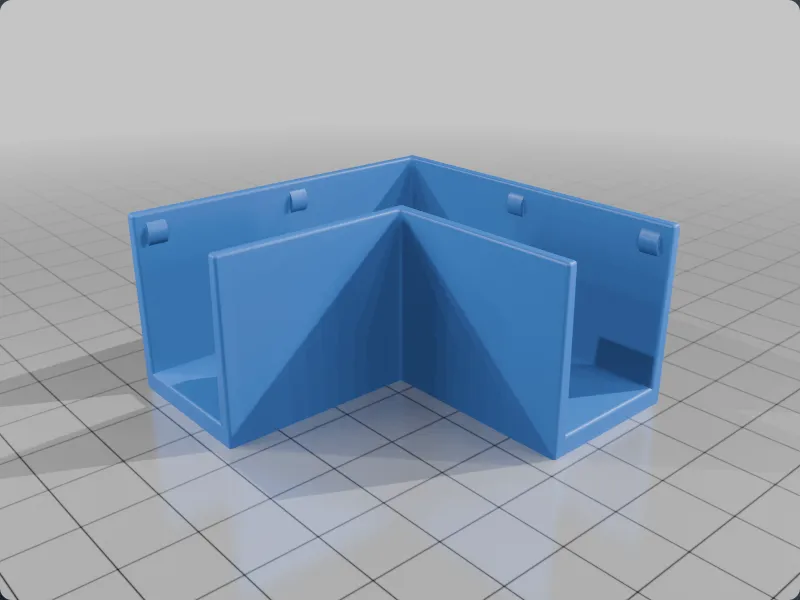

These clips are for putting together a 20x20x1 4 filter Corsi-Rosenthal box. The clips have a bit of a draft and rounded edges to make them easier to attach. I'm using these with HDX filters which tend to be a bit larger than their advertised .75 inches.
Originality of the Model
The author declares that this work is their personally shared model
Original creator:
OqOXtqzAvgzz8Ea
Reprint source:https://www.thingiverse.com/thing:6864072
This model is licensed under the following terms:
Credit must be given to the creator
Models(1)
furnace_filter_20x20x1_corner_clips.stl'%3e%3cpath%20id='Vector'%20d='M13.6663%201.33331H2.33301C1.78072%201.33331%201.33301%201.78103%201.33301%202.33331V13.6666C1.33301%2014.2189%201.78072%2014.6666%202.33301%2014.6666H13.6663C14.2186%2014.6666%2014.6663%2014.2189%2014.6663%2013.6666V2.33331C14.6663%201.78103%2014.2186%201.33331%2013.6663%201.33331Z'%20stroke='%23808080'%20stroke-linejoin='round'/%3e%3cpath%20id='Vector_2'%20d='M11.3333%201.33331V7.33331H5V1.33331H11.3333Z'%20stroke='%23808080'%20stroke-linejoin='round'/%3e%3cpath%20id='Vector_3'%20d='M9.66699%203.66669V5.00002'%20stroke='%23808080'%20stroke-linejoin='round'/%3e%3c/g%3e%3cdefs%3e%3cclipPath%20id='clip0_3212_168684'%3e%3crect%20width='16'%20height='16'%20fill='white'/%3e%3c/clipPath%3e%3c/defs%3e%3c/svg%3e)
1.60 MB
