Does it work well? No! Does it work enough? Barely!

This is a simple barely functional marble escapement designed in a few days for a high school engineering class. Do whatever you want to it, I dont care.

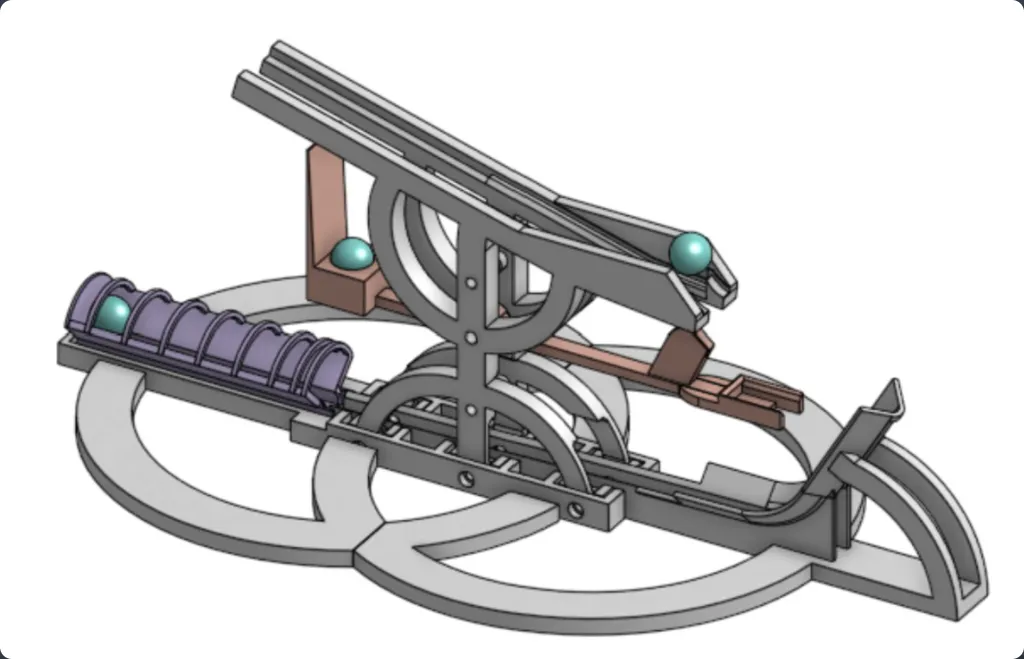

Assembly goes as follows: Combine the base & ramp, slide in both sides of the superstructure, place the arm in between them, screw them in with (i'm so sorry) M3.5 screws (vex V5 screws), and add 6 marbles. Add one marble into the arm's hole as a counterweight. You can use the Carraige to collect the marbles at the bottom and put them on the top, and the pick is to secure them in place.

Originality of the Model

The author declares that this work is their personally shared model

Original creator:
BobRossPlush

This model is licensed under the following terms:

No Copyright.

Models(7)

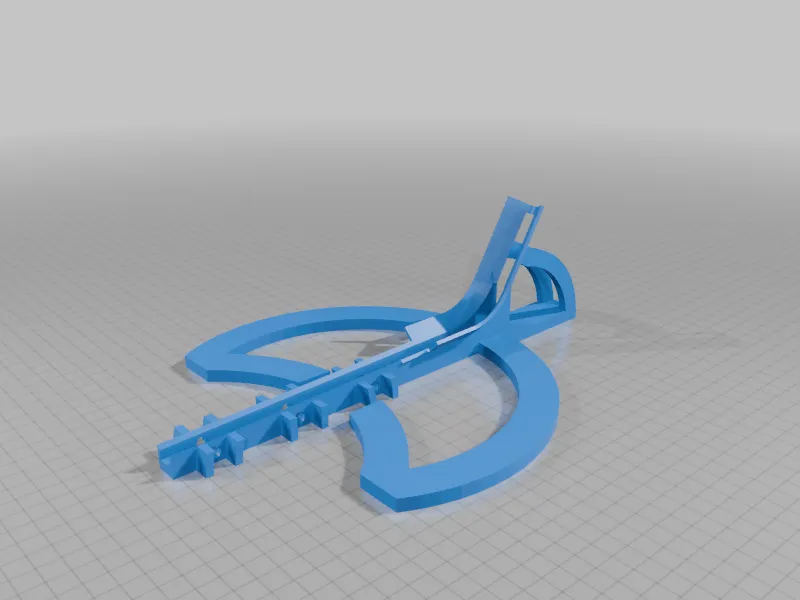

  • Base.stl
