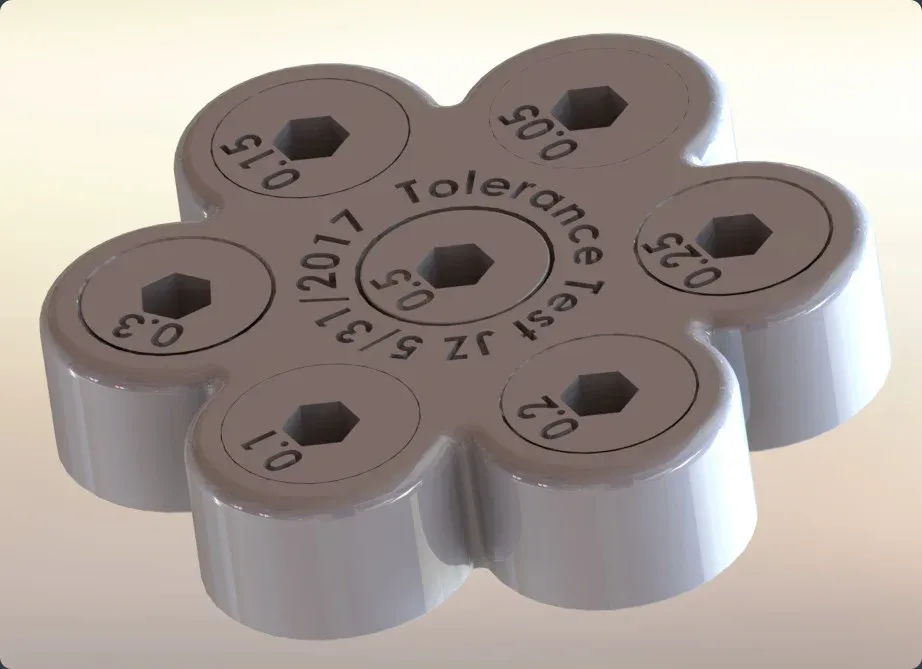

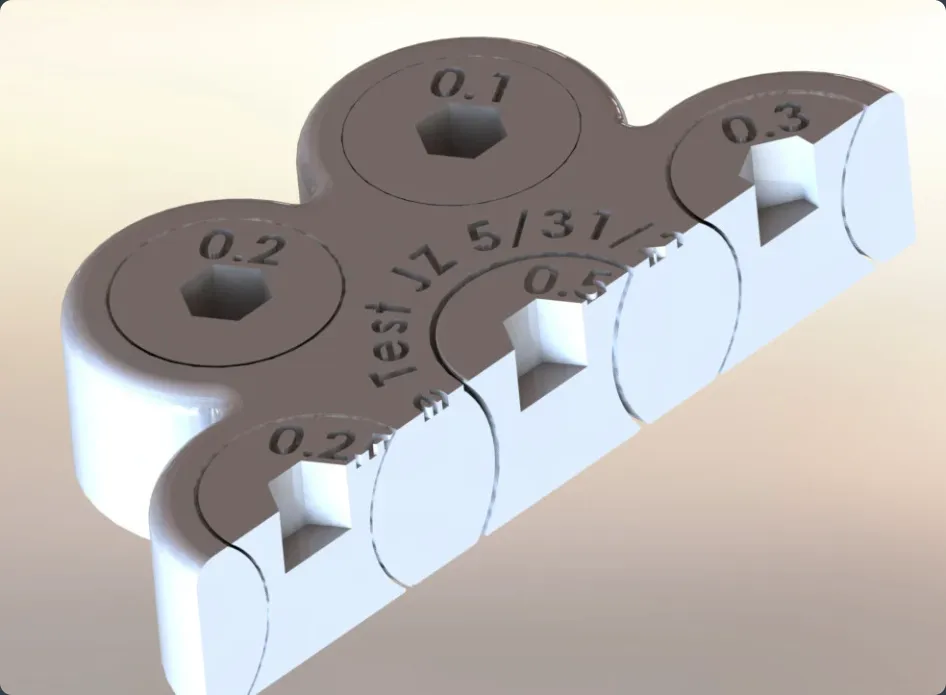

Figured I'd put a spin (not a fidget pun) on the tolerance tester Makers Muse put out. The print is a great idea and I almost downloaded his. But I like to design and wanted to try a curved socket. So I put a gentle curve at the tolerance interface. Plus I added a chamfer on the bottom to handle those pesky first layer squish issues. Crank interface is a 6mm hex and I've got a draw of those so I used it. I probably only need a few sizes for my .4 nozzle machines. Say .2, .15, .1, and the unicorn .05. But the .8 rig might be different.

Originality of the Model

The author declares that this work is their personally shared model

Original creator:
66tbirdJZ

This model is licensed under the following terms:

Credit must be given to the creator

Models(1)

  • Tolerance_tester.STL

    19.58 MB
