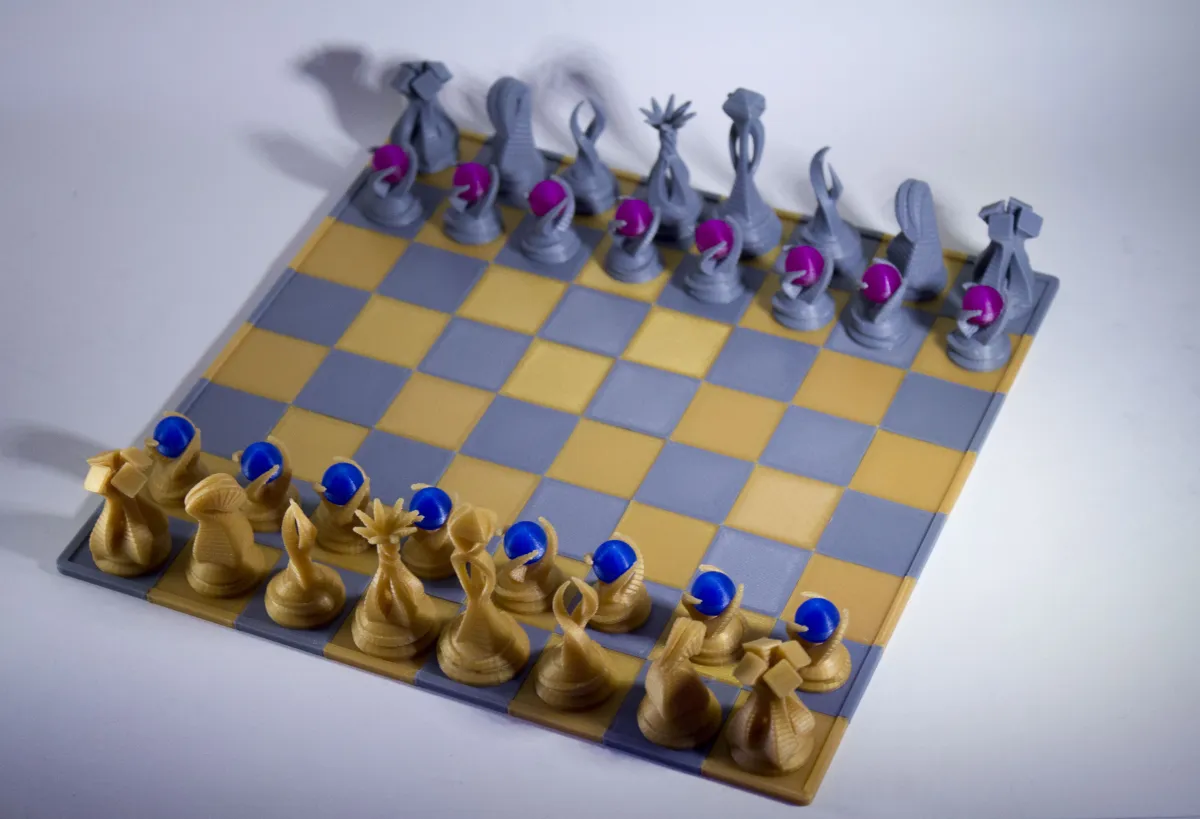

Summary

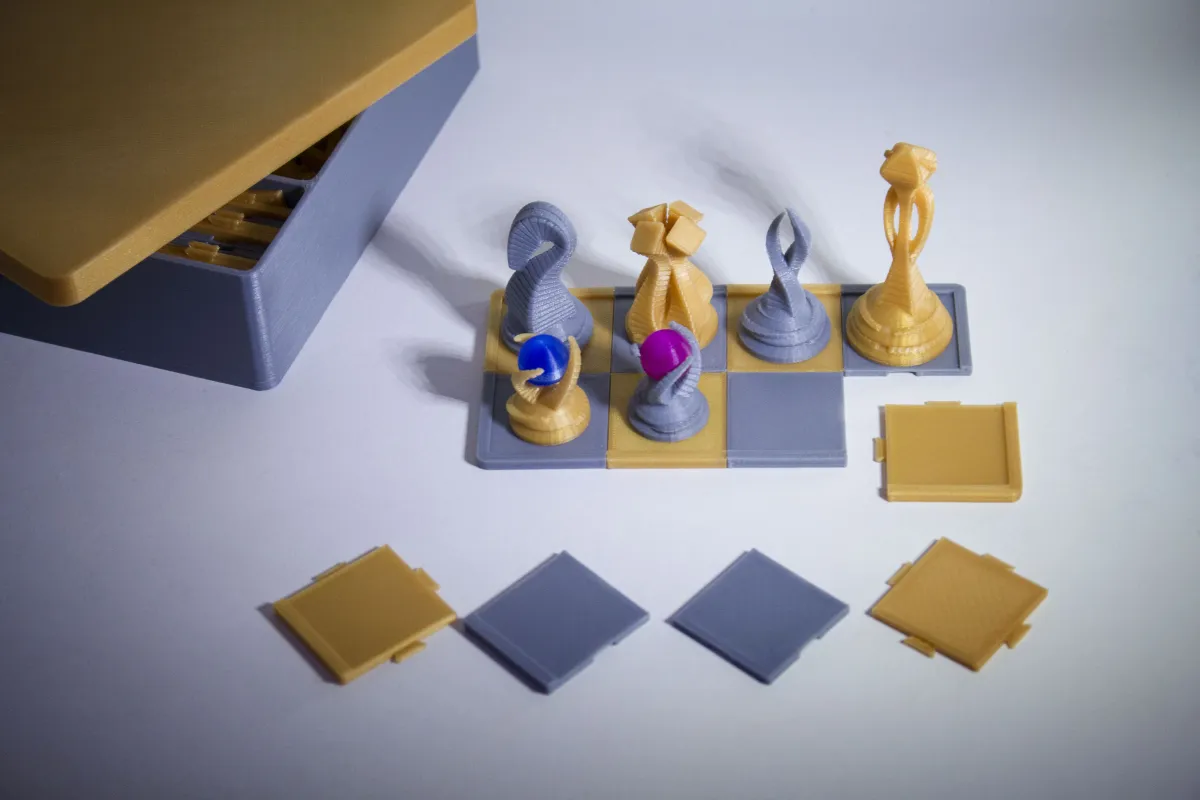

I liked the concept of Heikki_Hietala but I wanted to hide the plugs.
In the same idea as I needed to resize them, I made it customizable.
Provided STLs are 30mm sides.
See also Chess Set Box (not a customizer!)
and
Chess Set Credit : Alien Chess Set from ethanjurman
Edit 02/2017
I added a tolerance value for the "pegs" in the customizer and a test part (I should have do it much earlier...sorry)
Instructions
For a complete chess board game you will need to print :
-2 times "Corner Color 01"
-2 times "Corner Color 02"
-12 times "Edge Color 01"
-12 times "Edge Color 02"
-18 times "Center Color 01"
-18 times "Center Color 02"
Originality of the Model
The author declares that this work is their personally shared model
This model is licensed under the following terms:
Credit must be given to the creator
Models(8)
ChessBoard_CenterColor01.stl11.46 KB
2025-03-18
ChessBoard_002.scad3.17 KB
2025-03-18
ChessBoard_CenterColor02.stl12.26 KB
2025-03-18
ChessBoard_CornerColor02.stl21.37 KB
2025-03-18
ChessBoard_CornerColor01.stl20.98 KB
2025-03-18
ChessBoard_EdgeColor01.stl10.12 KB
2025-03-18
ChessBoard_EdgeColor02.stl10.70 KB
2025-03-18
ChessBoard_TestPart.stl8.66 KB
2025-03-18
