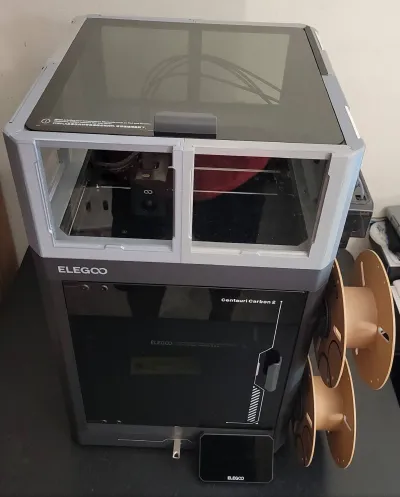

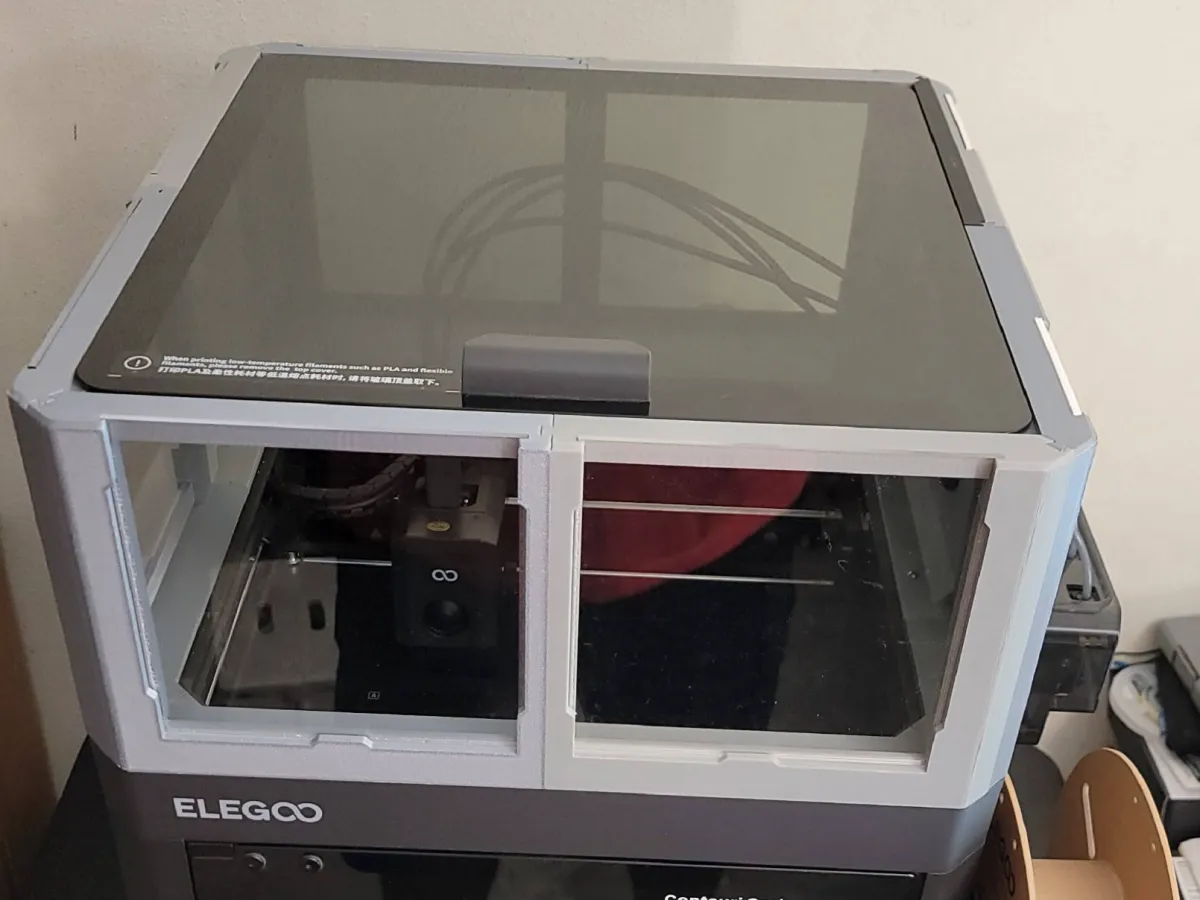

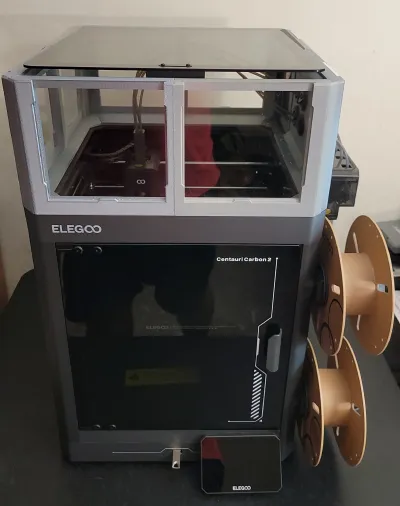

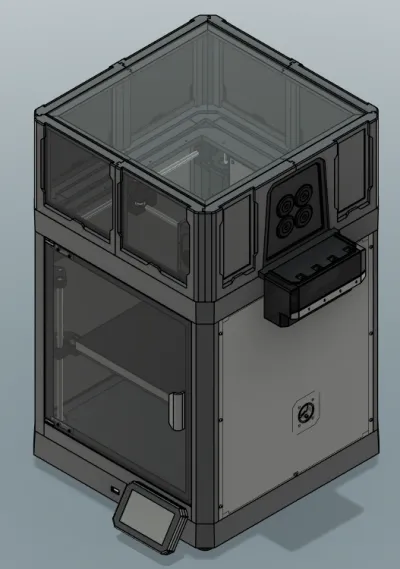

I present you a new top cover for the Centauri Carbon 1 w/Canvas! My design is shorter, only 172mm tall, while still allowing full motion. The stock PTFE tubes length has been shortened by ~70-75mm. The Canvas has been relocated lower in order to help make this cover as short as it is. It now sits flush with the top of the printer while still allowing usage of the spool holders. If you are like me a print from your filament dryer or dry box then you will not be required to relocated the number 1 and number 4 spool holders. There are 2 additional items required to complete this print for the Centauri Carbon. First is the pass through adapter linked below, second is the 6"x6"x1/8" Acrylic panels linked in the materials section. This upload includes my full design along with printable 3"x6" windows for the smaller Canvas side windows and the larger 6"x6" windows along the other sides of this top cover. You can also use the Centauri Carbon 1's top glass if you want.

Also if you have a Centauri Carbon 2 I also designed the same shorter Top Cover for the Centauri Carbon 2 w/Canvas so checkout my other files!

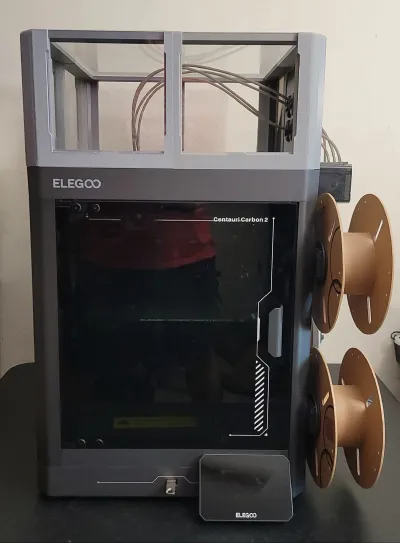

UPDATE 6/6/2026!!! I have uploaded an addition file for this project. The CC1 required a spacer for the canvas mount to sit flush properly. That spacer file is now included. See updated images. This spacer sits on top of the existing foam padding. I just cut out the holes in the padding for the bolt holes instead of fully replacing mine. This is not required on the CC2 version.

Can't wait to see peoples prints of this.

Happy printing!

 Please note that for the pass through ptfe fittings I used this model from Ruedli on Printables.com:

www.printables.com/model/61689-pivoting-panel-pass-throughs-for-4mm-ptfe-tube
