Bracket to hold air assist pump for the K40 laser cutter
Print Profile(0)

  • Earn points by adding print configurations

0

0

6

1

Released 2026-02-11
Details
Files(2)
Makes & Comments (0)

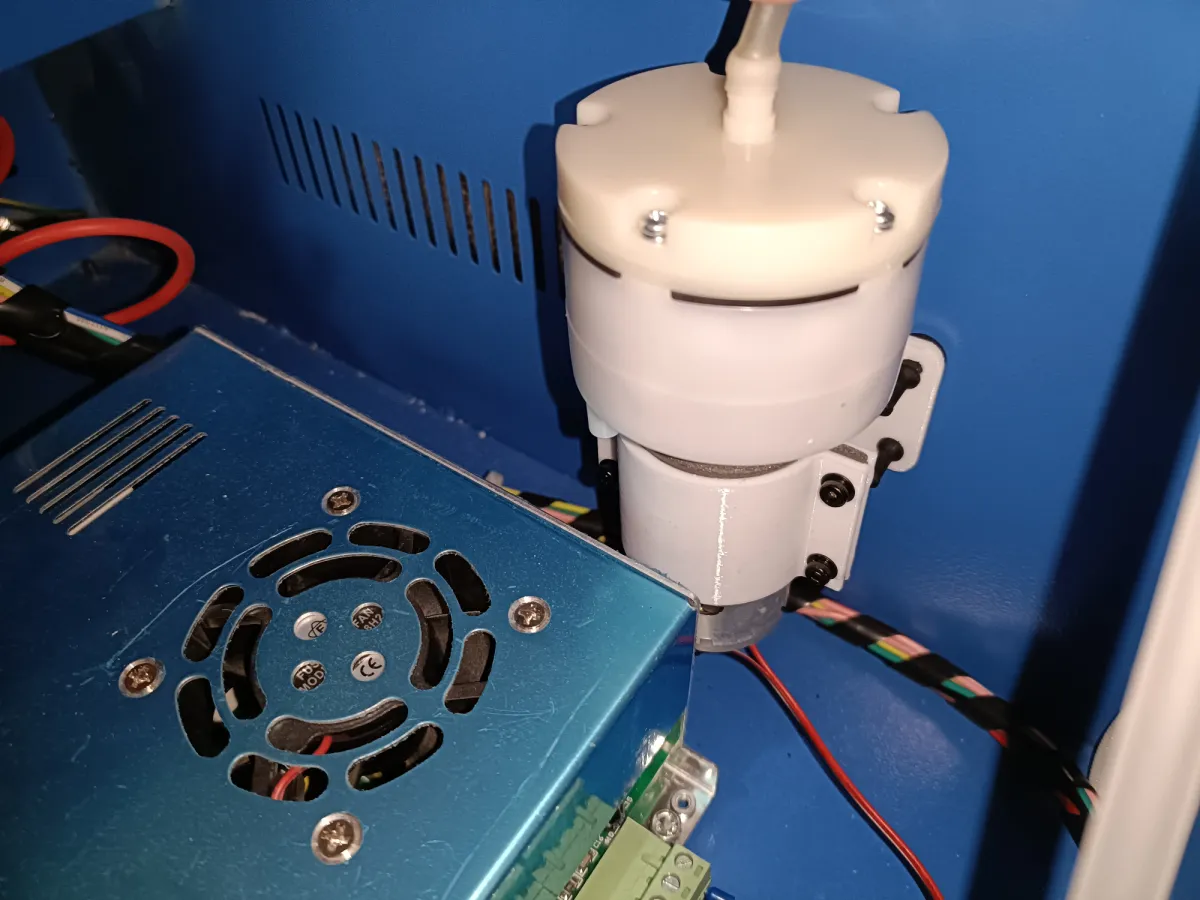

This bracket allows you to mount an air assist pump (~36mm diameter, https://s.click.aliexpress.com/e/_c4KHlqmx) to the side vents of the K40 CO2 laser cutter.

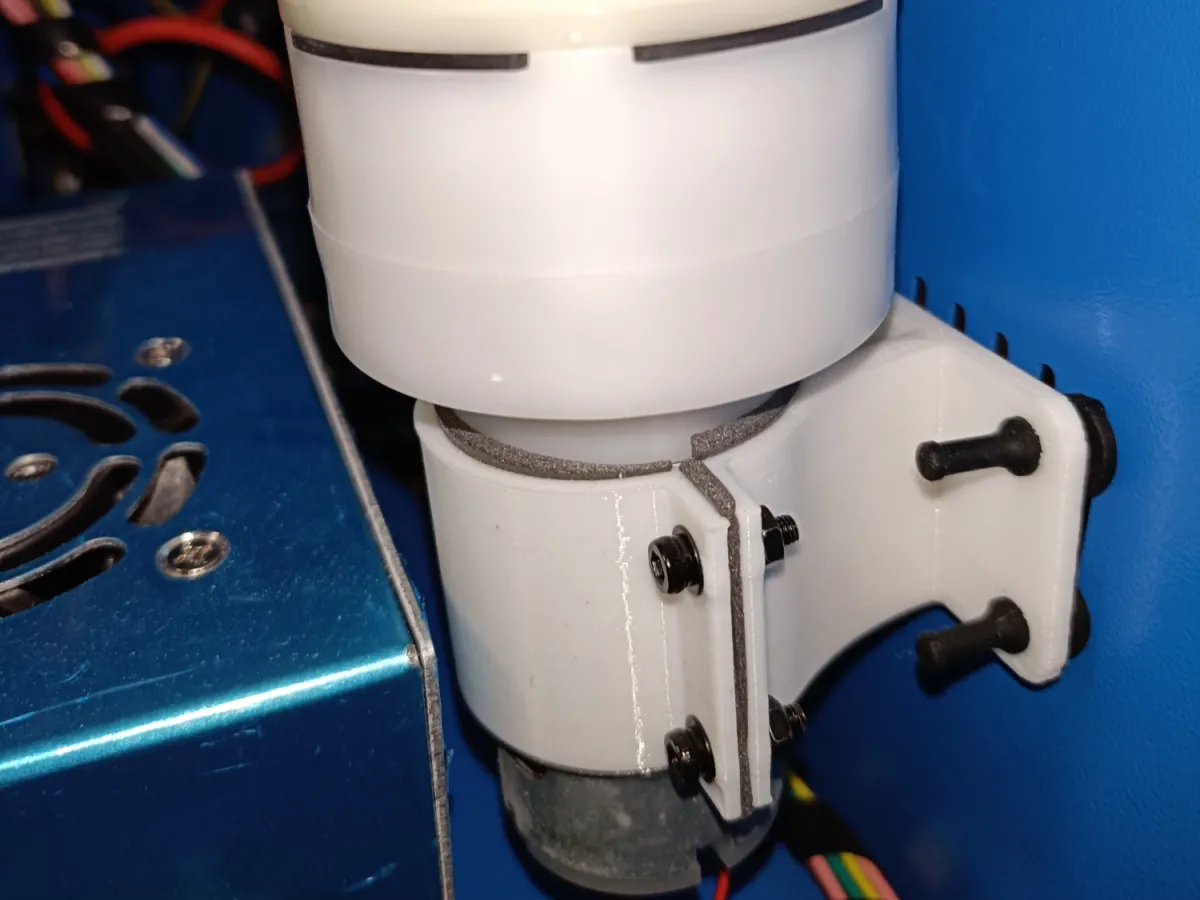

It is designed to be used with foam tape between the bracket and the motor. You can mount it with fan rubber feet (https://s.click.aliexpress.com/e/_c43RKXyx) to the side vents of the k40.



Requires 2x 10mm M3 screws and nuts.

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    10mm long M3 screws
    2
  • 2
    M3 nuts
    2
  • 3
    Rubber feet for fans
    4
    https://s.click.aliexpress.com/e/_c43RKXyx
  • 4
    Pump
    1
    https://s.click.aliexpress.com/e/_c4KHlqmx

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

No derivative works or remixes of this model allowed

Models(2)

  • model file image
    base.stlDesigner

    157.99 KB

    2026-05-07

  • model file image
    top.stlDesigner

    97.54 KB

    2026-05-07
