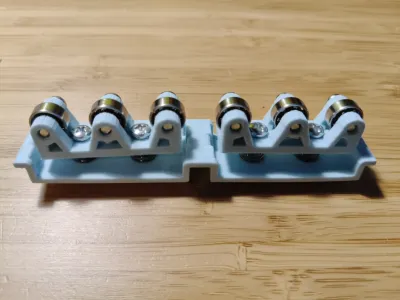

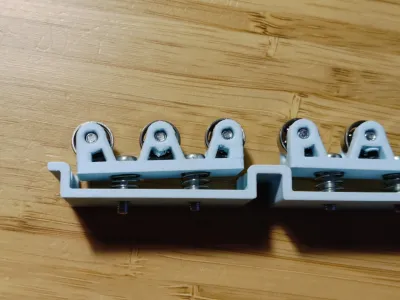

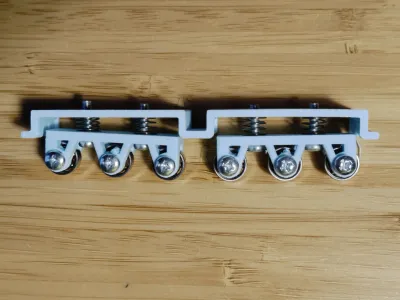

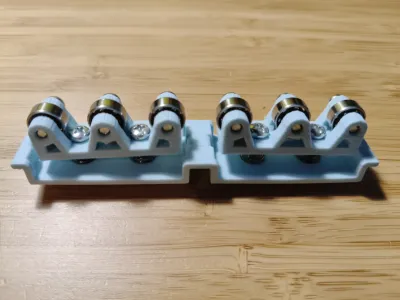

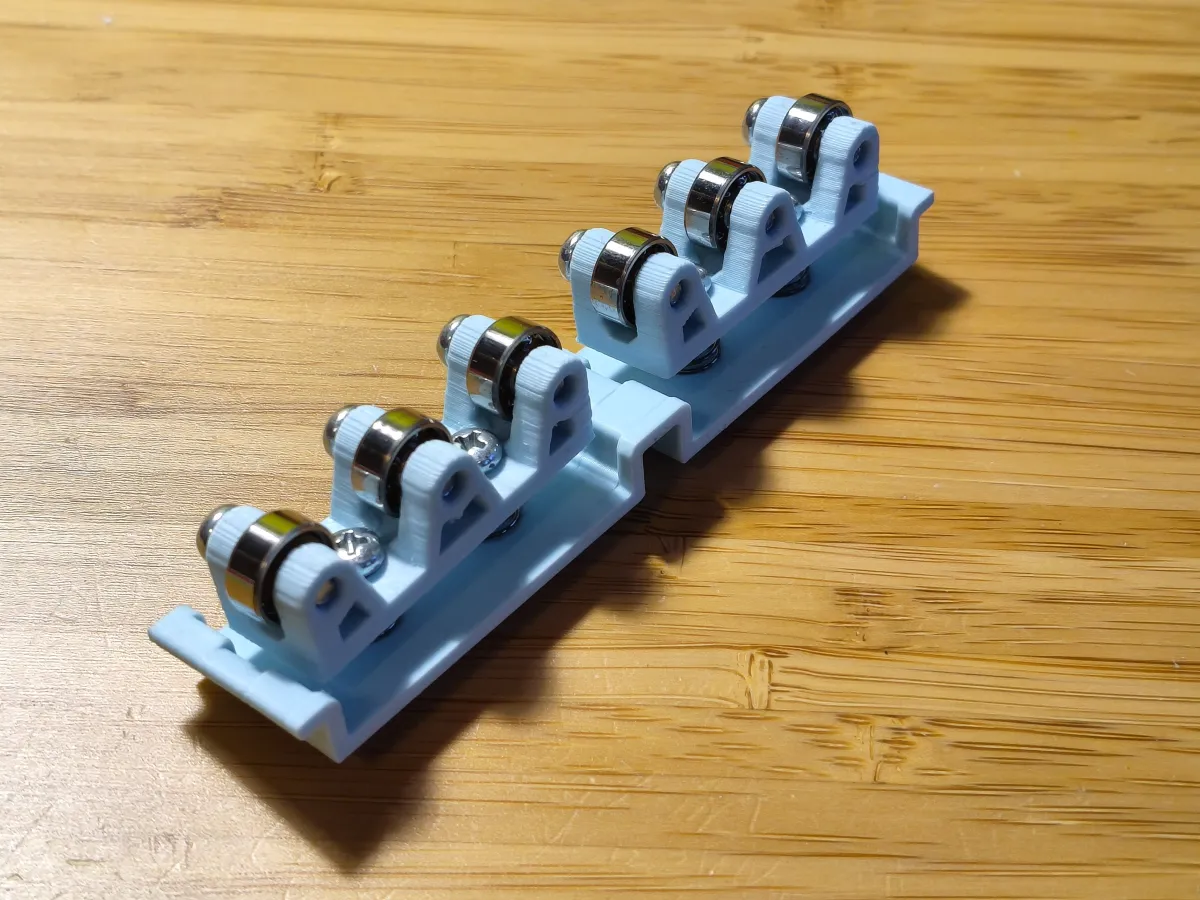

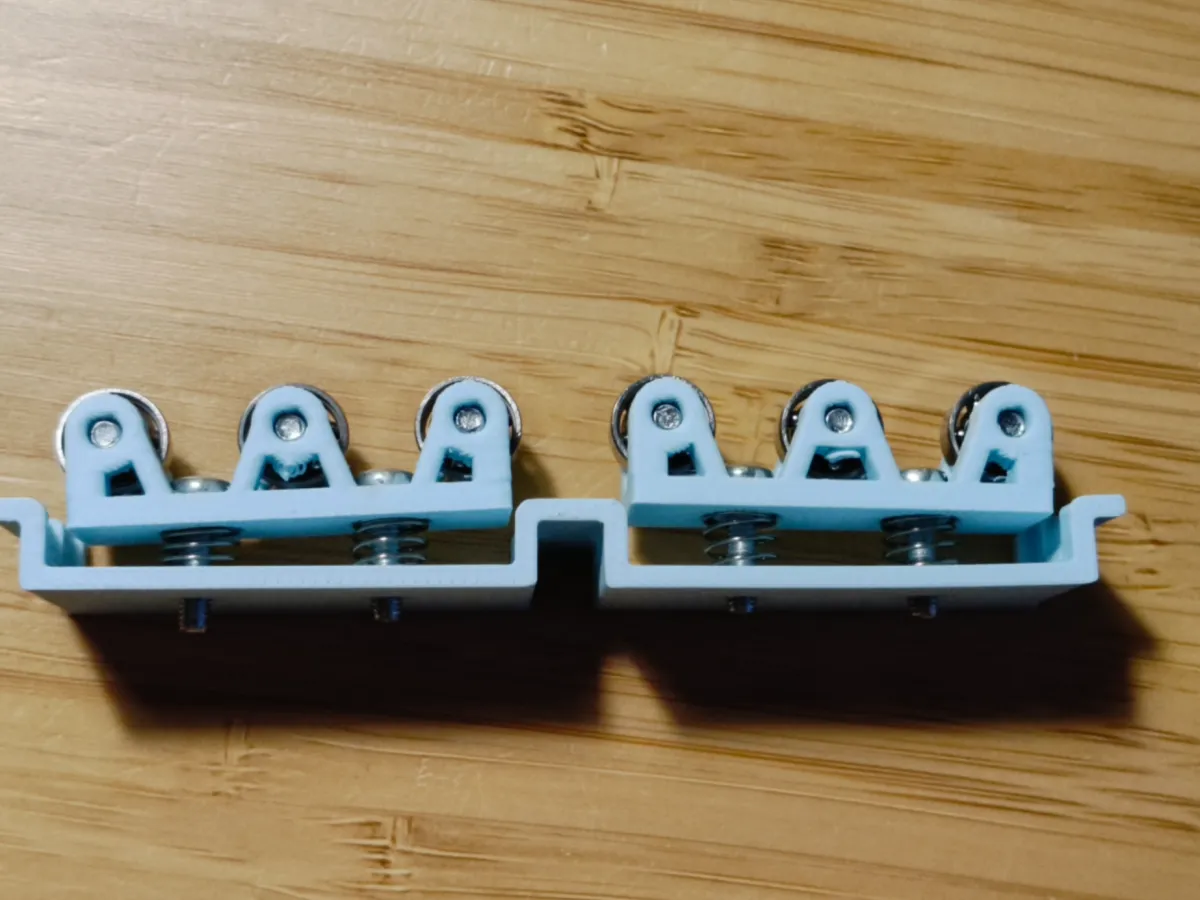

Double spring loaded bearings with spacer
Print Profile(1)
  • 0.2mm layer, 2 walls, 15% infill

    1-disc

    PLA

    Designer

0

0

6

0

Released 2026-02-06
Details
Files(3)
Makes & Comments (0)

Explore the world of compliant mechanisms with this fully functional double spring-loaded bearing with spacer! This model uses springs to provide tension. If you tighten the bolt, it will be lower and the bounce will be more powerful.

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    M3 12mm bolts
    10
  • 2
    ball bearings
    6
    3x10x4
  • 3
    compress springs
    4

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Models(3)

  • model file image
    double with spacer spring loaded bearings.3mfDesigner

    95.26 KB

    2026-02-04

  • model file image
    top double spring loaded bearings.stlDesigner

    124.30 KB

    2026-02-04

  • model file image
    base double spring loaded bearings.stlDesigner

    55.16 KB

    2026-02-04
