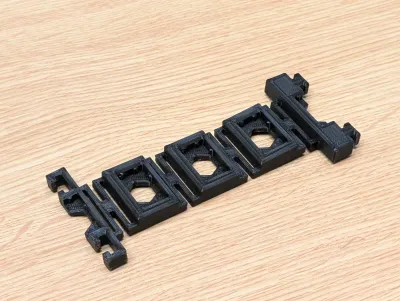

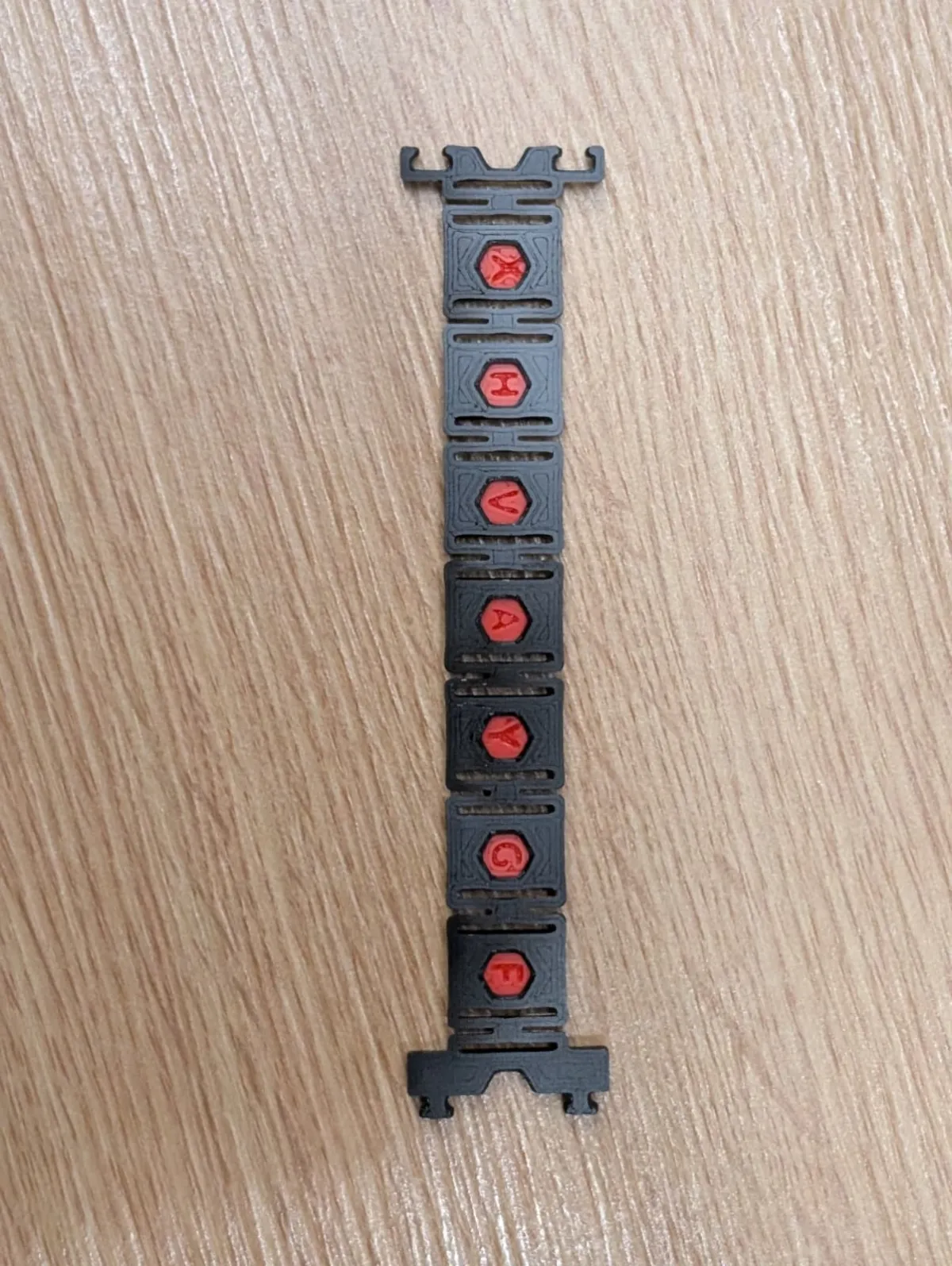

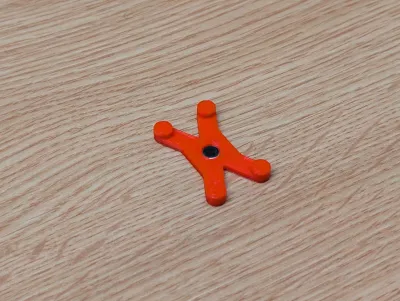

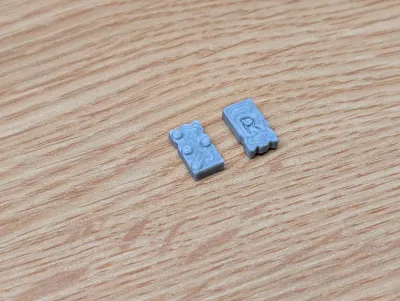

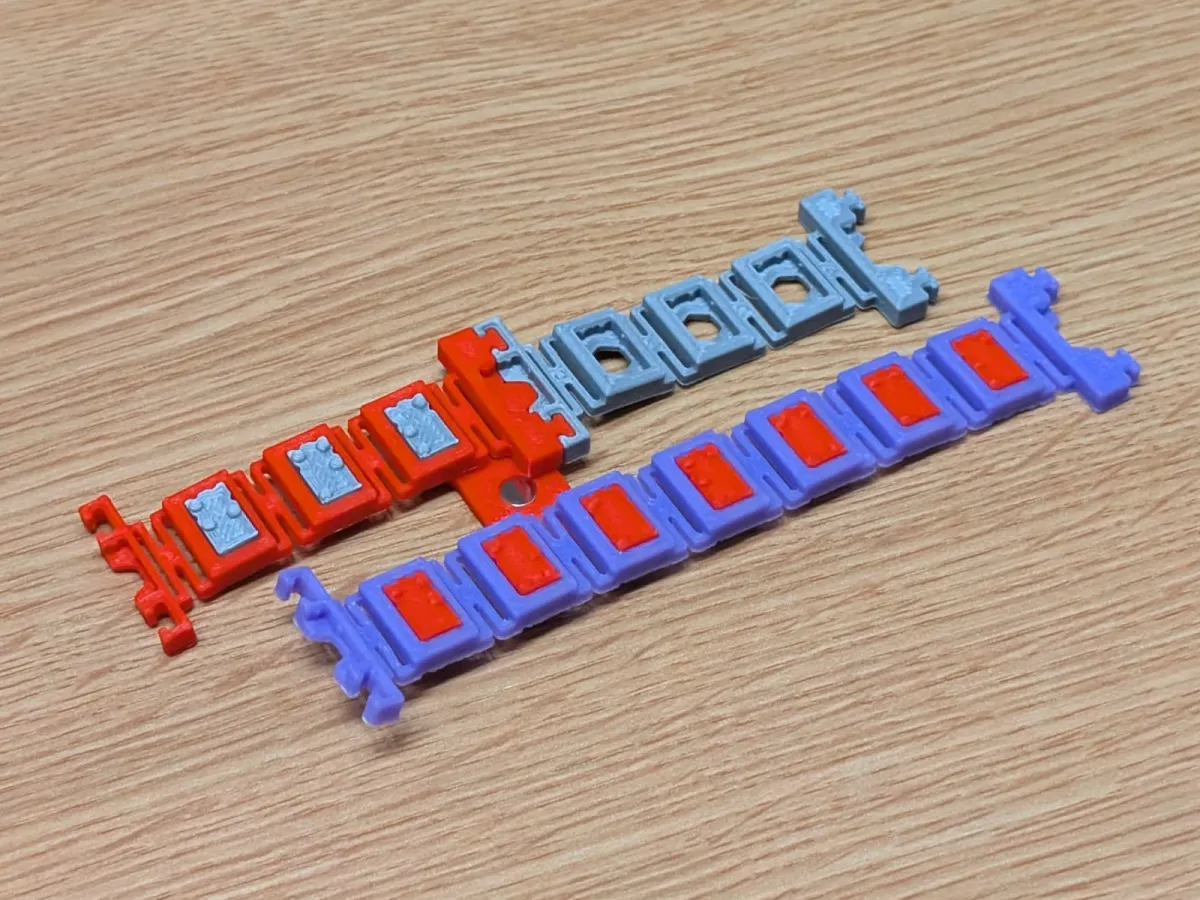

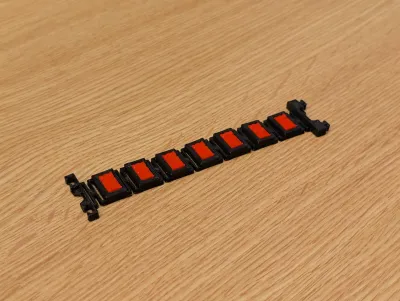

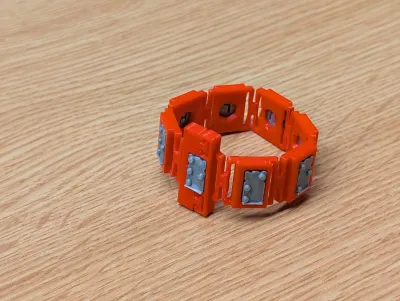

BrailleLink is a carefully engineered product designed to improve the practical use of braille communication, mainly by providing a simple way to label everyday objects. BrailleLink consists of three main components: braille brackets (available in 3-unit and 7-unit sizes), 26 braille letters and an additional symbol that represents a capital letter for sentence starters, and an x-shaped connector that links braille brackets either underneath or on top of other braille brackets. Each braille letter slots into the units of the braille brackets to form words. For words longer than three letters, 7-unit brackets are designed, and for even longer words or full sentences, the braille brackets can be attached to each other using the lock and key model mechanisms at the ends. If shorter words are required, some units can be left blank. Each braille unit has a hexagonal-shaped hole at the back, which allows the alphabet letters to be seen. Each letter is rotated 180 degrees for braille illiterate, so when the braille chain is flipped, it can be read normally from left to right. The holes at the back also provide slots to join braille brackets that fit the x-connectors. The main method of attaching these labels to surfaces is Blu Tack, which is easily available commercially; however, other attachment systems are being designed for better integration, as shown in the attachment section. The result is a labelling system for blind and visually impaired users, as well as for people who interact with these populations, to help identify everyday objects. In addition, it also serves as a learning aid for new braille learners.
Originality of the Model
The author declares that this work is their personally original model
This model is licensed under the following terms:
This work is licensed under a Standard Digital File License. Digital files have a strict non-commercial, personal use only license.
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital file or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including remixes of this object). You can not host these files on other digital platforms, web stores or cloud repositories. The objects may not be used in any way whatsoever in which you charge money, collect fees.
Models(32)
Bl V3 'P''.stepDesigner72.65 KB
2026-01-28
Bl V3 'Q''.stepDesigner89.40 KB
2026-01-28
Bl V3 'R''.stepDesigner75.07 KB
2026-01-28
Bl V3 'S''.stepDesigner95.38 KB
2026-01-28
Bl V3 'T''.stepDesigner54.05 KB
2026-01-28
Bl V3 'U''.stepDesigner68.09 KB
2026-01-28
Bl V3 'V''.stepDesigner56.31 KB
2026-01-28
Bl V3 'W''.stepDesigner73.92 KB
2026-01-28
Bl V3 'X''.stepDesigner62.24 KB
2026-01-28
Bl V3 'Y''.stepDesigner59.61 KB
2026-01-28
- Bl V3 'Z''.stepDesigner
57.00 KB
2026-01-28
- Bl V3 'A''.stepDesigner
57.23 KB
2026-01-28
- Bl V3 'B''.stepDesigner
88.97 KB
2026-01-28
- Bl V3 'C''.stepDesigner
73.07 KB
2026-01-28
- Bl V3 Capitaliser.stepDesigner
75.91 KB
2026-01-28
Bl V3 'D''.stepDesigner70.42 KB
2026-01-28
- Bl V3 'E''.stepDesigner
56.72 KB
2026-01-28
- Bl V3 'F''.stepDesigner
57.10 KB
2026-01-28
- Bl V3 'G''.stepDesigner
82.49 KB
2026-01-28
- Bl V3 'H''.stepDesigner
57.87 KB
2026-01-28
- Bl V3 'I''.stepDesigner
45.05 KB
2026-01-28
- Bl V3 'J''.stepDesigner
60.09 KB
2026-01-28
- Bl V3 'K''.stepDesigner
56.63 KB
2026-01-28
- BrailleBracket-Set7.stepDesigner
283.10 KB
2026-01-28
- Bl V3 'M''.stepDesigner
68.96 KB
2026-01-28
- Bl V3 'N''.stepDesigner
66.56 KB
2026-01-28
- Bl V3 'O''.stepDesigner
78.71 KB
2026-01-28
- (EDU)BrailleBracket-Set3.stepDesigner
276.86 KB
2026-01-28
- BrailleBracket-Set3.stlDesigner
114.14 KB
2026-01-28
- BrailleBracket-Set3.stepDesigner
280.71 KB
2026-01-28
- X-Connector.stepDesigner
42.74 KB
2026-01-28
- Clamp Connector.stepDesigner
84.06 KB
2026-01-28
View all(32)
