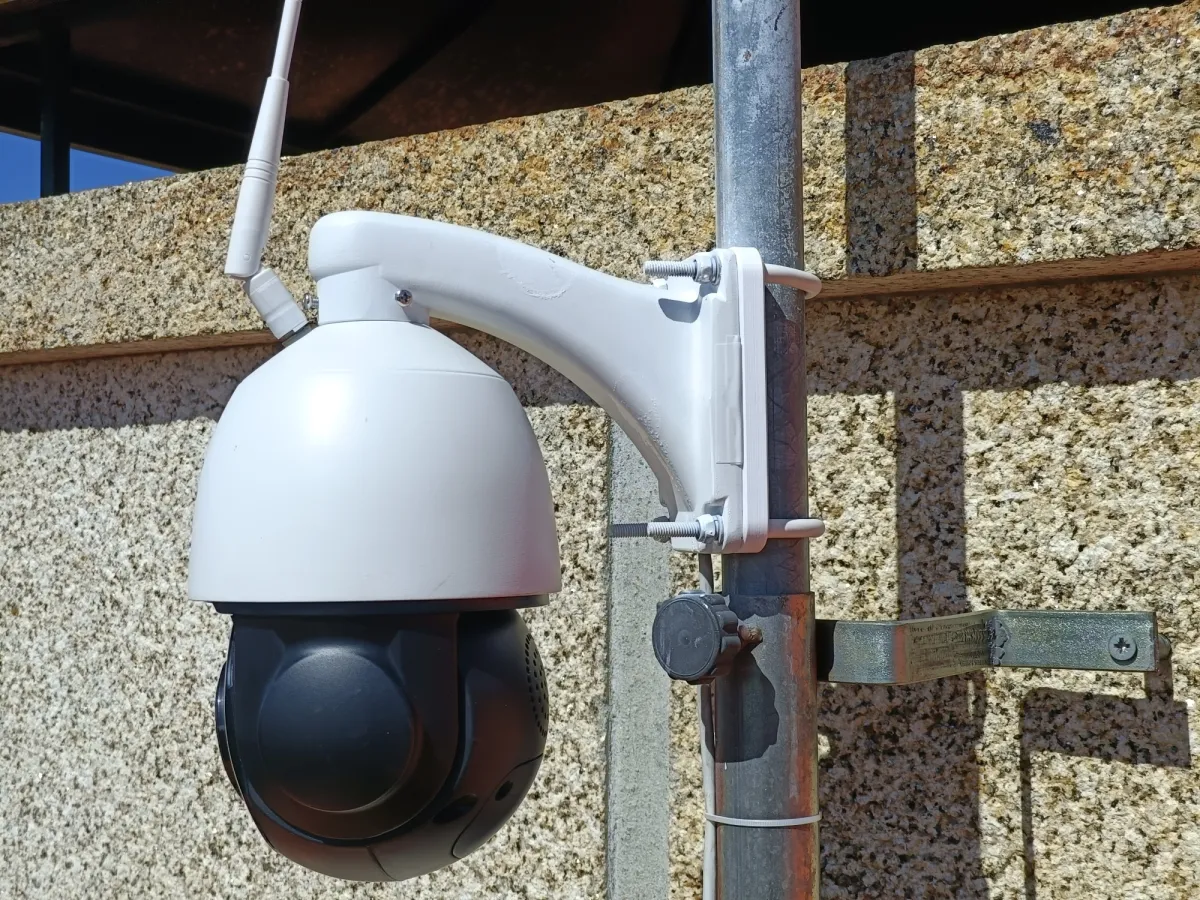

This is a bracket for mounting a PTZ IP camera to a 35 mm diameter pole. I already had a pole for a TV antenna so this was the easiest way I found to mount this camera. It should be compatible with multiple cameras. I know it is compatible with the Anran AR-92F and the Jennov P86HT55.

The holes on the bracket are 8 mm in diameter, which is slightly larger than the holes on the camera mount to provide some wiggle room. The hole spacing, measured center-to-center, is 62 × 96 mm.

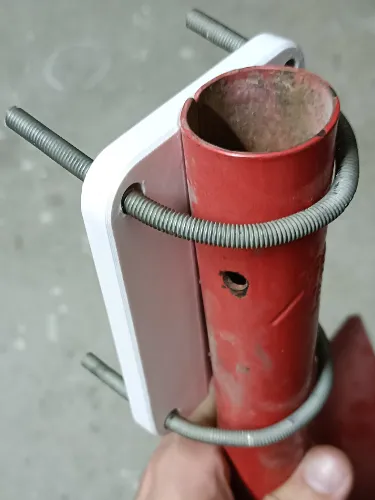

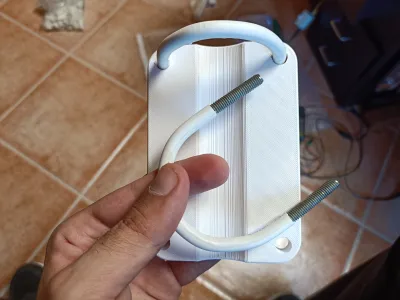

To mount the bracket to the pole, I used two pieces of M6 threaded rod (all-thread) and bent them into a U shape. I then used two pieces of white 10 mm heat-shrink tubing, such as https://s.click.aliexpress.com/e/_c3oq7utF or https://amzn.to/4xK2BBT (affiliate links), to cover the threaded sections around the bends. Besides protecting the pole from the threads, the heat-shrink tubing also provides additional grip and helps keep the bracket securely in place.
