Elegoo Centauri Carbon Canvas Relocation & Riser:

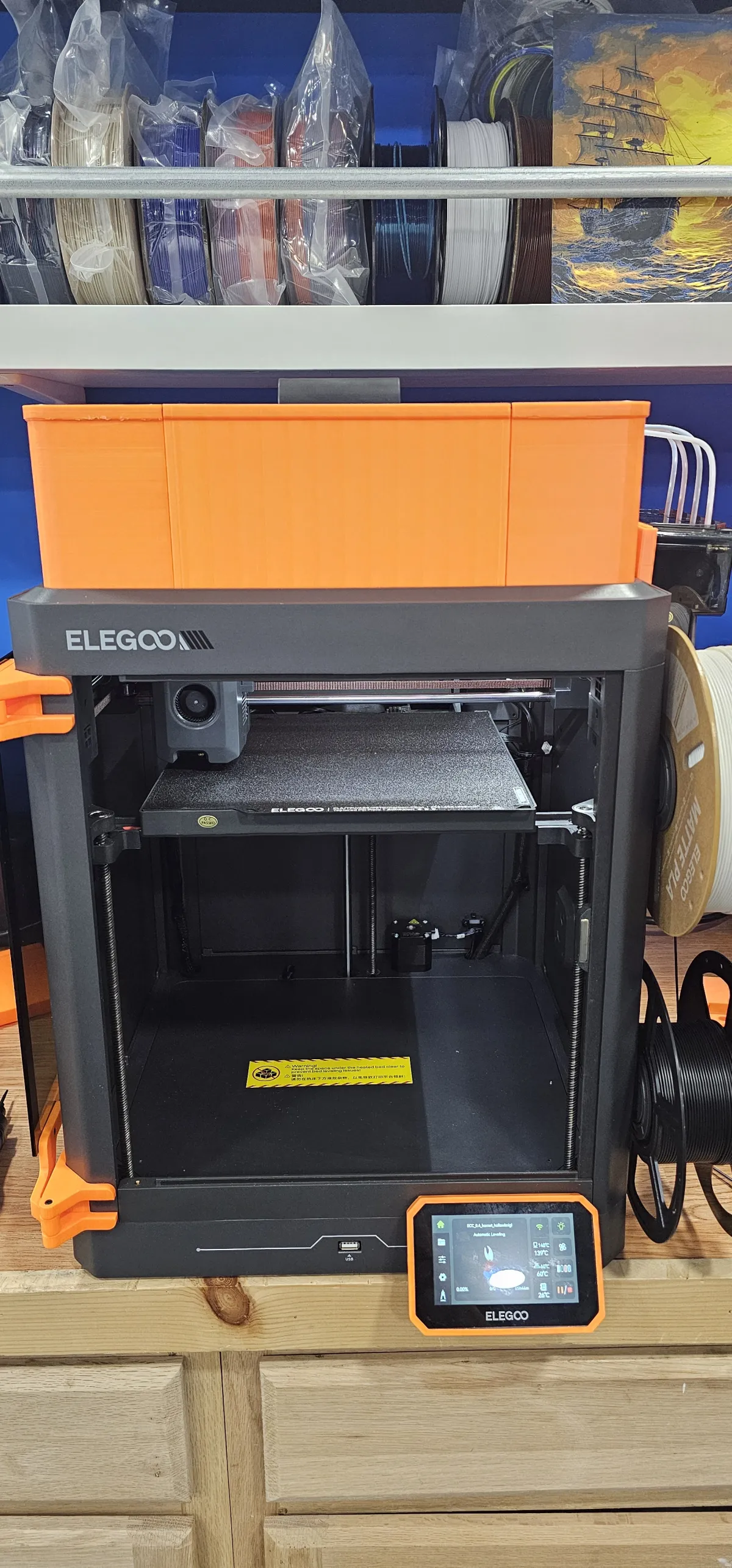

Riser Details:

• Accommodates the original glass cover

• Roughly ~100mm high vs the excessively tall Elegoo OEM Cover

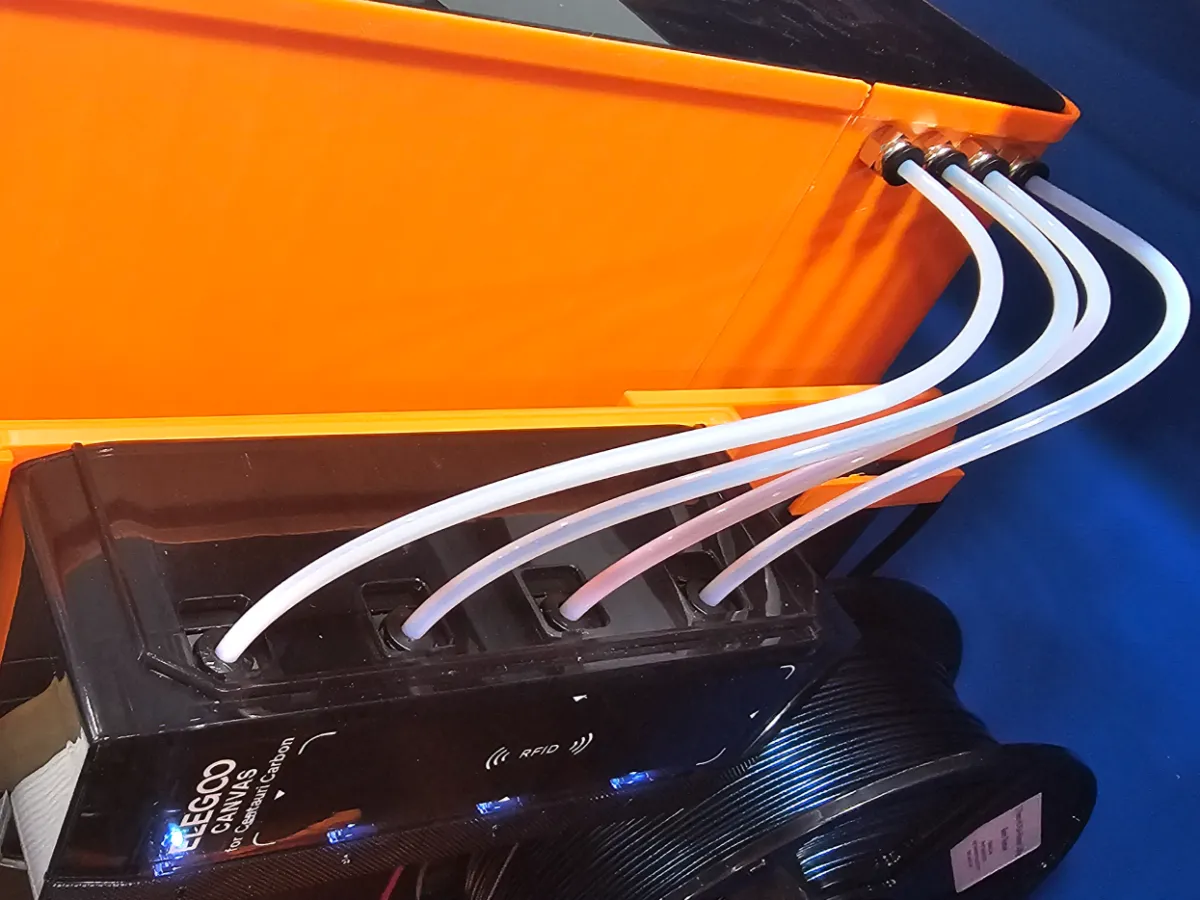

• Contains Four pass-thru holes in the rear right corner for the PTFE Tubes

  • Requires 8 x PC4-M10 Pneumatic Quick Connector Fittings: https://www.amazon.com/dp/B0F62FZK4R?ref=ppx_yo2ov_dt_b_fed_asin_title

• Contains a 45 Degree channel for an LED Strip with channel for LED Strip wire

  • LED Strip Used for this build: https://www.amazon.com/dp/B0DHV8ZF4R?ref=ppx_yo2ov_dt_b_fed_asin_title

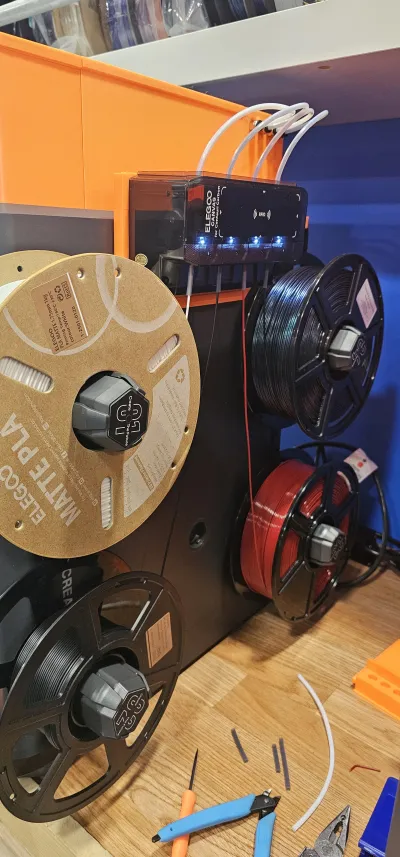

Canvas Relocation Details:

• Canvas Dock Plate that connects to the top center screw between the filaments

  • Added additional Cable block that assists in holding the Canvas cable to avoid any cable tangling with filaments or spools

• Canvas Slider Plate for dock

  • Attaches to the back of the Canvas unit to slide into the dock making it easier to remove the Canvas Unit should it need to be removed (Troubleshooting issues)

LED Bracket Details (Optional & Requires Soldering):

• Bracket replaces the OEM LED Brackets with a JST Connector for LED Light

  • Requires Glued in JST Connector

    • JST Connector used: https://www.amazon.com/dp/B0D6KSMK1Q?ref_=ppx_hzsearch_conn_dt_b_fed_asin_title_5

Rebuilt Riser general design via FreeCad, inspired by  the "Elegoo Centauri Carbon - Top Plate Riser" by @3DPrintStuff

Please Note The Following:

LED Light: Will add photos of LED Bracket & LED Strip once completed within a couple of days. I have the same Riser Design without the Canvas Unit but I do not want to upload those images to not cause any confusion.

Printing: All parts in photos printed on an Elegoo Centauri Carbon in PETG at .20mm, 250 Degree Nozzle, 70 Degree Bed, Supports Normal / Snug with .4mm top and bottom Z distance.
