Designed by myself in OnShape

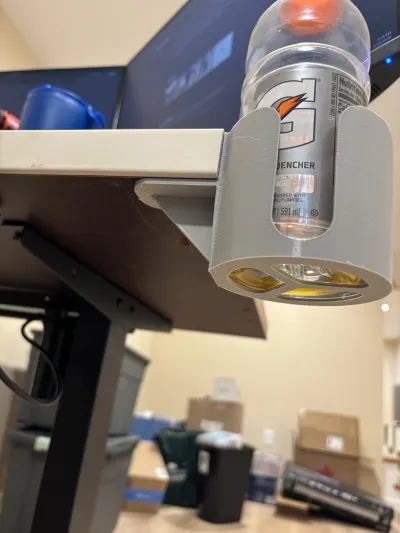

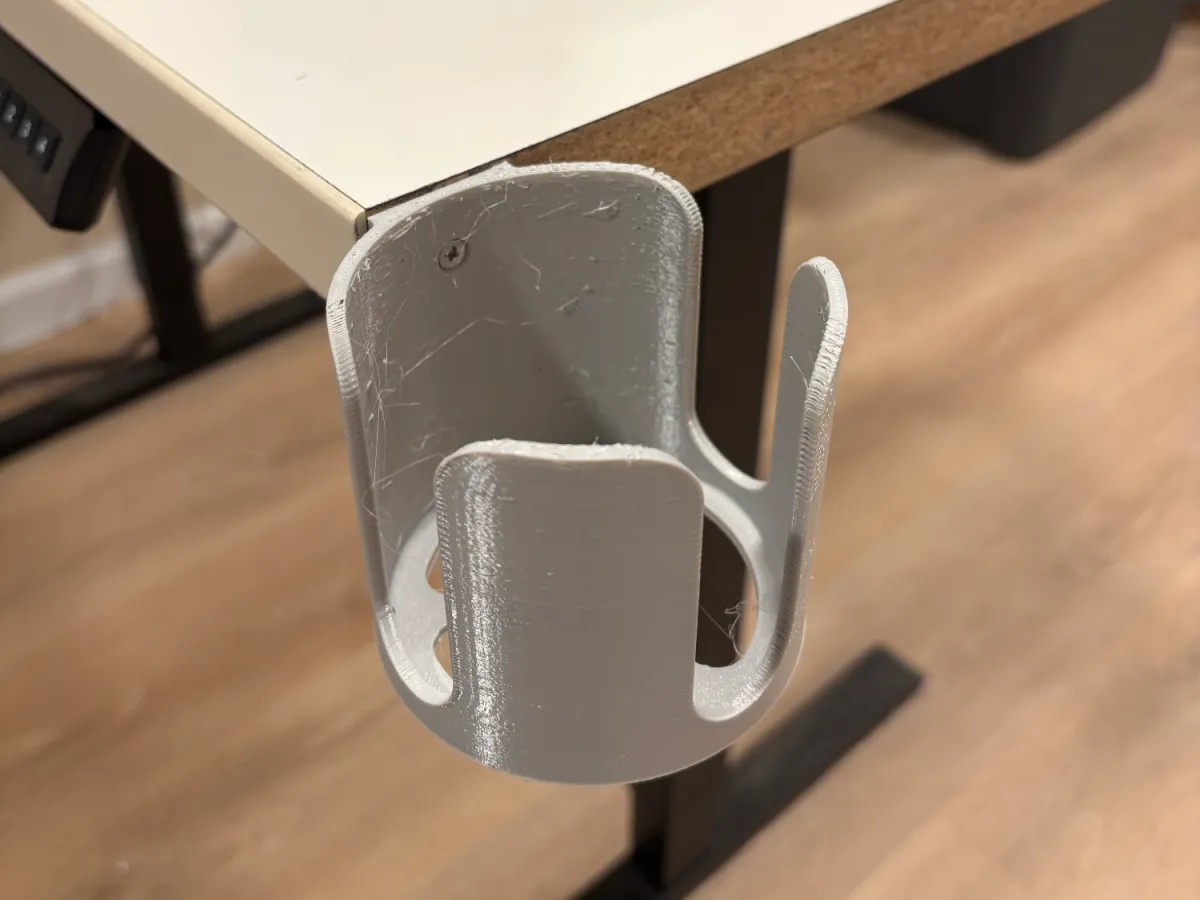

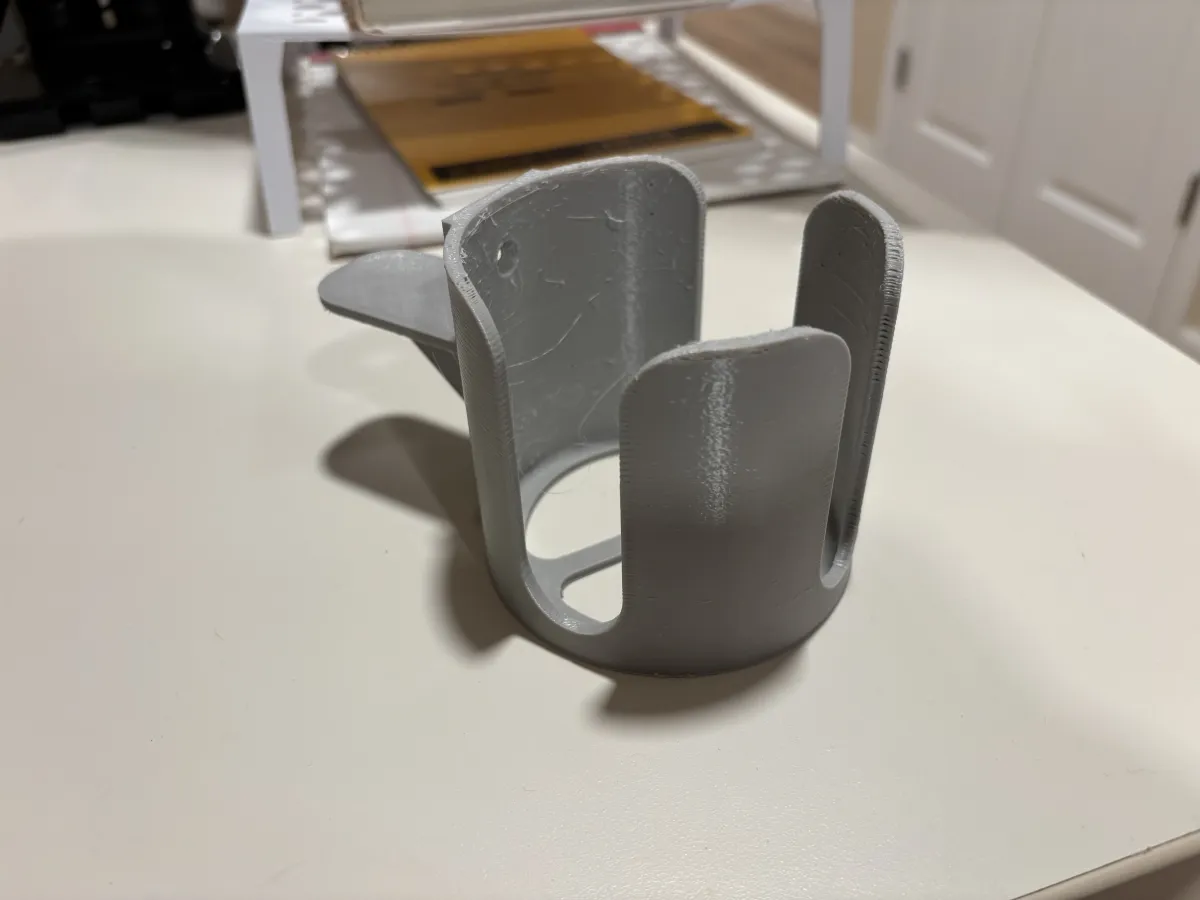

I moved and did not take my previous desk with me, so I needed to design a new cup holder to mount to the side of my new desk. Learning from my previous models, I figured I would start from scratch with the design. It is now larger than my previous design, as I found some of my larger mugs didn't quite fit. It also now mounts with a single screw into the side of the desk, rather than a passive mount, as this will now be more rigid and a permanent attachment to said desk. I did keep the three notches to allow for mug handles, so I redesigned those to be fairly similar to the previous design. The bracket protruding from the back of the model provides additional support for the print when a heavy mug full of liquid is placed inside.

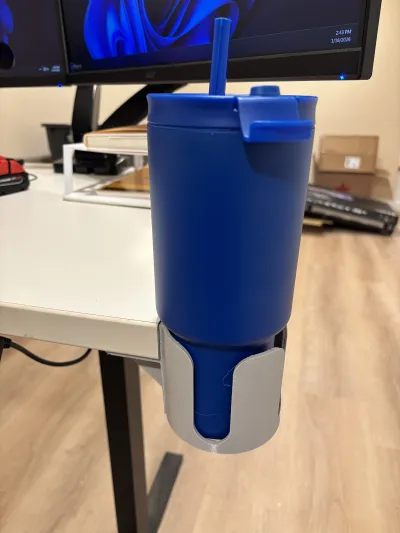

Allows for any cups, bottles, etc. up to 3.25" in diameter.

This was designed for a ~1.125" desktop. The mounting hole is 0.5625" from the bottom of the desk.

Printed on an Elegoo Centauri Carbon with a 0.4mm Nozzle, using Inland Silver High Speed PETG+

Sliced in Orca Slicer, using the Generic PETG profile with the 0.20mm Standard settings with the following modifications: 4 wall loops, 25% infill density, gyroid infill, organic Tree support, and Mouse ear brims.
