WLED matrix 8x10
Print Profile(0)

  • Earn points by adding print configurations

0

2

16

2

Released 2026-01-16
Details
Files(5)
Makes & Comments (0)

Hey there!

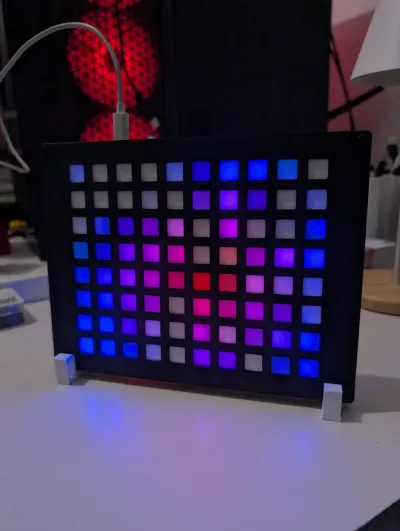

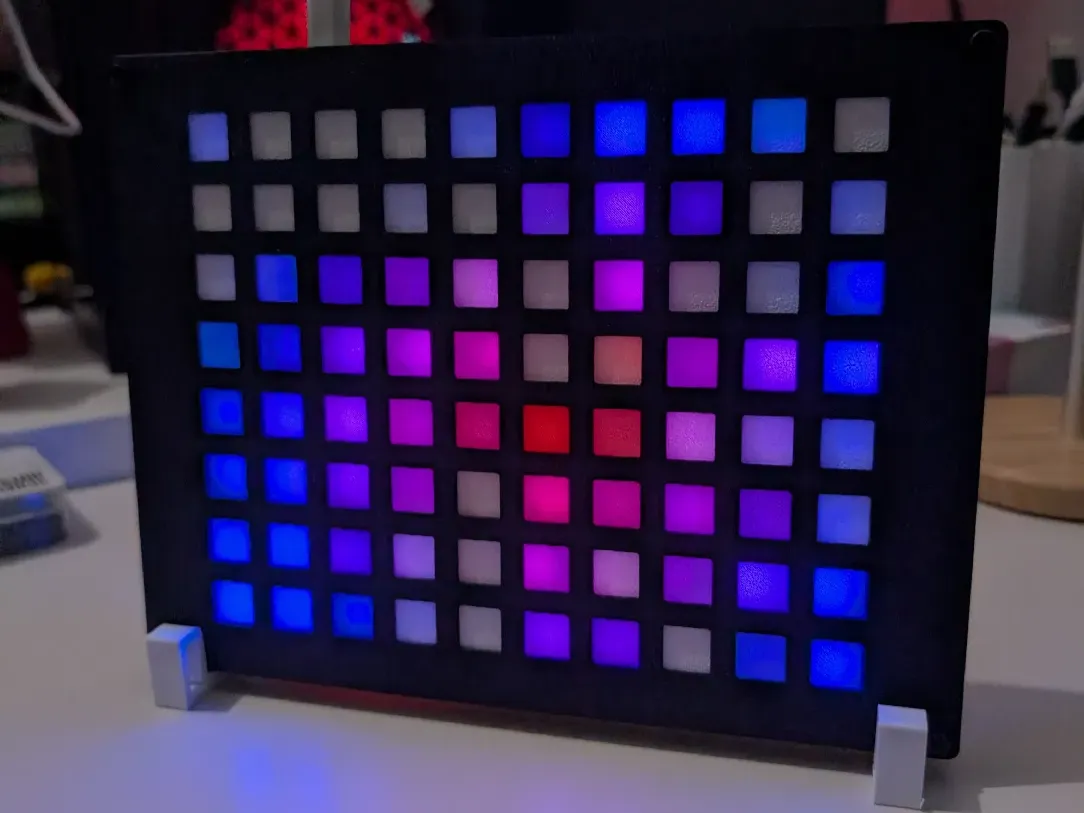

I designed my own 8X10 LED matrix.

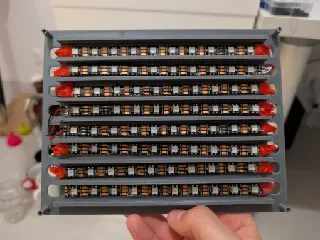

I wanted to give it a DIY look, so there is no backplate to hide the wires and the WLED board.

I'm using:

  • WeMOS D1 mini to control the LEDs
  • LED 60 LEDs/m WS2821B 5V

The control box is glued in place (in case you are using a different WLED card) and the card is held with double-sided tape.

Four M3x16 screws are needed to close the box.



I use WLED to control the LEDs. Let me know if you would like me to upload the 2D matrix configuration.

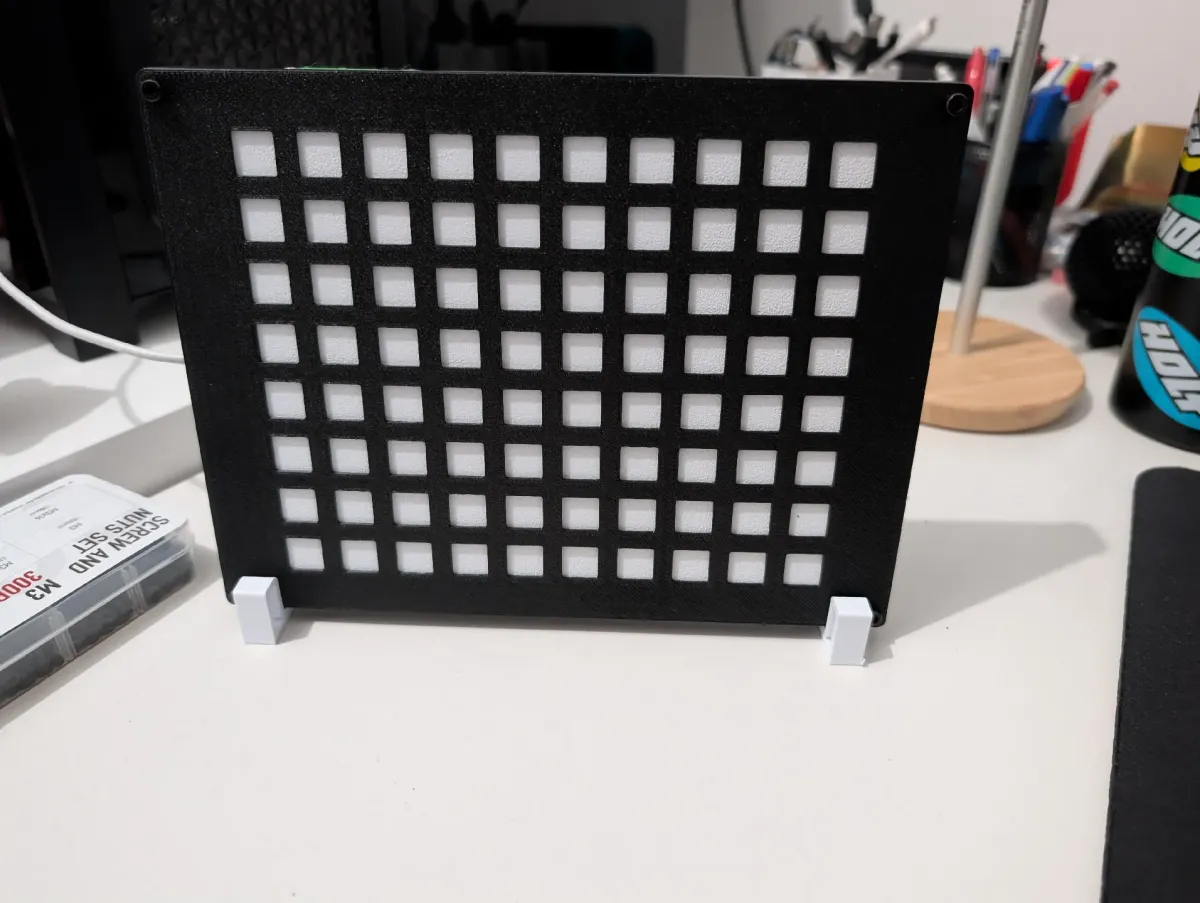

You need to print "feet" 2 times. It helps the box to stand.

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    WeMOS D1 mini
    1
    WLED controller card
  • 2
    LED 60 LEDs/m WS2821B 5V
    1
    At least 80 LEDs (1.33m)
  • 3
    M3x16 screws and nuts
    4
    To close the box

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator
