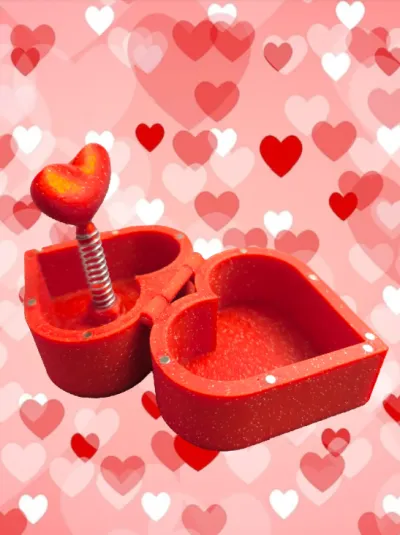

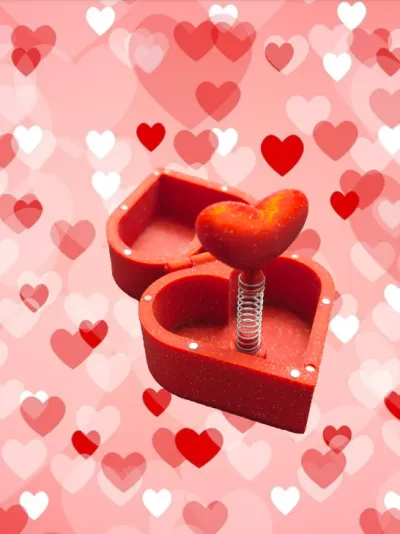

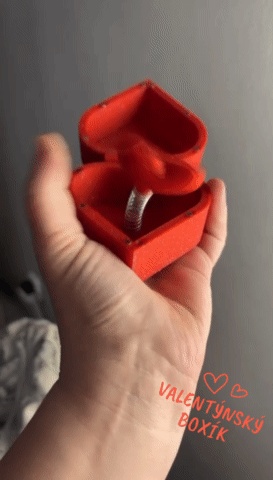

I modeled a heart box with a surprise inside for my girlfriend.

To print, you also need:

  • 12x neodymium magnets 3x3 mm
  • 1x spring 7.5 x 35 mm
  • double-sided adhesive tape
  • super glue

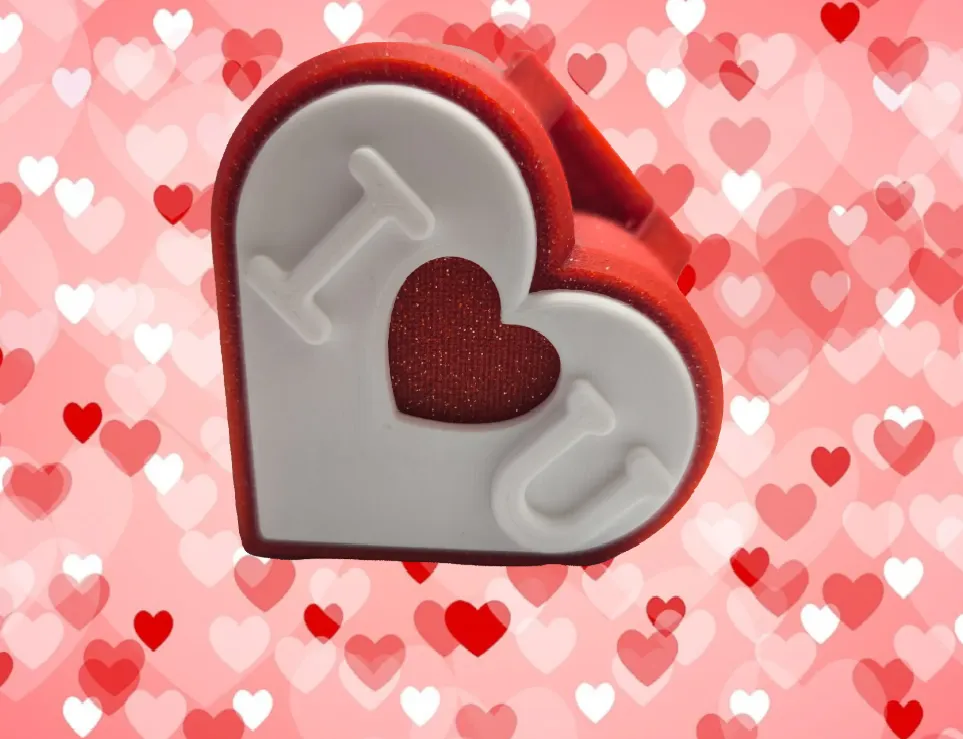

 I created the model so that it can be used both with a heart inside and as a box itself. I glued the base of the spring with double-sided adhesive tape. I lightly dripped super glue on the spring at the joints with the heart and the base. I also glued the emblem to the top of the box. I connected the hinges of the box with a piece of filament and sealed the filament on both sides.



 I printed all parts except the bottom box without supports, because the hinges have a smaller overhang.



The holes for the magnets have a 0.2 tolerance, so it is better to glue them with super glue as well.



I printed smaller parts like the heart and the spring base at a slow speed of about 30mm/s and cooled it a lot.



I hope someone will like the model and it will make their loved one happy on Valentine's Day.

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    neodymium magnets
    12
    3x3 mm
  • 2
    spring
    1
    7.5 x 35 mm

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Models(5)

  • model file image
    base spring.stlDesigner

    1.07 MB

    2026-01-14

  • model file image
    heart (1).stlDesigner

    3.13 MB

    2026-01-14

  • model file image
    emblem.stlDesigner

    4.67 MB

    2026-01-14

  • model file image
    box_top.stlDesigner

    338.17 KB

    2026-01-14

  • model file image
    box_bottom.stlDesigner

    938.36 KB

    2026-01-14
