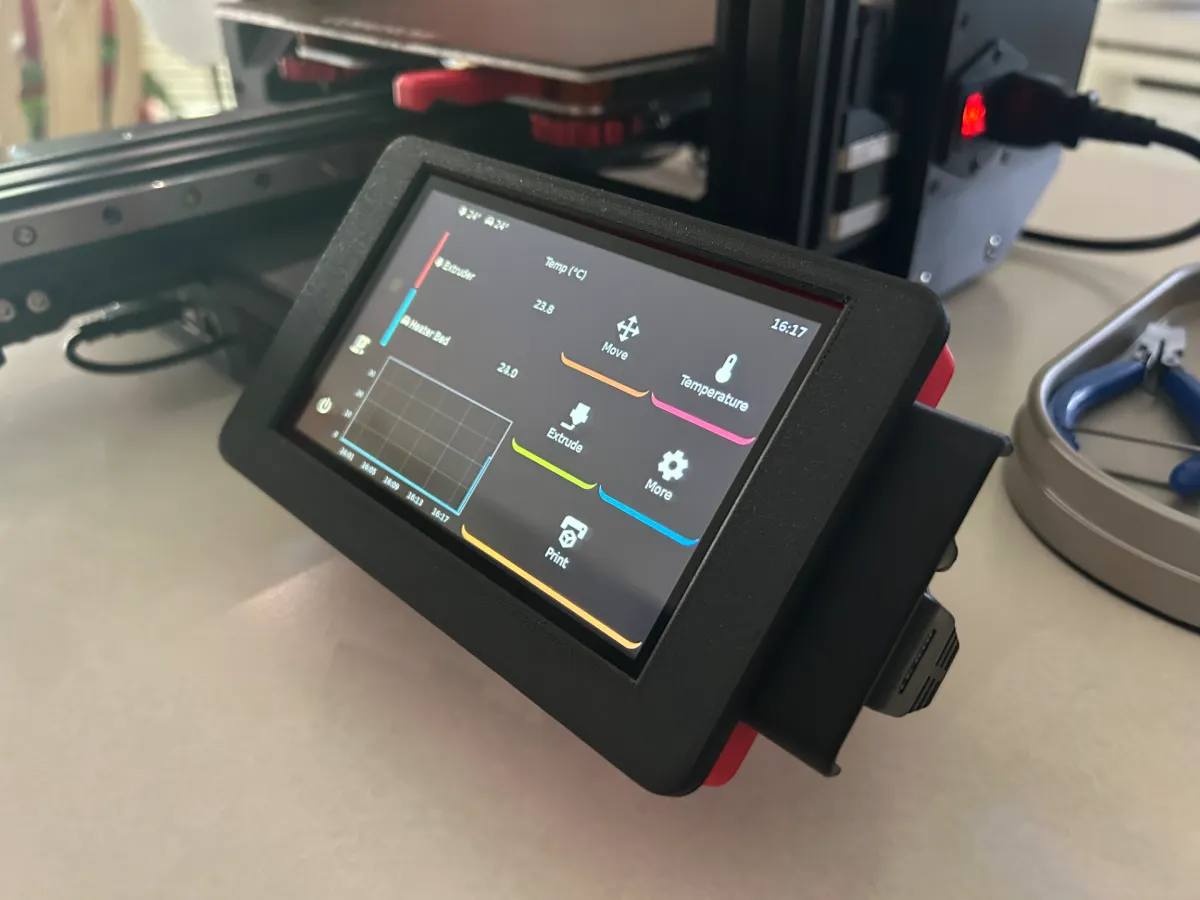

This case is for the Elecrow 5 Inch display model number DIS05490T. It has a cable guard to protect the connectors and the display frame is a snap fit. The washers are for mounting the bracket to the extrusion but optional.
Required hardware:
2 - M4x12 pan head screws
2 - M4 T-nuts
4 - M3x8 taper head screws
4 - M3x5 pan head screws
8 - M3x4x5 heated brass inserts
Bill of materials
- NameQuantityNotes
- 1M4x12 pan head screws2
- 2M4 T-nuts2
- 3M3x8 taper head screws4
- 4M3x5 pan head screws4
- 5M3x4x5 heated brass inserts8
Originality of the Model
The author declares that this work is their personally original model
This model is licensed under the following terms:
This work is licensed under a Standard Digital File License. Digital files have a strict non-commercial, personal use only license.
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital file or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including remixes of this object). You can not host these files on other digital platforms, web stores or cloud repositories. The objects may not be used in any way whatsoever in which you charge money, collect fees.
Models(6)
base.stlDesigner338.36 KB
2026-04-24
frame.stlDesigner100.28 KB
2026-04-24
mounting bracket.stlDesigner459.36 KB
2026-04-24
short guard.stlDesigner37.78 KB
2026-04-24
washer1.stlDesigner56.82 KB
2026-04-24
washer2.stlDesigner56.82 KB
2026-04-24
