A storage system for many of the NimBot DS11 and DS110 (& Other) labellers and labels.

This is modular, you can extend the label shelf section to how long you want it and either hang it from the bottom of the labeller part or insert it into the wall by it's self.

Start off with the label holder, choose DS11 or DS110 (Default in profile), this has a Multiboard snap on the back and can be mounted using:

• For Multiboard use the multiboard snap piece.

• For HSW use the multiboard to honeycomb snap piece

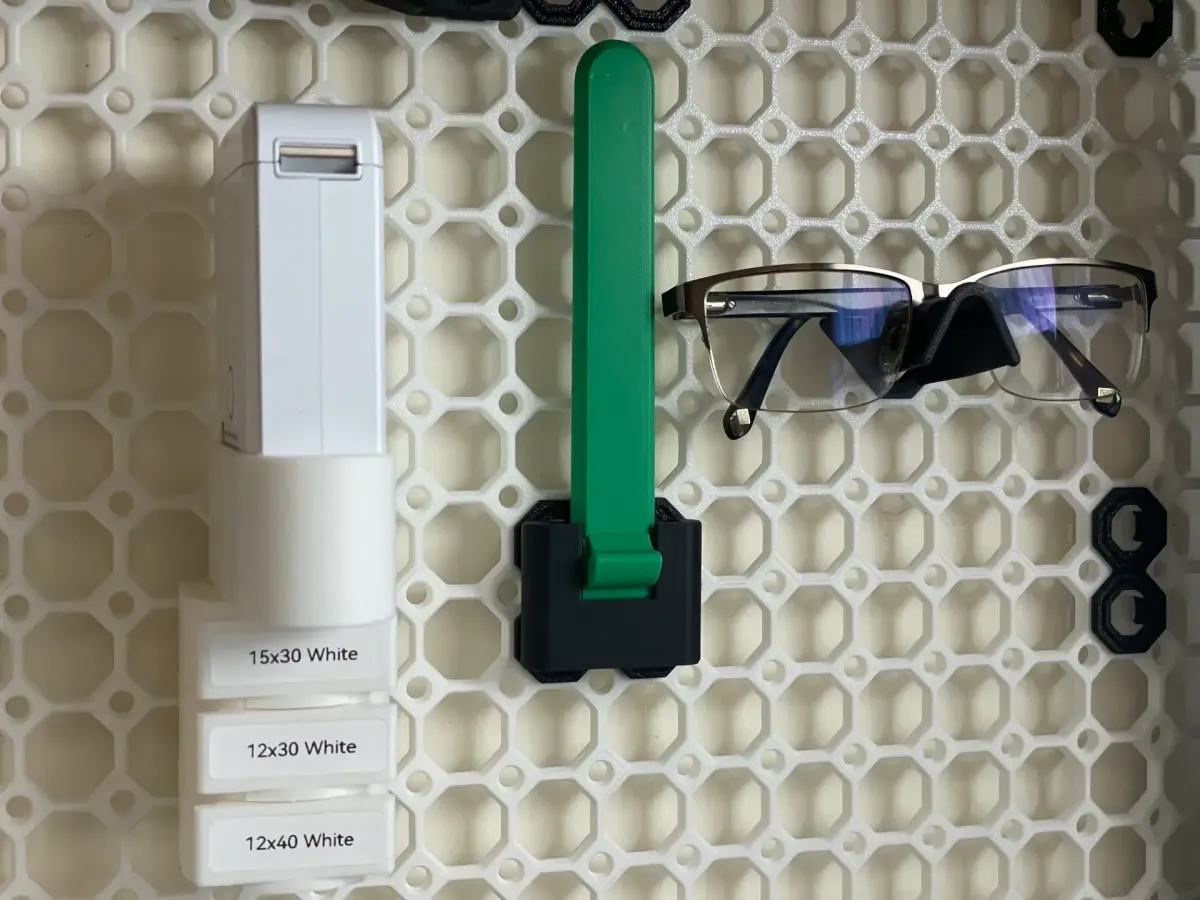

If you want to connect a set of labels to the bottom of the holder you need to print:

‘ShelfHolderJoin’ model which slots onto the bottom and accepts as many ‘ShelfSlottedBottom’s as you want (Left of image)

or

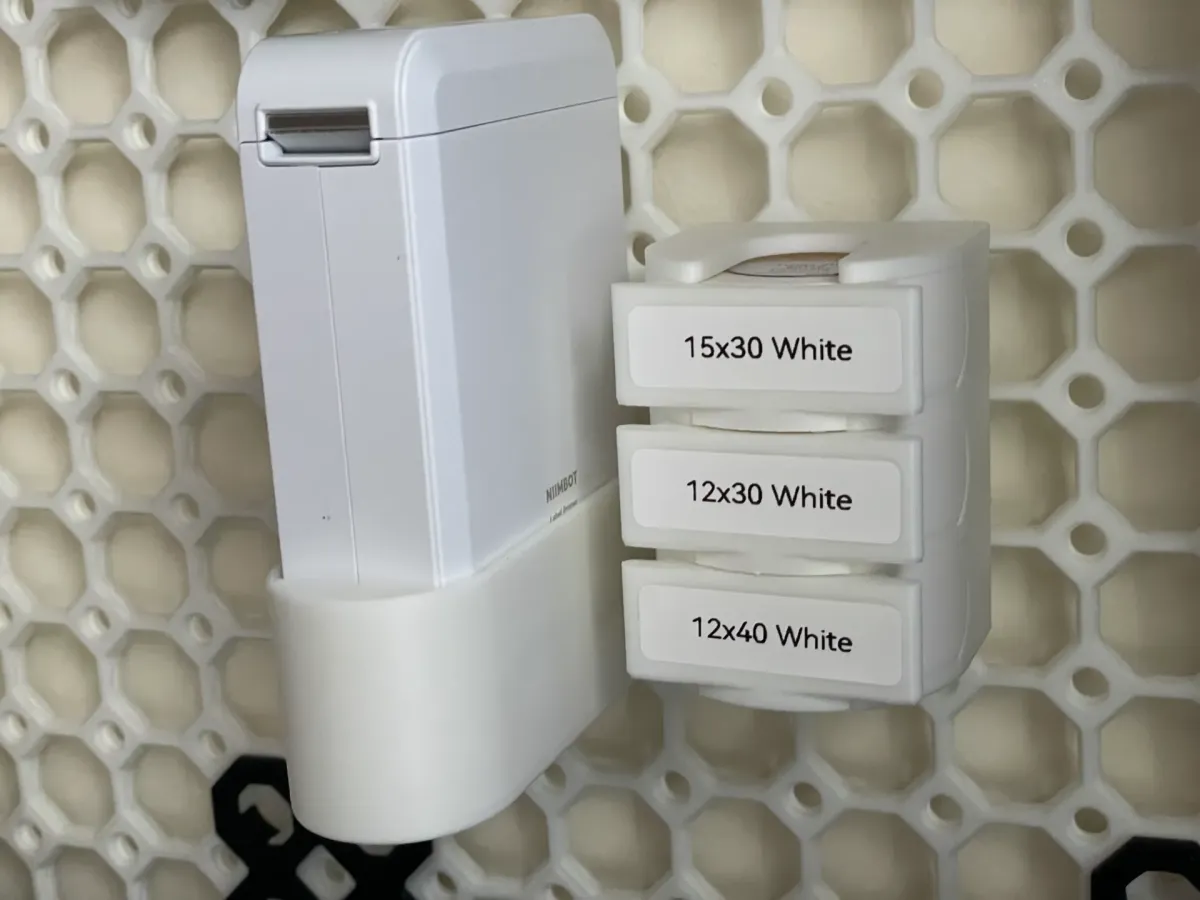

If you're going to place the labels on the board separate to the labeller then print ‘ShelfFlatTop’ for the top, ‘ShelfSlottedMB’ to slot into the board and then as many ‘ShelfSlottedBottom’s as you want (Right of image)

That's all you need, you can just place the labels directly in the shelves, but chances are you like labelling so print the drawer so you can label which labels are in each shelf :-) There are two drawers, one with a inset for a 40x12mm label and another for a 40x15mm label.

As always, if you have ideas on how to improve this or have a different sized labeller or labels let me know the specifics and I will try to help.

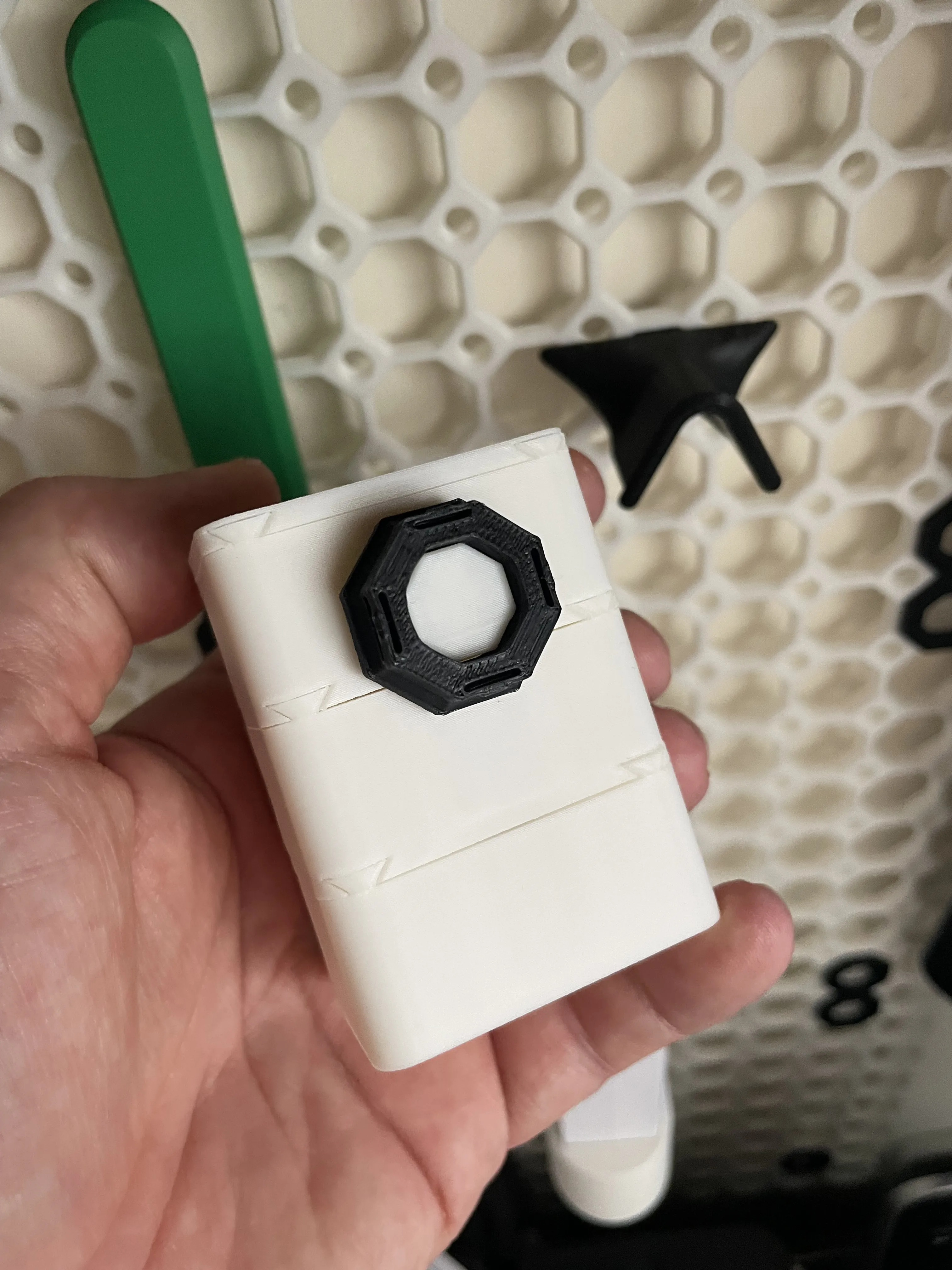

I find it best to push into the snap piece before mounting as it's a tight fit on purpose:

As a bonus there are additional models in the print profile which are purely optional, they have a flat bottom with no slots should you want that. Maybe useful if you position the labels vertically or want a flat bottom on the last shelf.
