Wall Trim Split Flange For 6in Ventilation Duct
Print Profile(0)

  • Earn points by adding print configurations

0

0

6

0

Released 2026-01-01
Details
Files(3)
Makes & Comments (0)

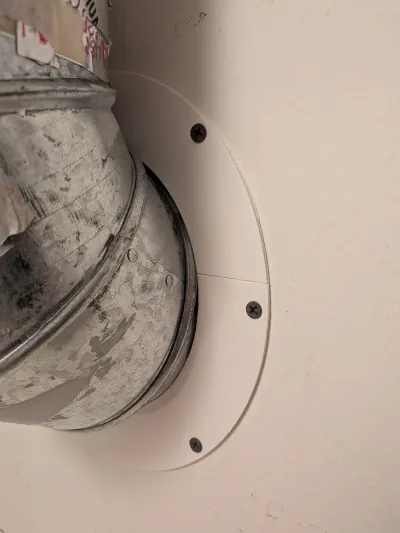

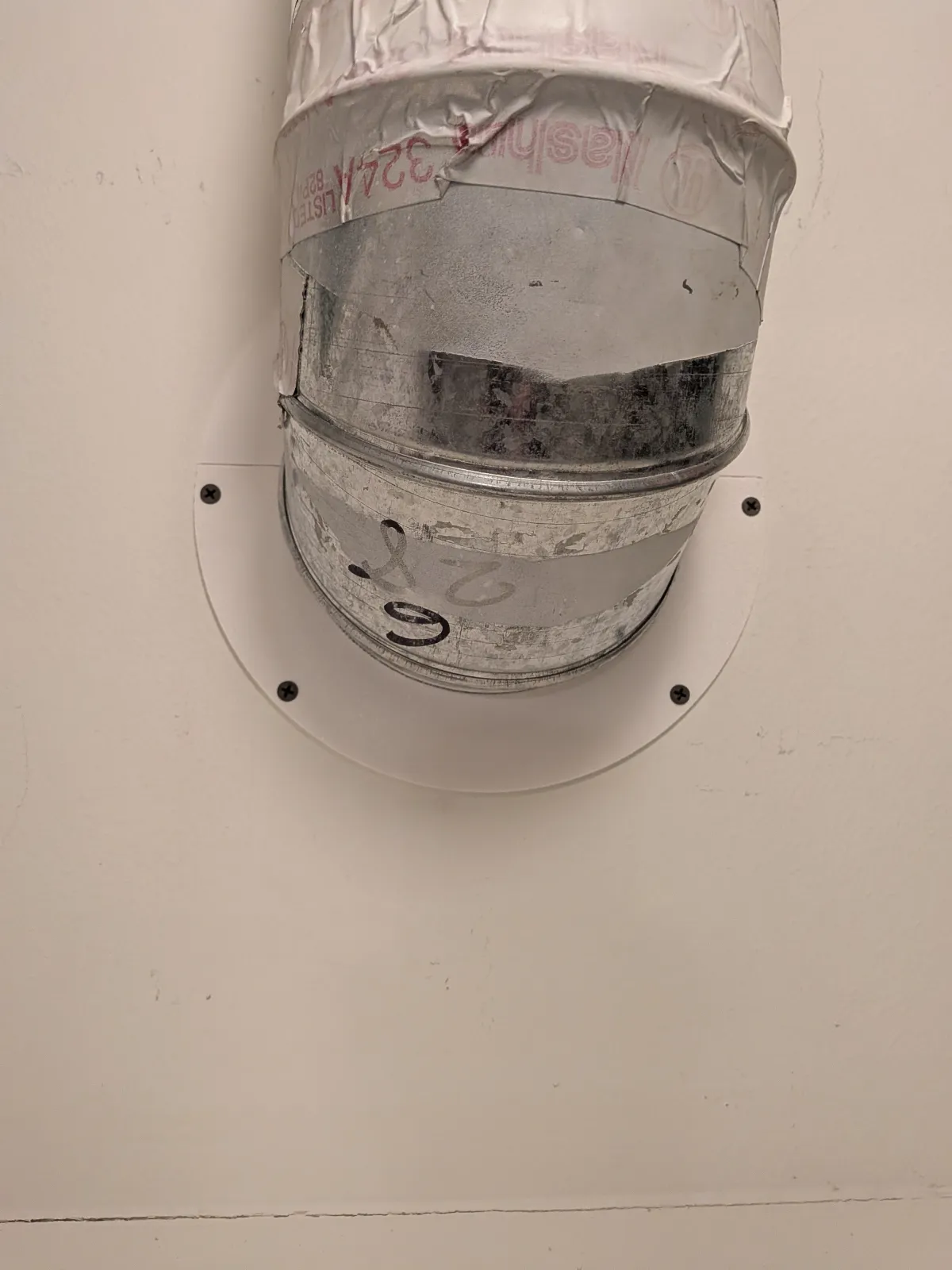

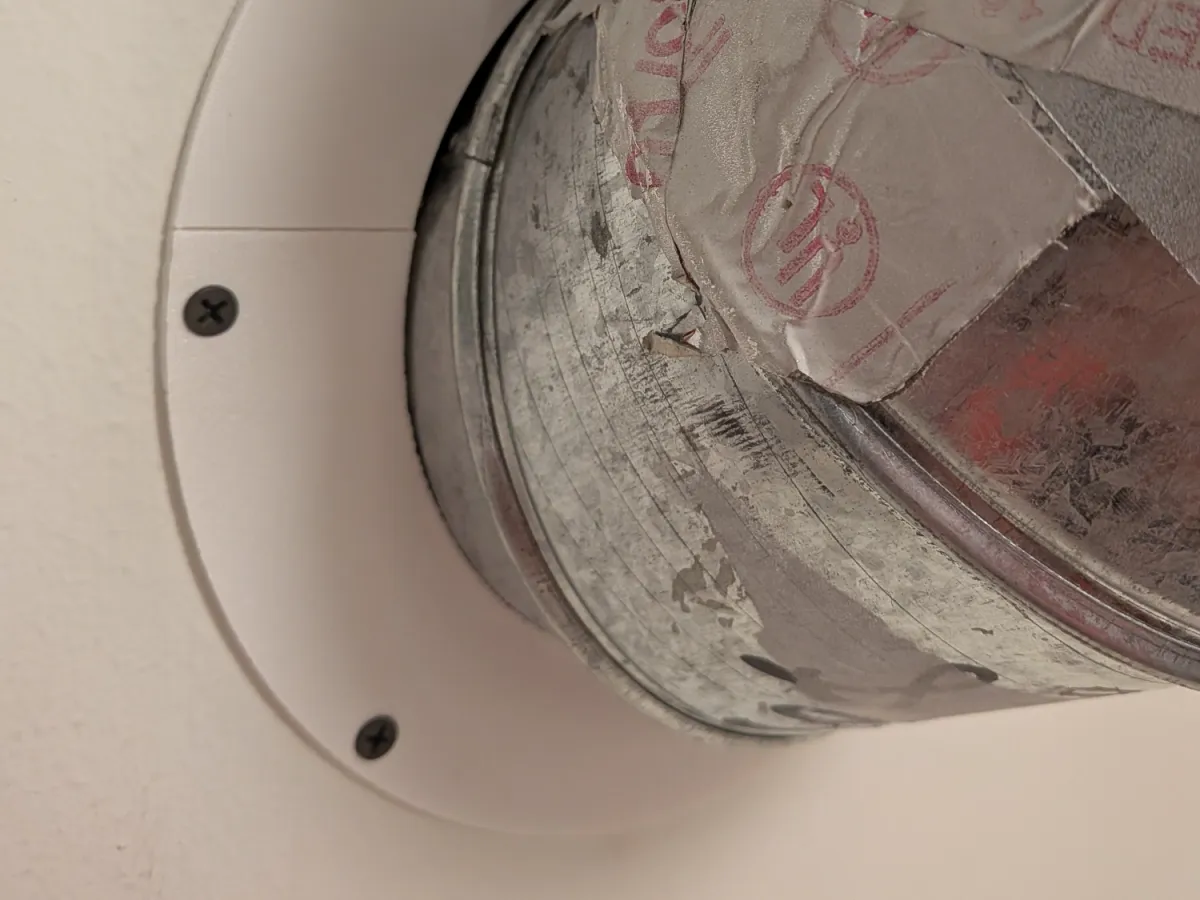

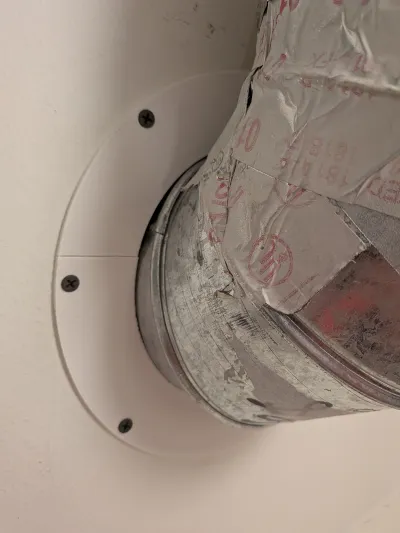

I needed a simple cover for the cut out that this 6in vent duct goes through in the wall. This split flange allows the trim to be added after the duct is run through the rough cut hole. It will cover a gap of up to 1in and uses standard 1in drywall screws countersunk into the flange.



Printed on Centauri Carbon

0.4 mm Nozzle

0.2 mm layer height

Elegoo Rapid PETG

3 wall loops

15% sparse infill, gyroid

No Supports (orient the flange to eliminate the overhang)

Originality of the Model

The author declares that this work is their personally original model
