Update 22/12/25: Added BIGBOY_LEFT_v2_RS.stl which includes 6x 12mm holes on the back wall.

---

Because some of you are absolute nutcases, I present to you the WideBoy and BigBoy edition digital pinball cases!

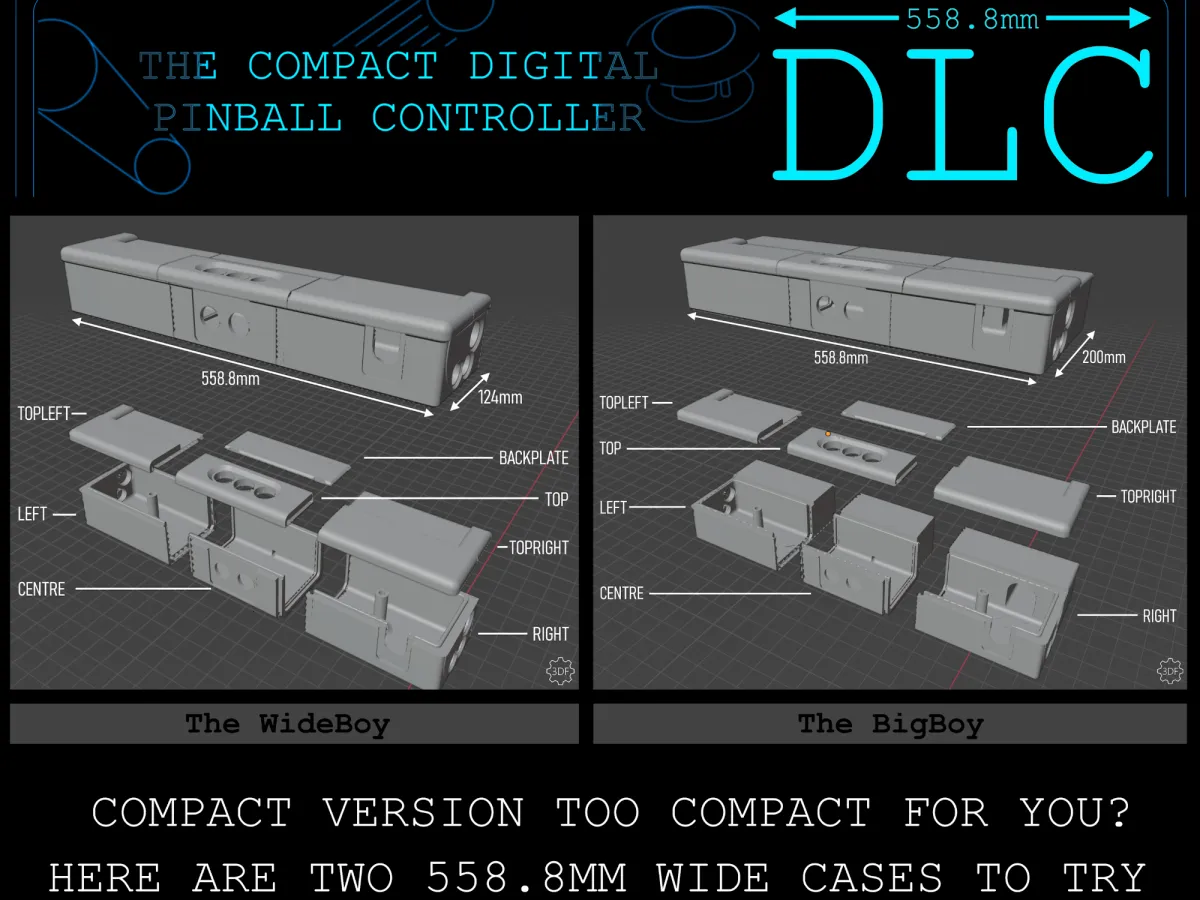

The WideBoy is 558.8mm wide but retains the same 124mm depth as the Compact version.

The BigBoy is 558.8mm wide and 200mm in depth to house a bigger plunger mechanism.

The top parts are the same for both.
The bottom parts are named WideBoy or BigBoy
All the rest of the parts are shared with the Compact version including the Backplates:
https://www.thingiverse.com/thing:7232371

If this insanity continues I will have no filament left :)

The majority of the time (because I print quite a few versions to refine things) I print with a 5% rectilinear infill, 0.28 layer for solid low detail parts and 0.20 layer if it involves threads, and for size/shape/fit tests that works well. Most things are fine at a low infill, but if you want to be able to, say, sit on it (for example) then a minimum of 20% Gyroid or Honeycomb would be a starting point.
I bring this up as the BigBoy's three body parts are each around 97m/290g (7hrs 41mins) at 5% Rectilinear. Whereas in comparison, at 20% Gyroid it's around 194m/577g (21hrs 32mins). These are two extremes and I imagine you might land somewhere in between but just keep it in mind if you take on this... BigBoy!

May the God Of Pinball look upon your printers kindly!

MY PATREON & PATREON SHOP.
https://www.patreon.com/3DFreeman

Thanks for your continued support!

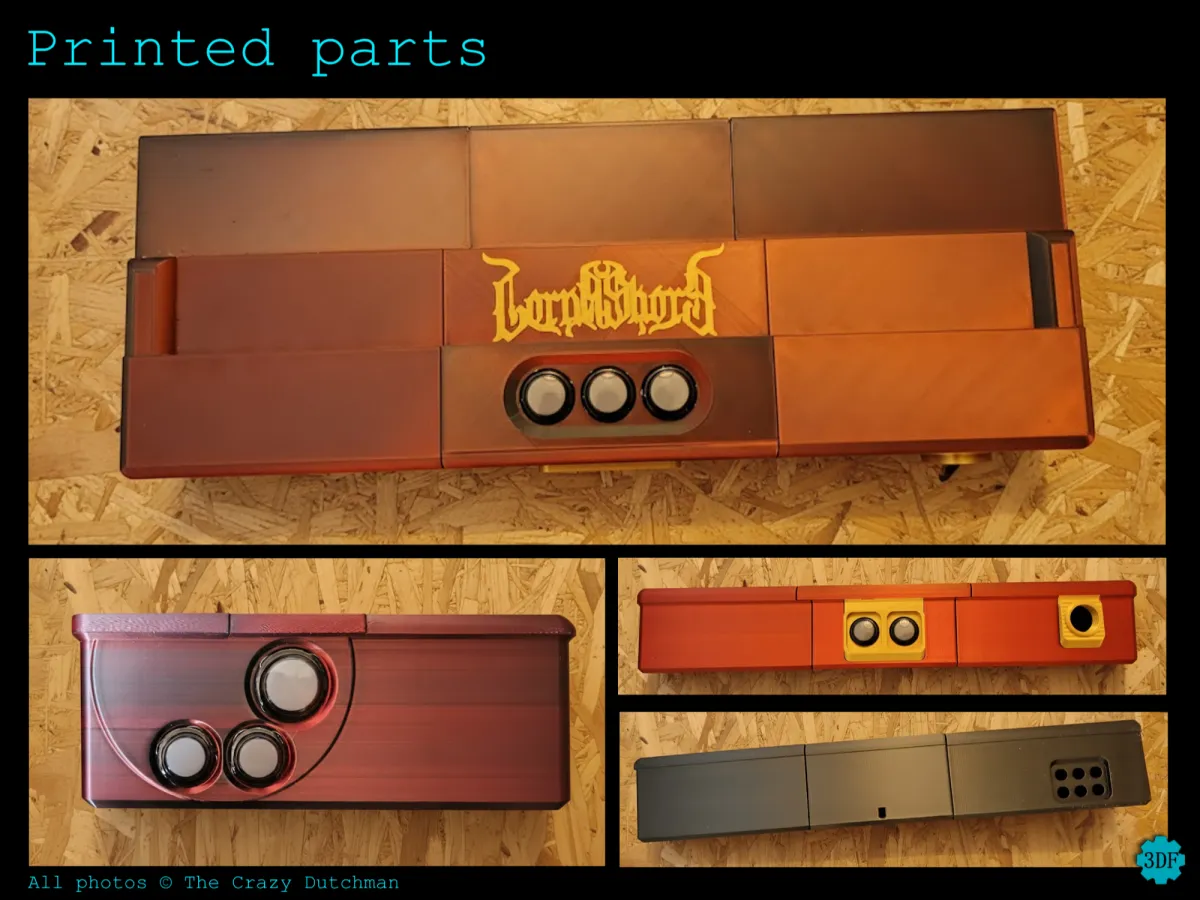

All photos © The Crazy Dutchman
