  • P1P Height Increase

  • P1P height‑increasing inserts

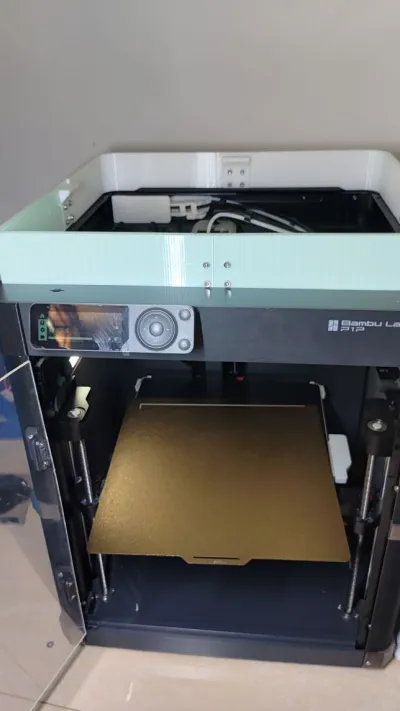

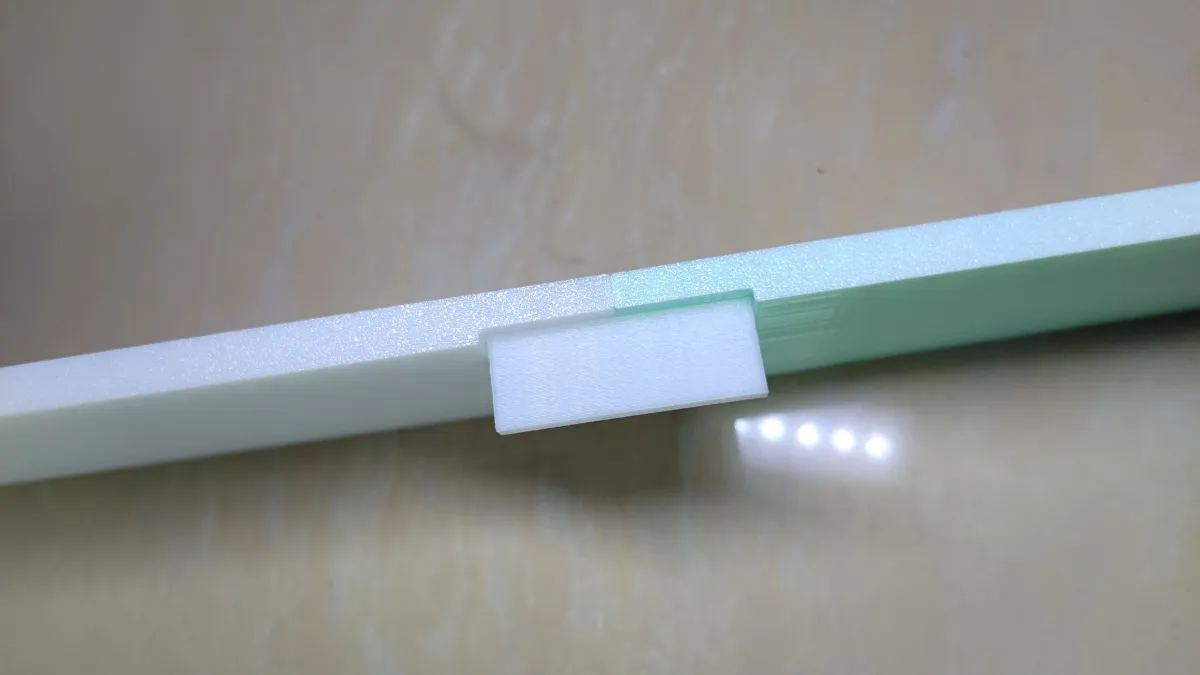

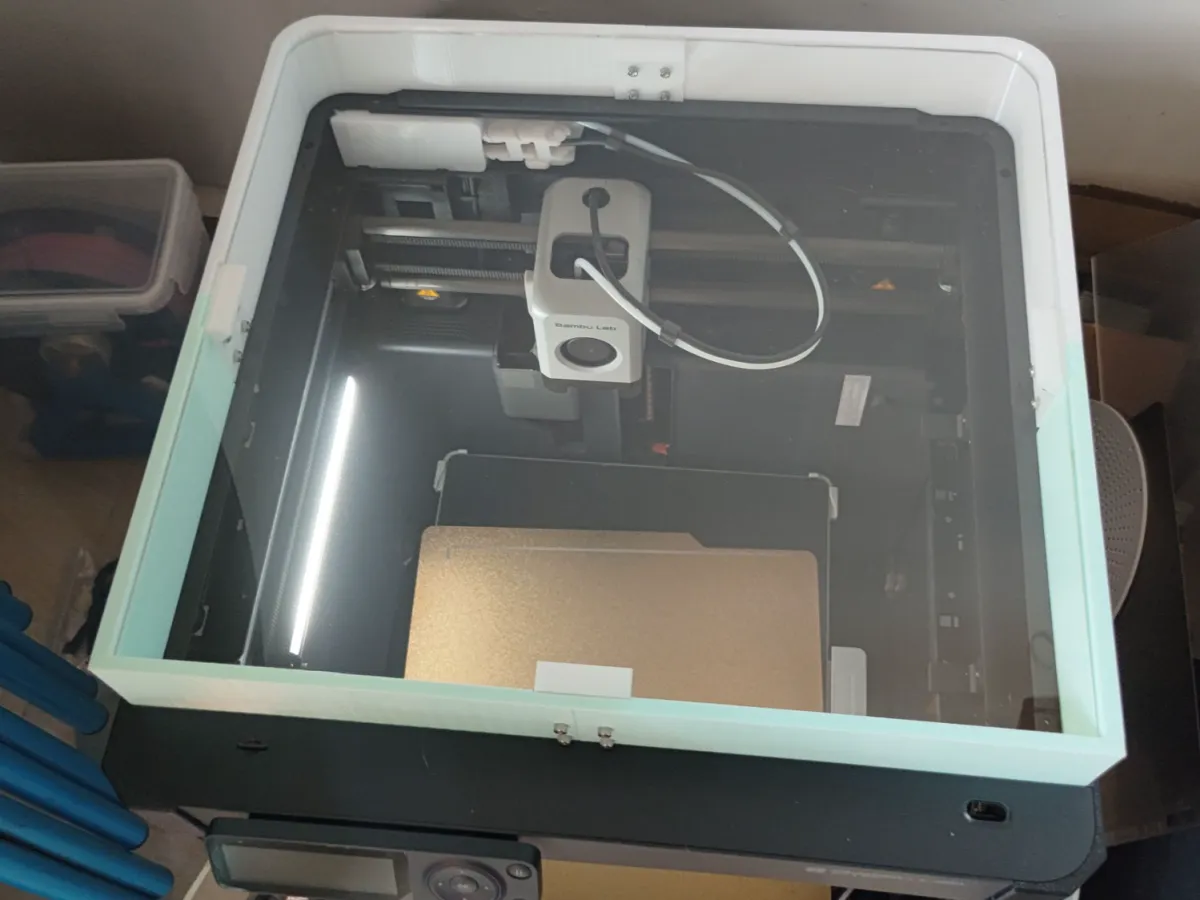

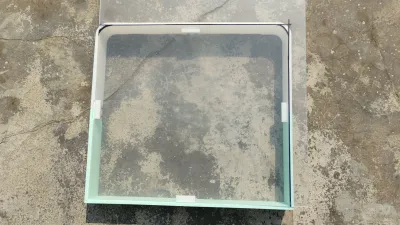

The p1p height‑raising component features a minimalist design, eschewing unnecessary frills and focusing solely on practicality; the top sealing mechanism is fully enclosed with no openings. The model was created based on the p1p’s top contour, incorporating a custom sealing solution from online resources along with a rear‑print sealing design—this was my approach, but it turned out that not a single pre‑made solution on the web was compatible. So I ended up designing and printing it myself. This height‑raising piece effectively prevents the Teflon tubing from rubbing against the top cover. The top extension is crafted from 3mm‑thick acrylic, supported by acrylic brackets integrated into the top surface. The entire assembly is secured using 16 M3 × 10 screws with nuts, and the print time is estimated at around ten hours, split across two print jobs.

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    m3螺丝
    16
    3X10带螺母的
  • 2
    亚克力板
    1
    400MMX400MM厚3mm亚克力板自己回来裁剪

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Standard Digital File License

This work is licensed under a Standard Digital File License. Digital files have a strict non-commercial, personal use only license.

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital file or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including remixes of this object). You can not host these files on other digital platforms, web stores or cloud repositories. The objects may not be used in any way whatsoever in which you charge money, collect fees.

Models(6)

  • model file image
    右前.stlDesigner

    65.51 KB

    2026-03-07

  • model file image
    左前.stlDesigner

    65.51 KB

    2026-03-07

  • 左后.stlDesigner

    114.14 KB

    2026-03-07

  • model file image
    右后.stlDesigner

    114.05 KB

    2026-03-07

  • model file image
    左右固定件.stlDesigner

    42.66 KB

    2026-03-07

  • model file image
    前后固定件.stlDesigner

    42.66 KB

    2026-03-07
