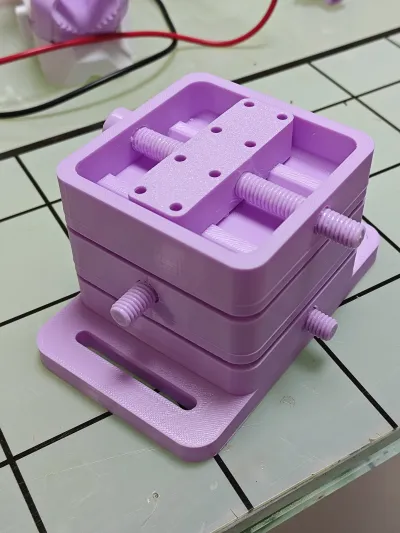

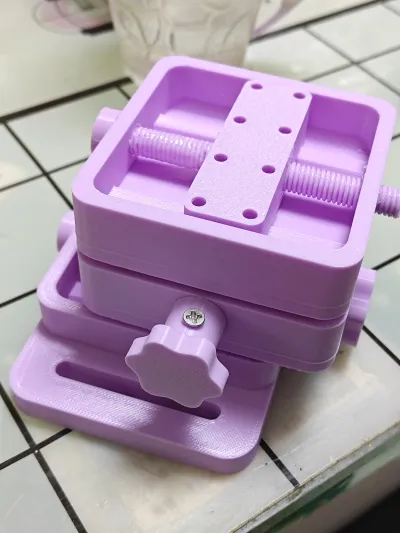

A cross slide designed for a small bench drill, with mounting holes on the bottom measuring L102 × W48 × D6 (R3)

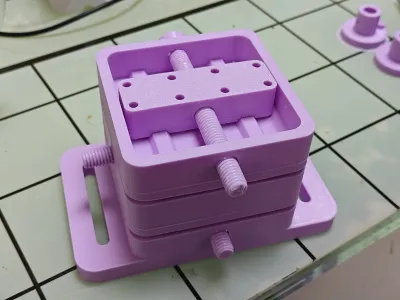

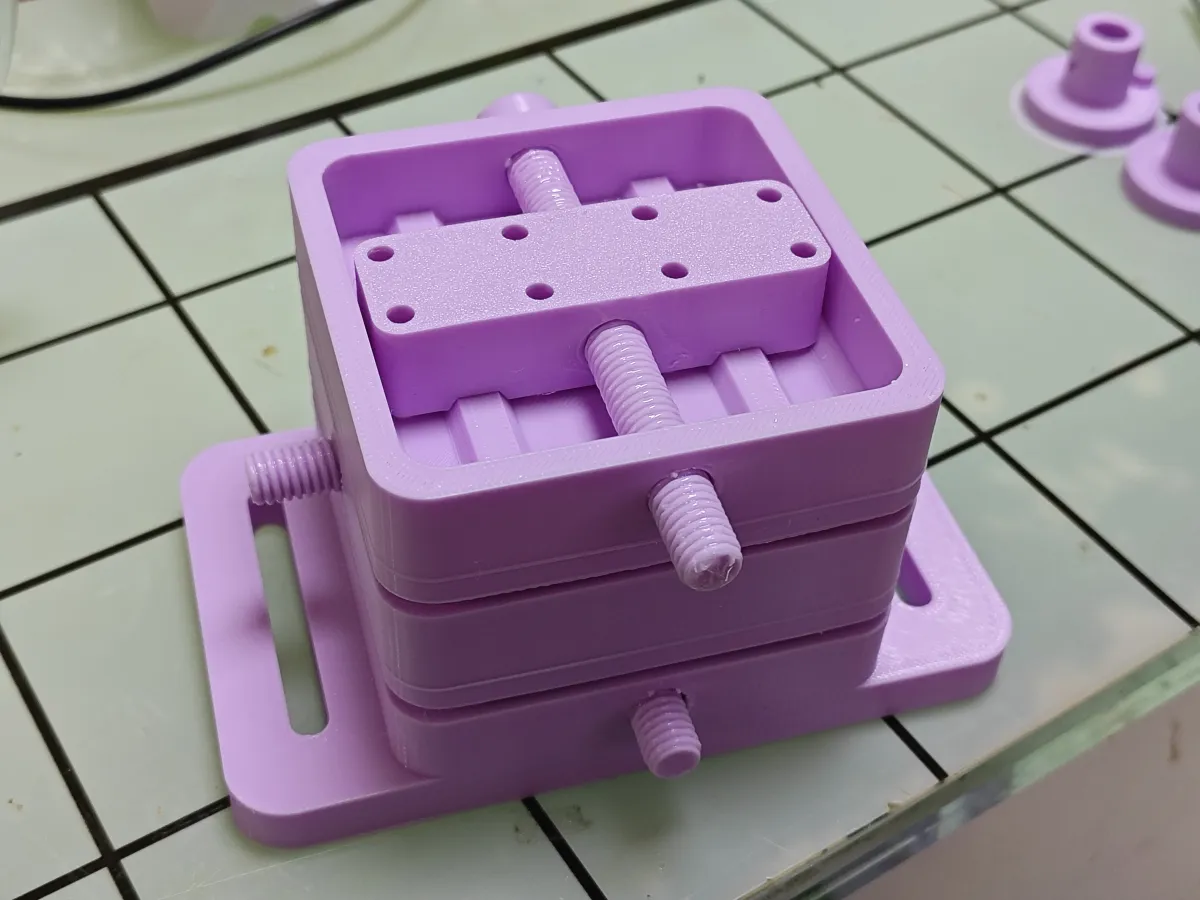

The adjustment range is approximately 24 mm, with the hand‑tightened nuts offering only about 10 mm of adjustability—(the actual part includes an extra layer in the photos)

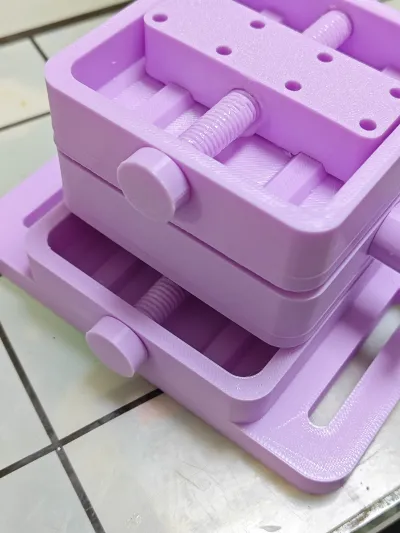

Lubrication with oil or grease is recommended

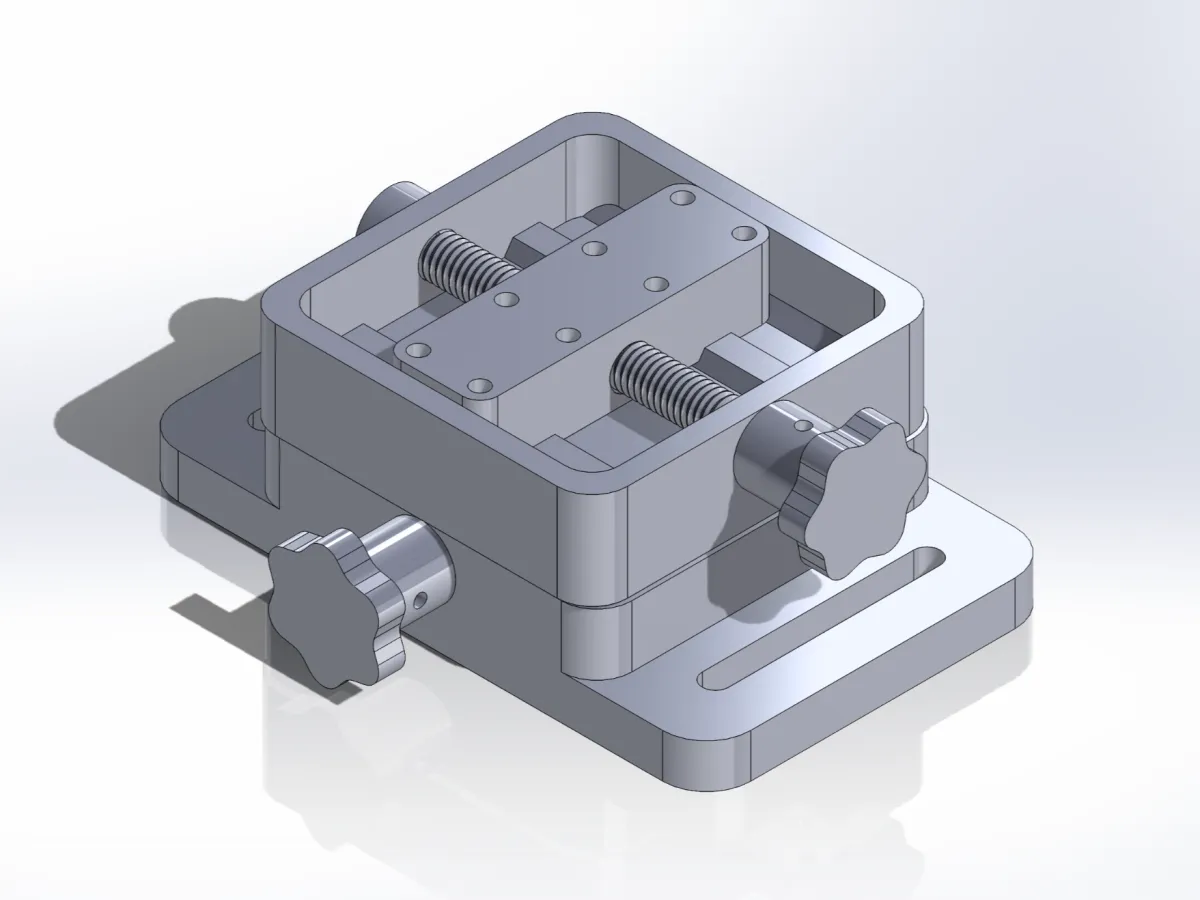

The screw hole spacing on the top small slide is shown in the diagram: 20 mm horizontally and 14 mm vertically, featuring pre‑drilled holes for M4×6×5.5 hot‑melt nuts.
The lead screw and hand‑tightened nuts are custom‑made to a size of M9×1.0×94 mm; if needed, you can check them out on my profile page.
If you don’t require these components, you can simply perform a Boolean subtraction and then use standard fasteners instead.
