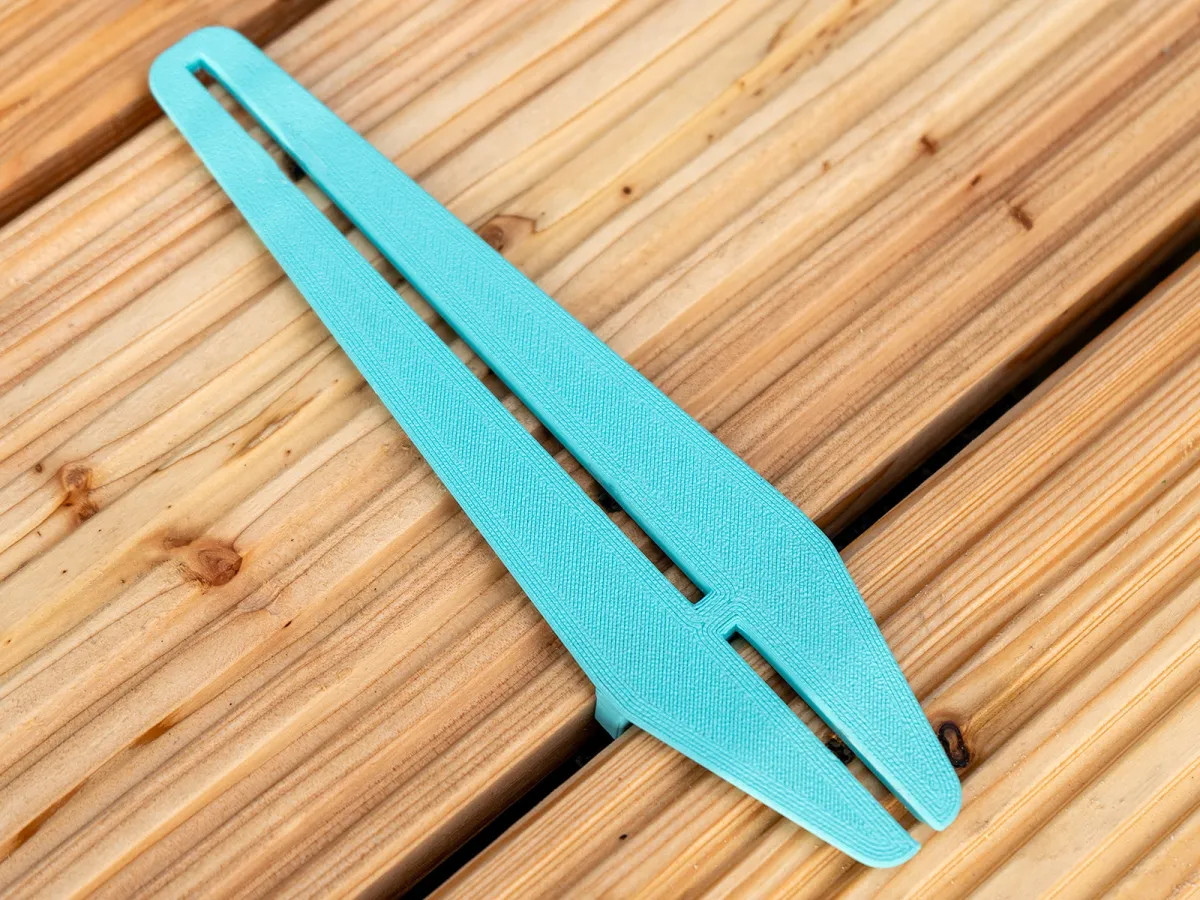

Alignment jig for decking screws
Print Profile(1)
  • 0.2mm layer, 5 walls, 15% infill

    1-disc

    PLA

    Designer

0

0

4

0

Released 2025-11-27
Details
Files(1)
Makes & Comments (0)

Design Concept

The alignment jig is designed to ensure precise spacing and alignment of screws for decking installations. Its simple yet efficient design allows for quick and accurate placement.

Use

This tool is essential for professionals and DIY enthusiasts working on decking projects. It guarantees consistent screw alignments, enhancing the overall appearance and stability of the deck.

Assembly Instructions

No assembly needed. The jig is ready to use right after printing. Place it along the decking boards and insert screws in the provided notches.



Made for 145mm planks or narrower.

With 7mm spacer.

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Standard Digital File License

This work is licensed under a Standard Digital File License. Digital files have a strict non-commercial, personal use only license.

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital file or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including remixes of this object). You can not host these files on other digital platforms, web stores or cloud repositories. The objects may not be used in any way whatsoever in which you charge money, collect fees.

Models(1)

  • model file image
    Decking Jig 7mm Titan3D E.3mfDesigner

    96.20 KB

    2025-11-26
