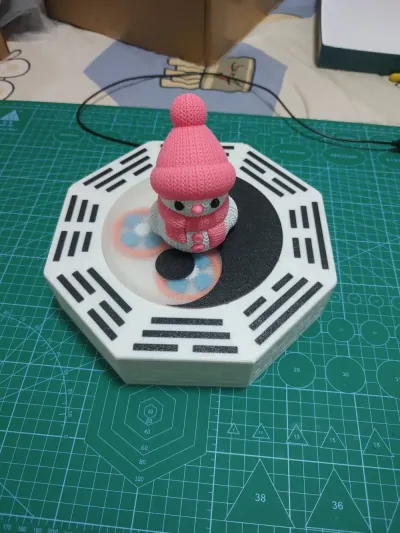

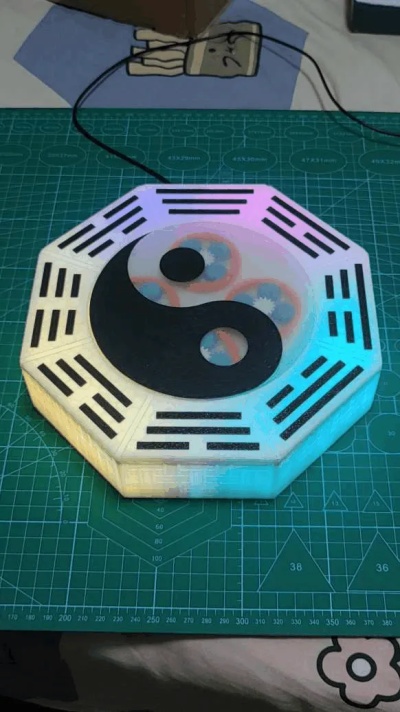

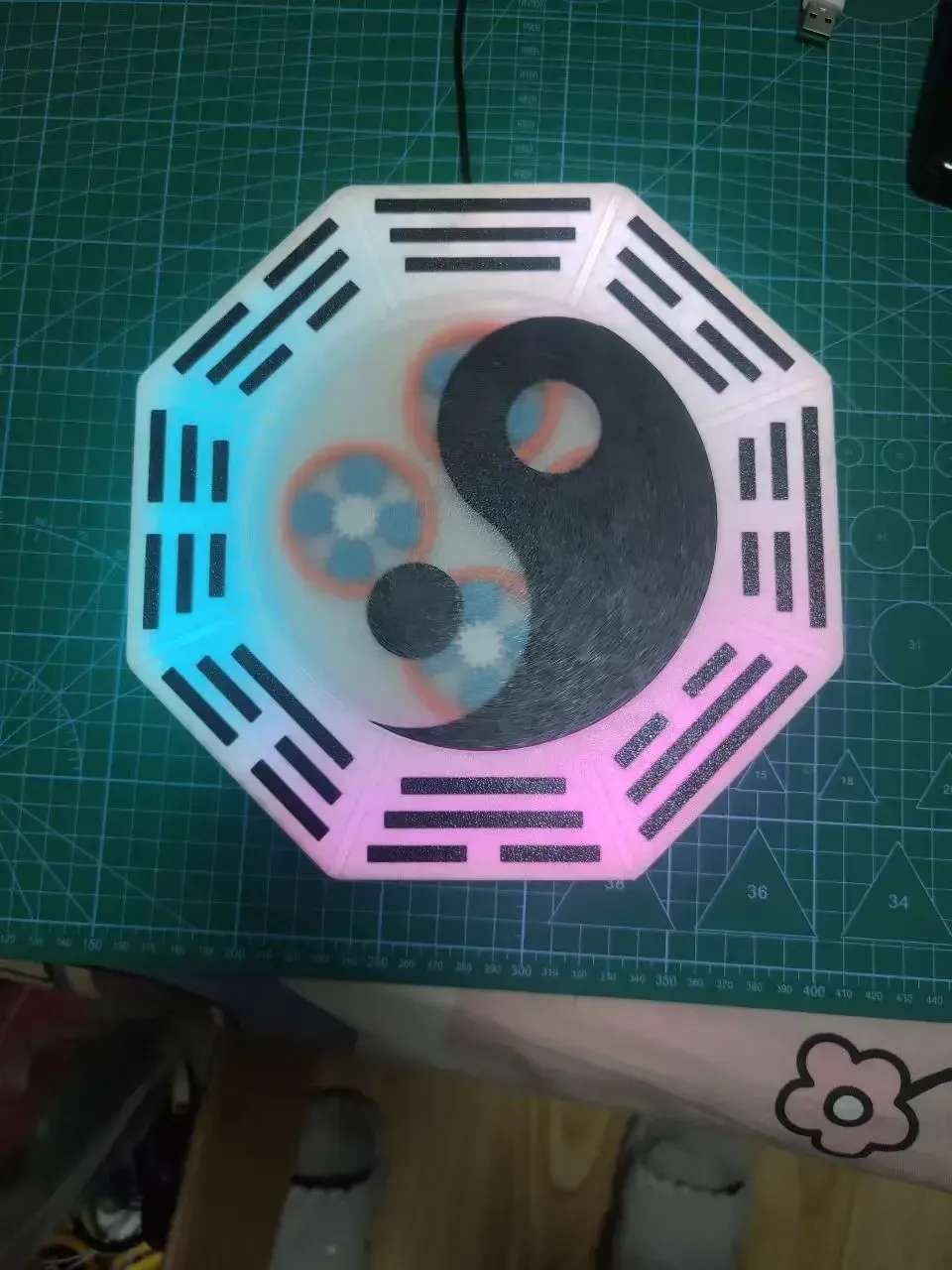

This rotating display stand is designed around the theme of Tai Chi and the Eight Trigrams, featuring an internal lRGB light strip. Powered by a TT motor, the stand utilizes two sets of planetary gear assemblies to drive the rotation of the Tai Chi diagram. The rotating bearings are equipped with precision ball bearings to minimize friction and reduce noise, while a circular array of 4mm steel balls beneath the stand further significantly lowers frictional resistance. The Tai Chi display stand is printed using transparent filament, allowing users to clearly observe the intricate motion of the internal planetary gears—a design that perfectly captures the mechanical essence and aesthetic appeal of the Tai Chi symbol.

As a rotating display themed around Tai Chi and the Eight Trigrams, this stand is outfitted with an lRGB light strip and powered by a TT motor, which drives the rotation of the Tai Chi display through two sets of planetary gear mechanisms. The rotating bearings are fitted with high‑precision ball bearings to reduce friction and dampen noise. A ring of 4mm steel balls supports the base of the stand, dramatically minimizing frictional forces. The Tai Chi display stand is printed using transparent filaments, offering a clear view of the internal planetary gear system and its dynamic mechanical operation.

The required hardware is listed below:

The necessary hardware components are illustrated in the figure below:
