Explain:
说明:
1. The pressing force of the buttons in this model is provided by the repulsive force of magnets with the same magnetic properties;
1、本模型按键的按压力由相同磁性的磁铁反斥力提供;

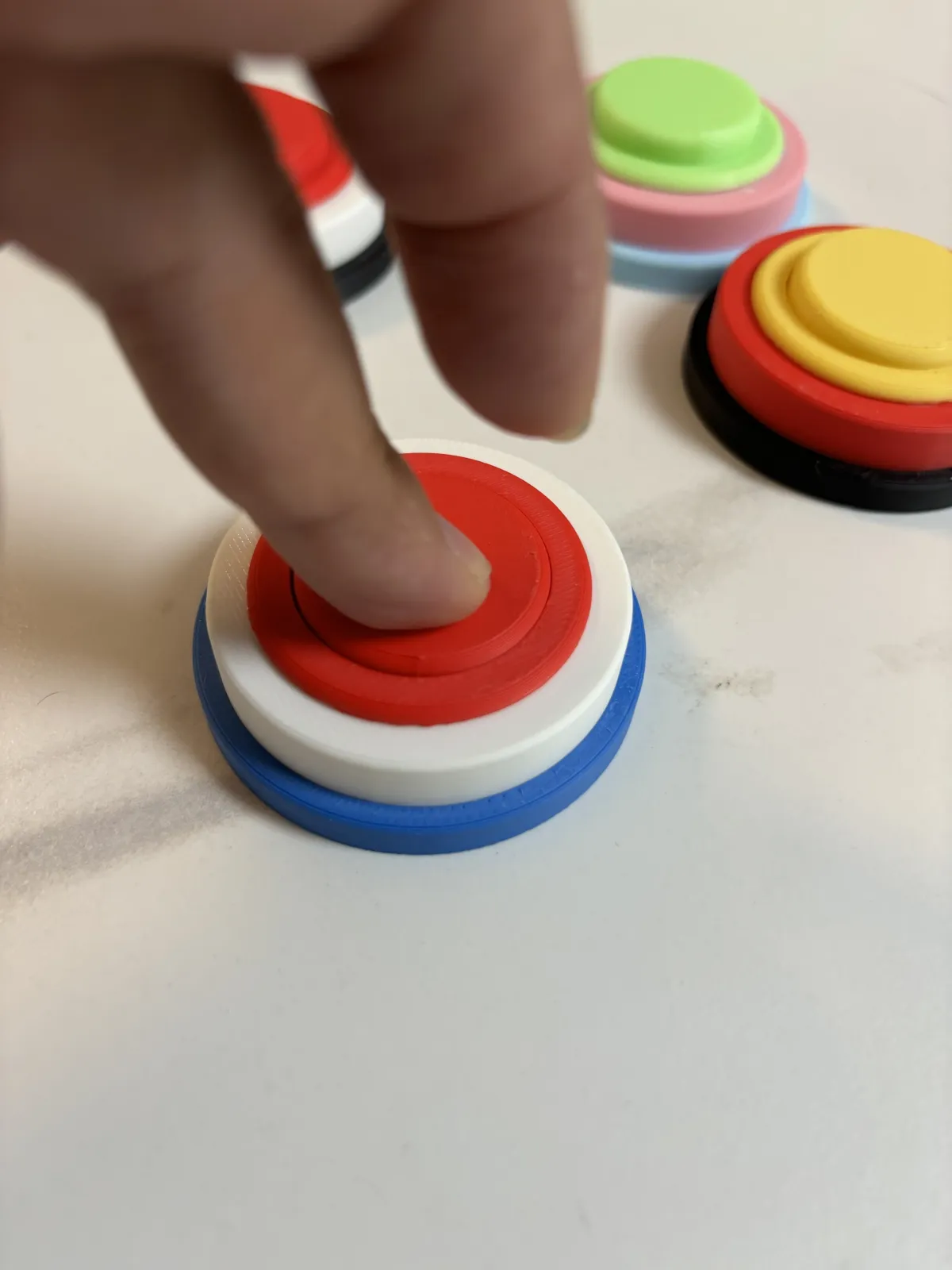

2. You can press freely like playing an arcade game console, and even use your fists to strike;
2、可以尽情的按压就像是玩街机游戏机,甚至可以使用拳头敲打;
3. This model requires the use of two magnets with a diameter of 10mm and a thickness of ≤ 3mm;
3、本模型需要使用直径10mm,厚度≤3mm的磁铁2个;
4. The thicker the magnet, the greater the pressing force;
4、磁铁厚度越大,按压的力度越大;
5. If magnets with a thickness of 1.5mm or less are used, the support in the following figure can be left intact.
5、如使用厚度1.5mm及以下的磁铁,下图中的支撑可以不拆除。

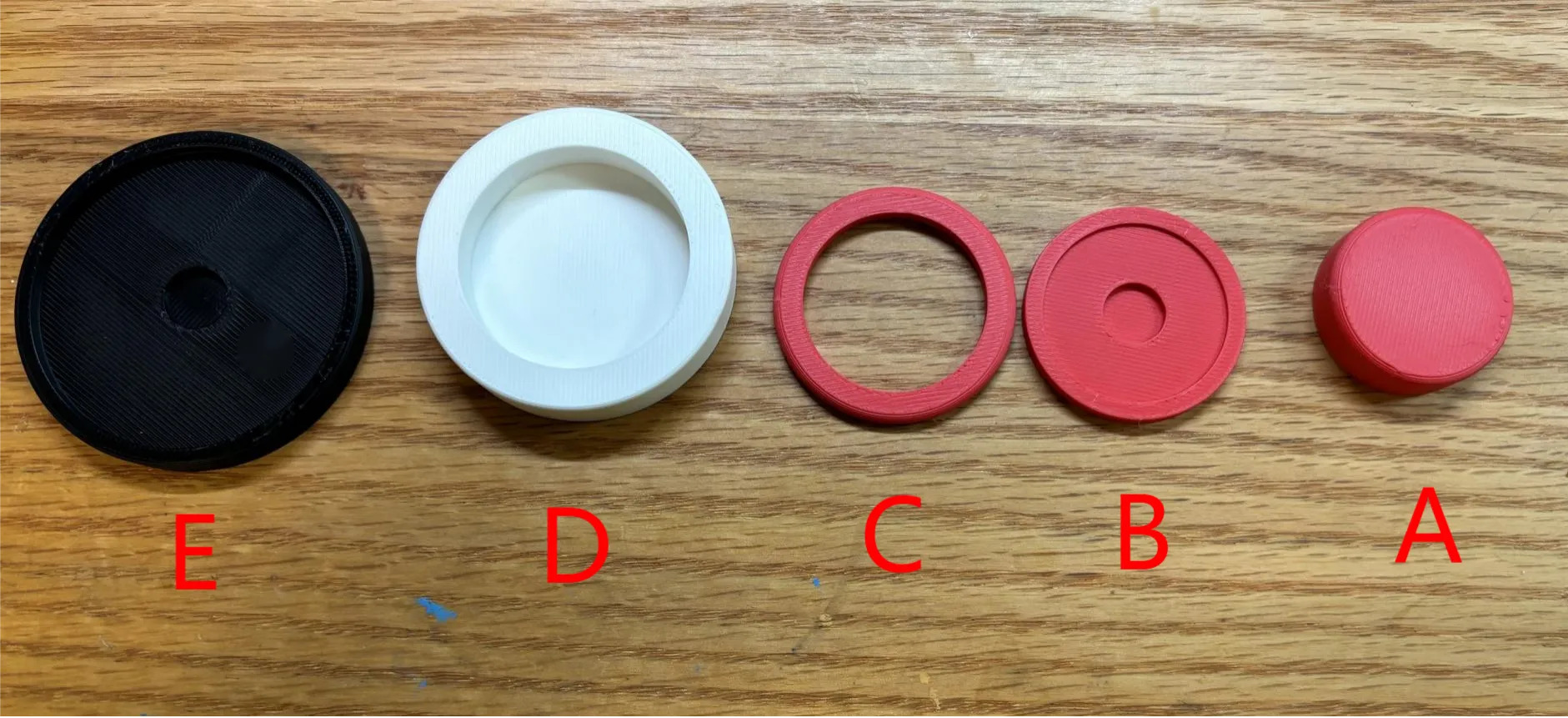

Installation steps:
安装步骤:

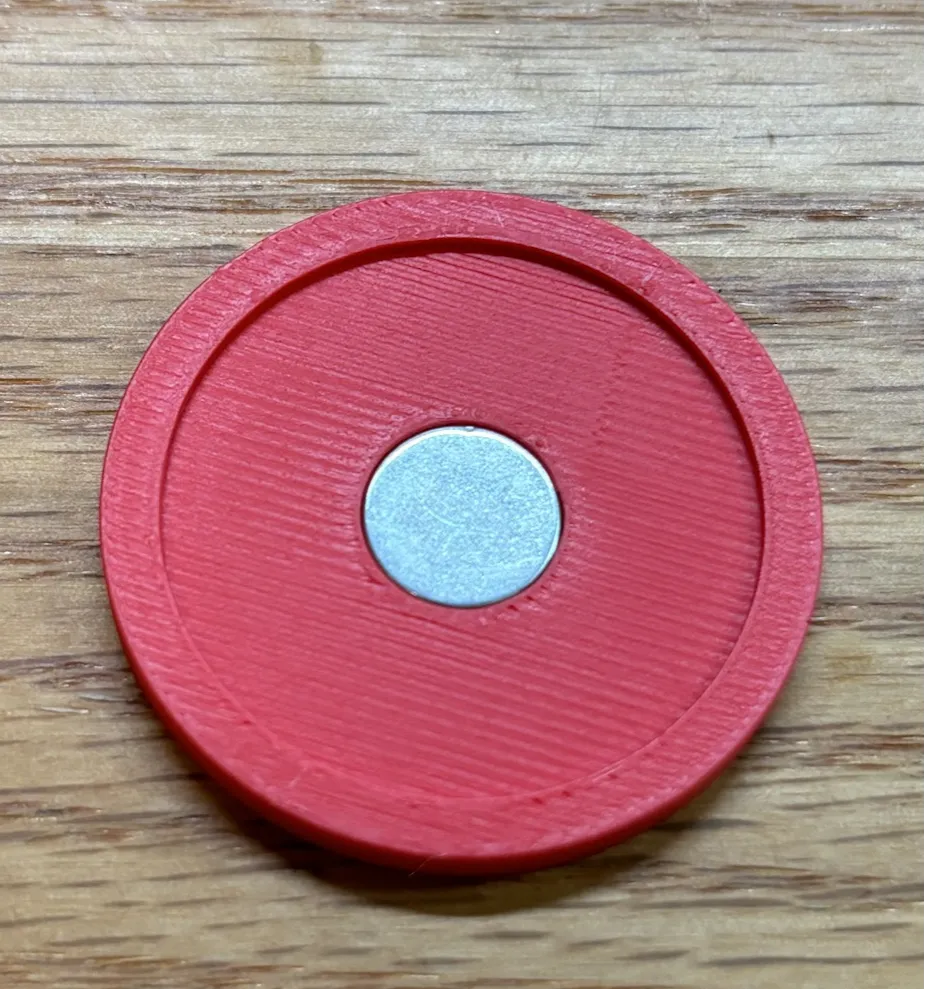

1. Add magnet to component B;
1、零件B加入磁铁;

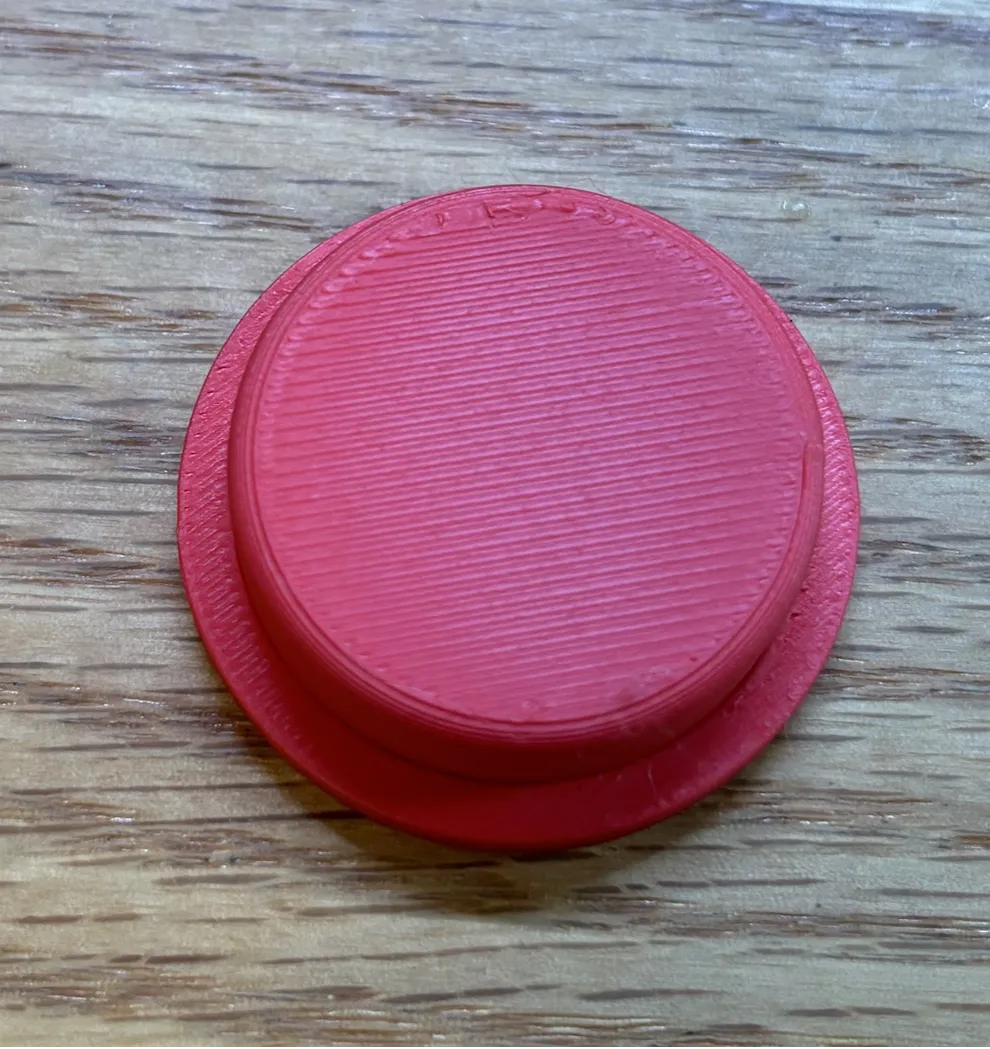

2. Part A is pressed into part B, and a little glue can be used for long-lasting stability;
2、零件A压入零件B,为了能持久牢固,可以使用一点胶水;

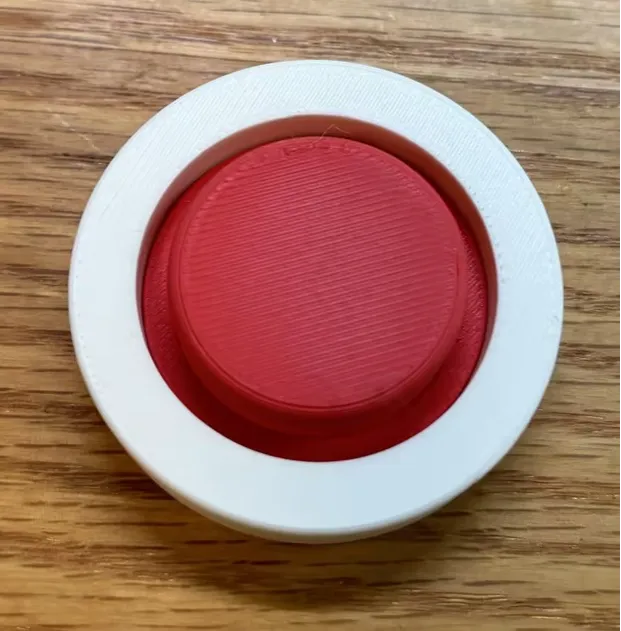

3. Place AB into part D;
3、将AB放入零件D;

4. Press part C onto ABD, which is the area of the entire model that requires the most adhesive, as using a 3MM magnet with too much force can easily cause C to fall off. However, using a small amount of adhesive is sufficient, and try not to cause the adhesive to overflow;
4、将零件C按压到ABD,这是整个模型最需要使用胶水的地方,因为用3MM的磁铁,力量太大容易使C脱落,但是使用一点点胶水就行了,尽量不要造成胶水外溢;

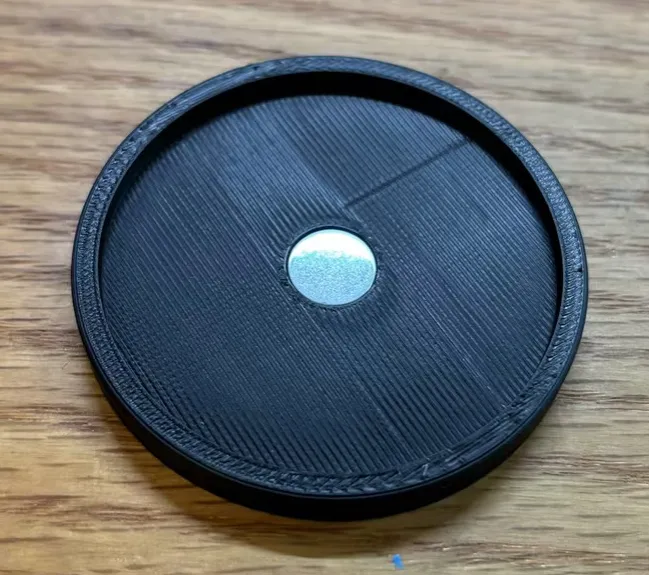

5. Place the magnet into part E, ensuring that the magnet used in step 1 has repulsive force;
5、将磁铁放入零件E,保证跟步骤1使用的磁铁是具有排斥力;

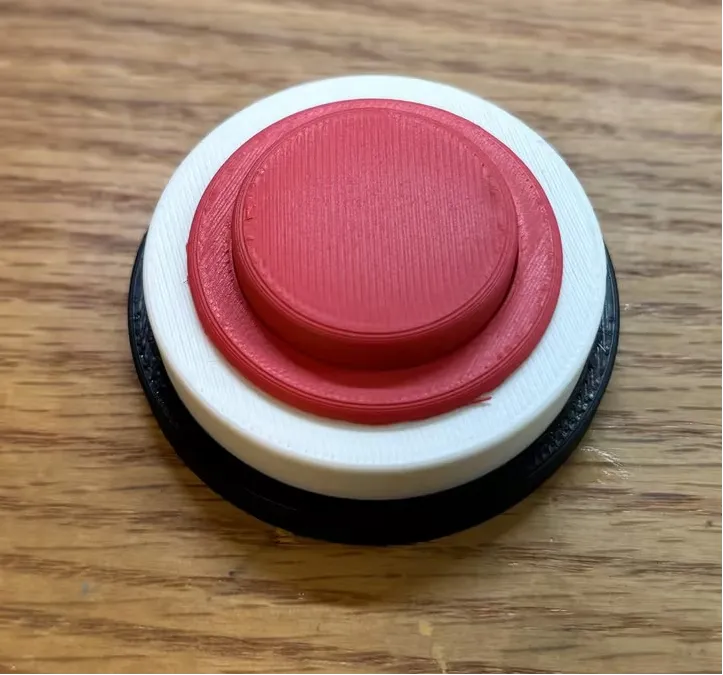

6. Press ABCD into part E.
6、将ABCD压入零件E。
