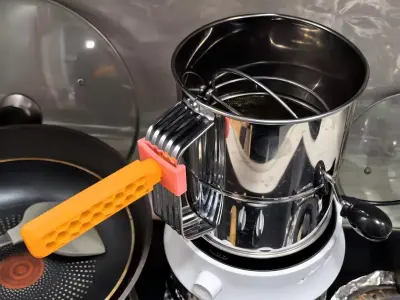

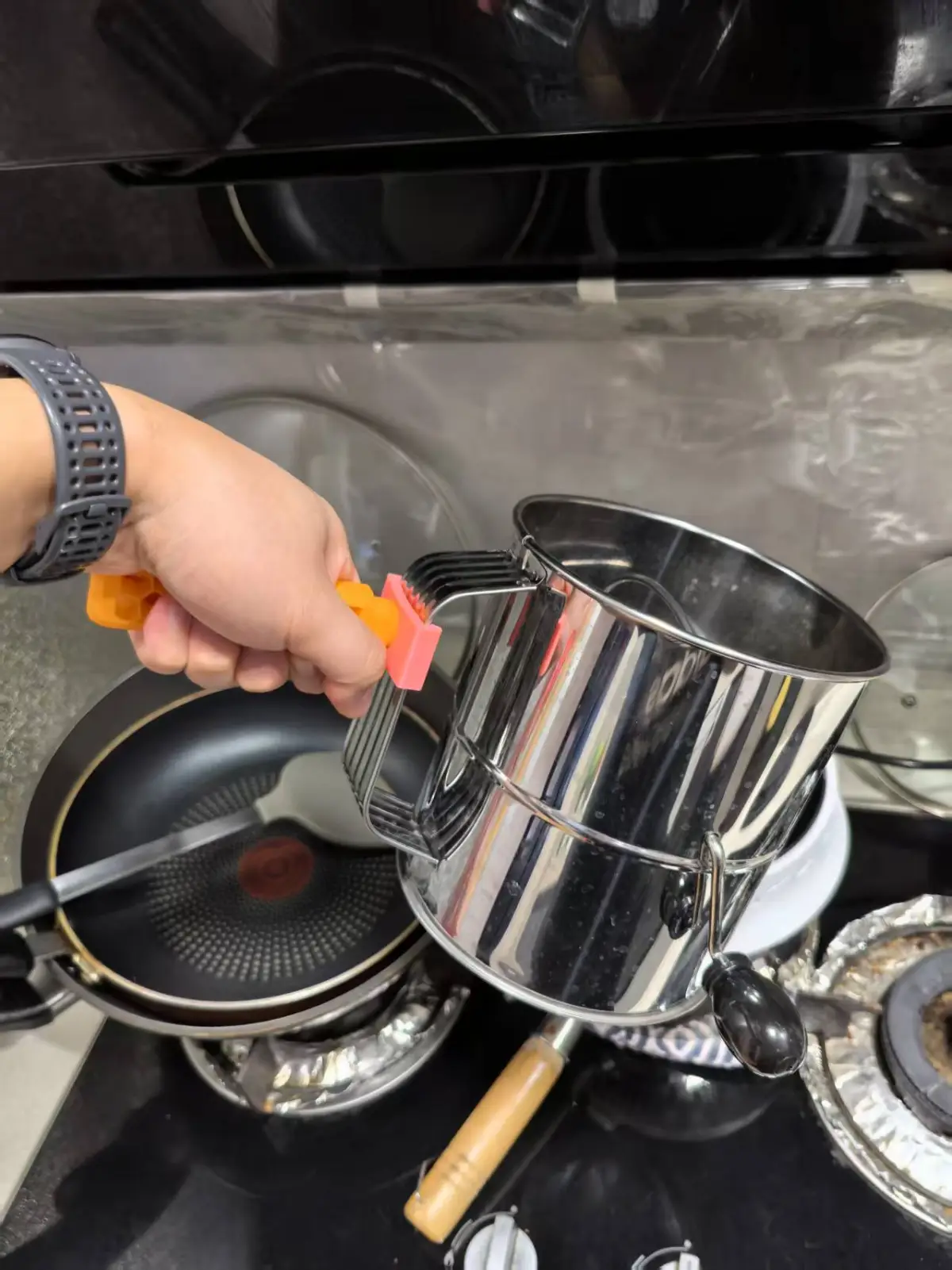

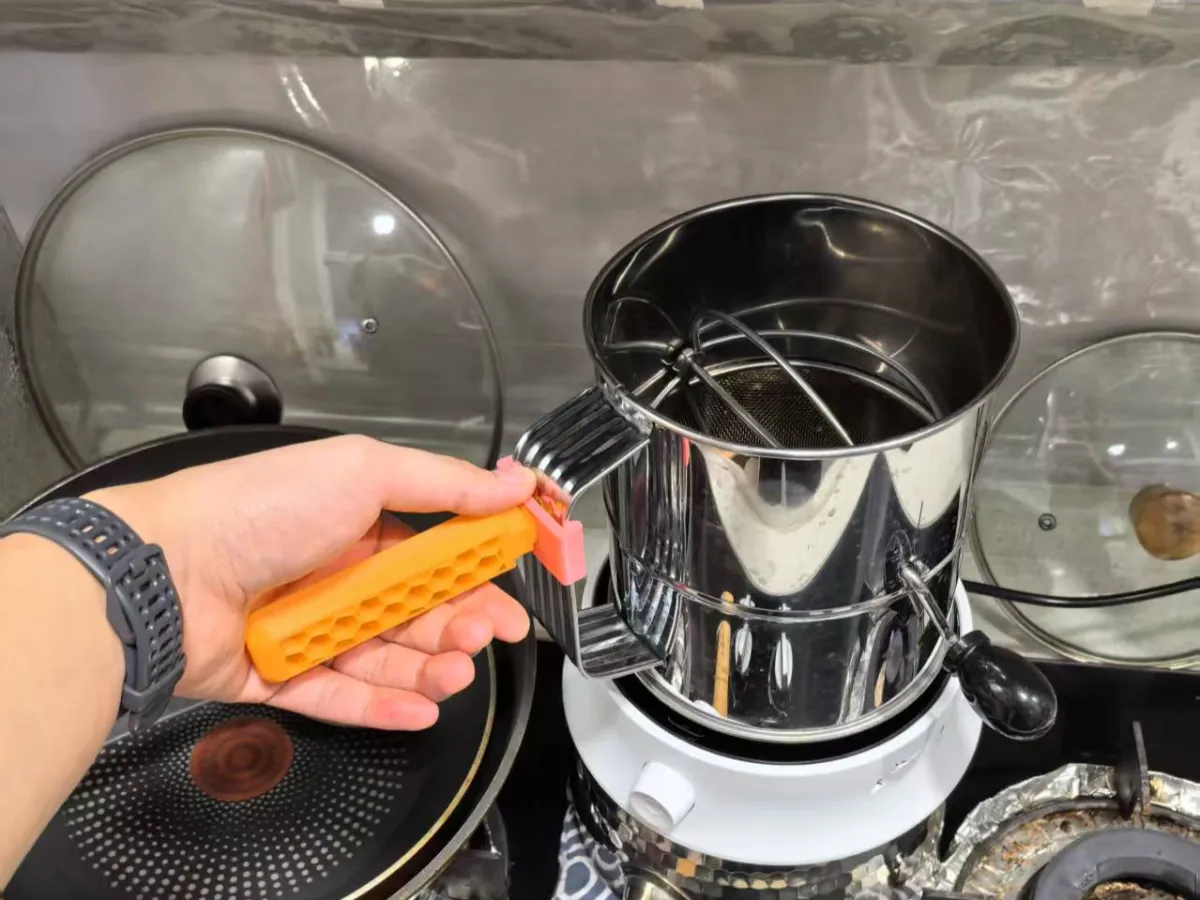

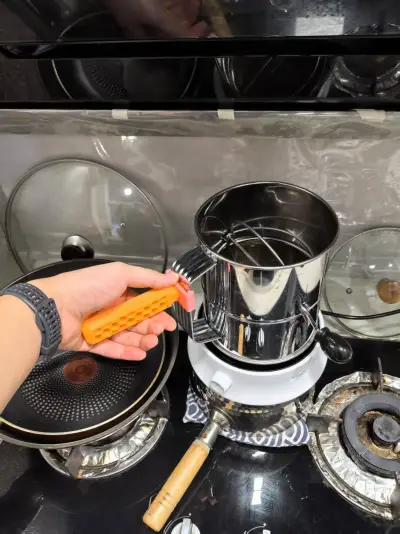

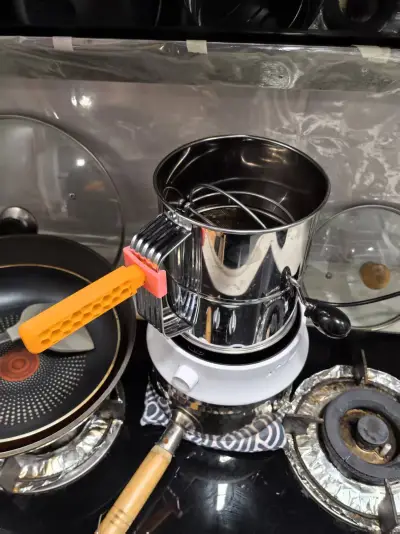

This is an add‑on accessory designed for the flour sifter—a true game-changer for coffee bean roasting. The original handle on the flour sifter was incredibly uncomfortable to grip, so we developed this detachable, collapsible handle that offers adjustable height for optimal comfort and convenience.

The model was created using Fusion 360. It’s been nearly a year since I first dipped my toes into 3D printing and modeling—and now I’m slowly starting to design some quirky yet practical little “useless but delightful” creations for my home. My design process has become much clearer, and this particular model beautifully incorporates several small FDM-related insights I’ve picked up along the way. There’s nothing quite like putting what you’ve learned into practice—it feels amazing!

1. At first, I only envisioned a solid, one-piece handle—but after considering storage, locking mechanisms, and height adjustment, I opted for a simple yet effective snap‑fit and threaded design. It’s straightforward, reliable, and easy to assemble.

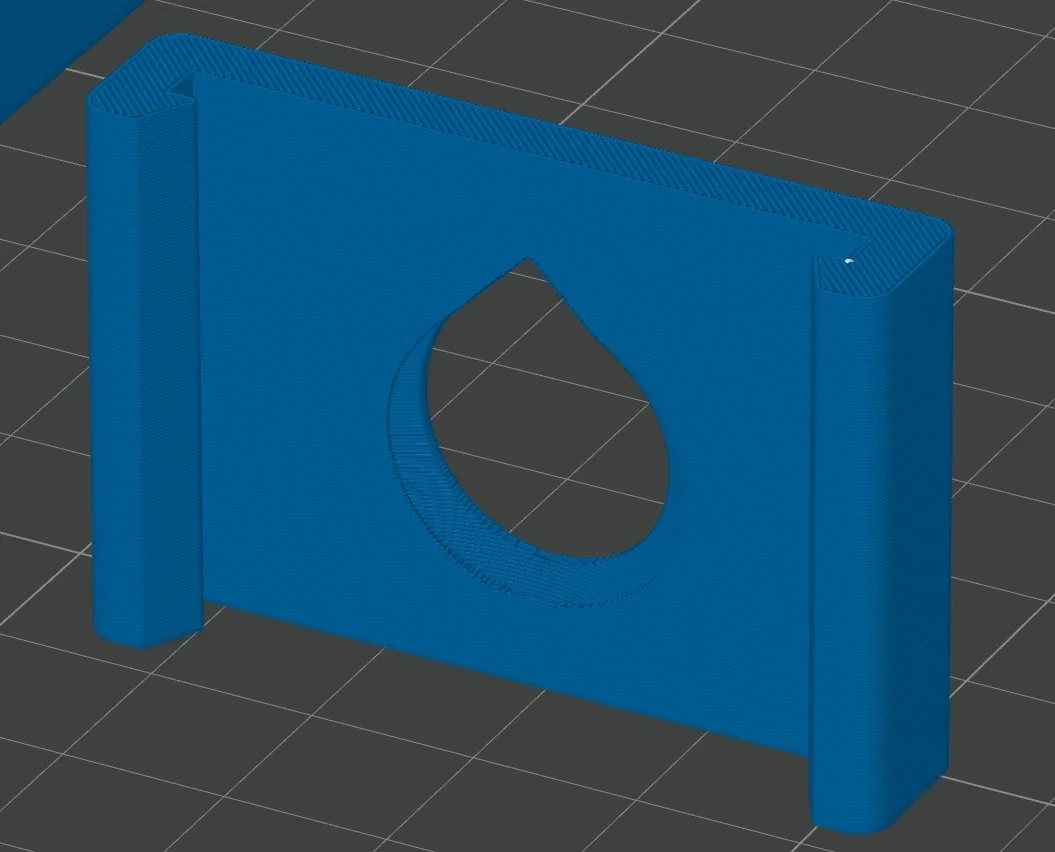

2. The teardrop‑shaped threaded holes not only prevent the top threads from collapsing against the rounded arc of the handle’s crown, but they also maintain the component’s functional integrity without compromising performance.

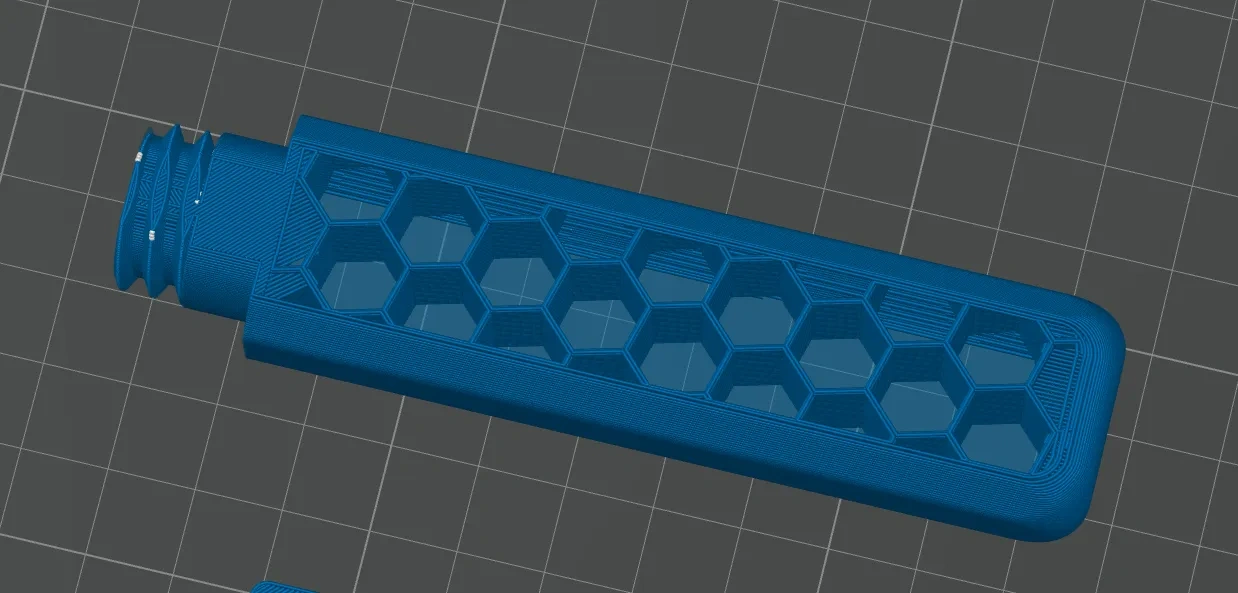

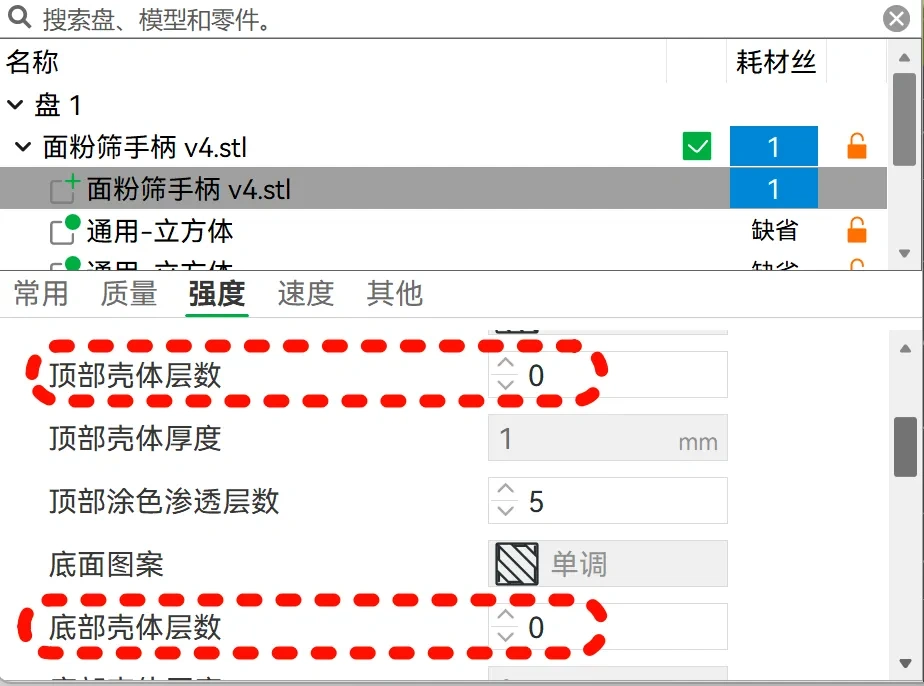

2. I wanted to create a hollow, honeycomb‑like structure for the handle, but I didn’t want to model it as a solid form. Instead, I simply applied a few clever tricks: removing the top layer, eliminating the bottom layer, and setting the infill to just 8%—a quick, efficient way to save time while still achieving the desired aesthetic (and yes, it does cut down on print time!).

(In fact, adding solid honeycomb patterns to the model would increase wall thickness, extend print time, and boost structural strength—but since this particular model doesn’t require such enhancements, I chose to take the shortcut and use this method to get the job done efficiently.)

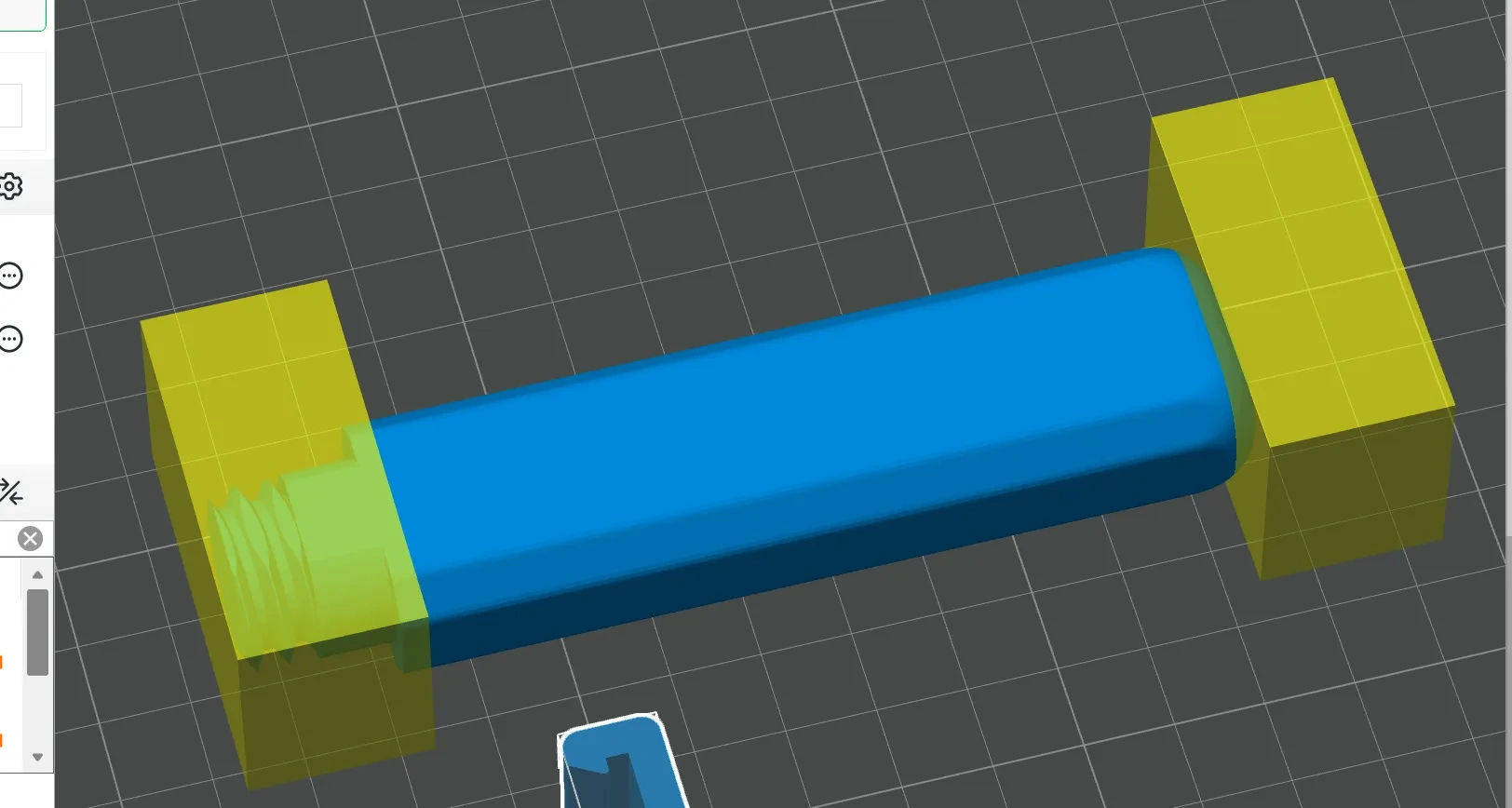

3. Since I only needed a honeycomb pattern in the middle of the handle, leaving the ends untouched, I used modifiers to exclude those sections during the final design. However, there were still a few minor excesses on the top and bottom surfaces—though not ideal, I haven’t yet found a perfect workaround to eliminate them entirely.

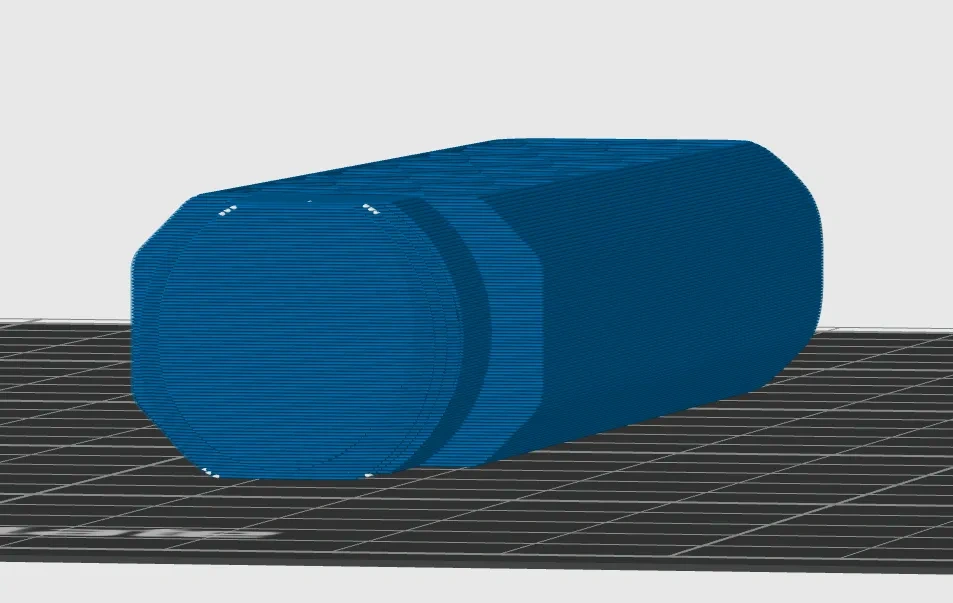

4. By flattening both the top and bottom surfaces—even when cutting through the threaded areas—the functionality remains intact. In fact, this approach eliminates the need for support structures around the threads, while carefully crafted chamfers and rounded corners enhance the overall grip and ergonomics.

Background Story—Just for Fun:

Recently, I stumbled across some flour sifter–based coffee bean roasting videos on XHS—videos by creators like “11 Bapa Manbanpai” and “Lonely Coffee Enthusiast.” Let me tell you, once you dive in, it’s impossible to resist! Coffee beans are getting pricier by the day, and even basic entry‑level roasting equipment can easily set you back over a thousand or even two thousand yuan. But with a humble flour sifter—priced at just over 20 yuan—as your trusty roasting tool, you’re instantly in the realm of cost‑effective genius. Pair it with a standard electric ceramic stove costing around 50 yuan, and you’ll have precise control over heat, silver skin removal, and smoke levels. If you’re ready to level up, you can even add temperature control and motorized features—though let’s be honest, most DIY enthusiasts are basically self‑taught experts anyway. If you’re interested, why not join me in learning the art of coffee bean roasting? I’ve been practicing weekly, roasting about ten batches of beans so far—haha!

Roasting is such a rewarding skill—you really do need to learn the ropes before you can look at those slightly over‑roasted beans in your hand and think, “Wow, these beans look just like my own life—dark, oily, and full of character!”
