Jeep Wrangler JL Lock Cylinder Retainer Bracket
Print Profile(0)

  • Earn points by adding print configurations

1

0

17

2

Released 2025-08-19
Details
Files(1)
Makes & Comments (0)

This bracket fits into the lock cylinder retaining bracket inside the front door of a Jeep Wrangler JL.

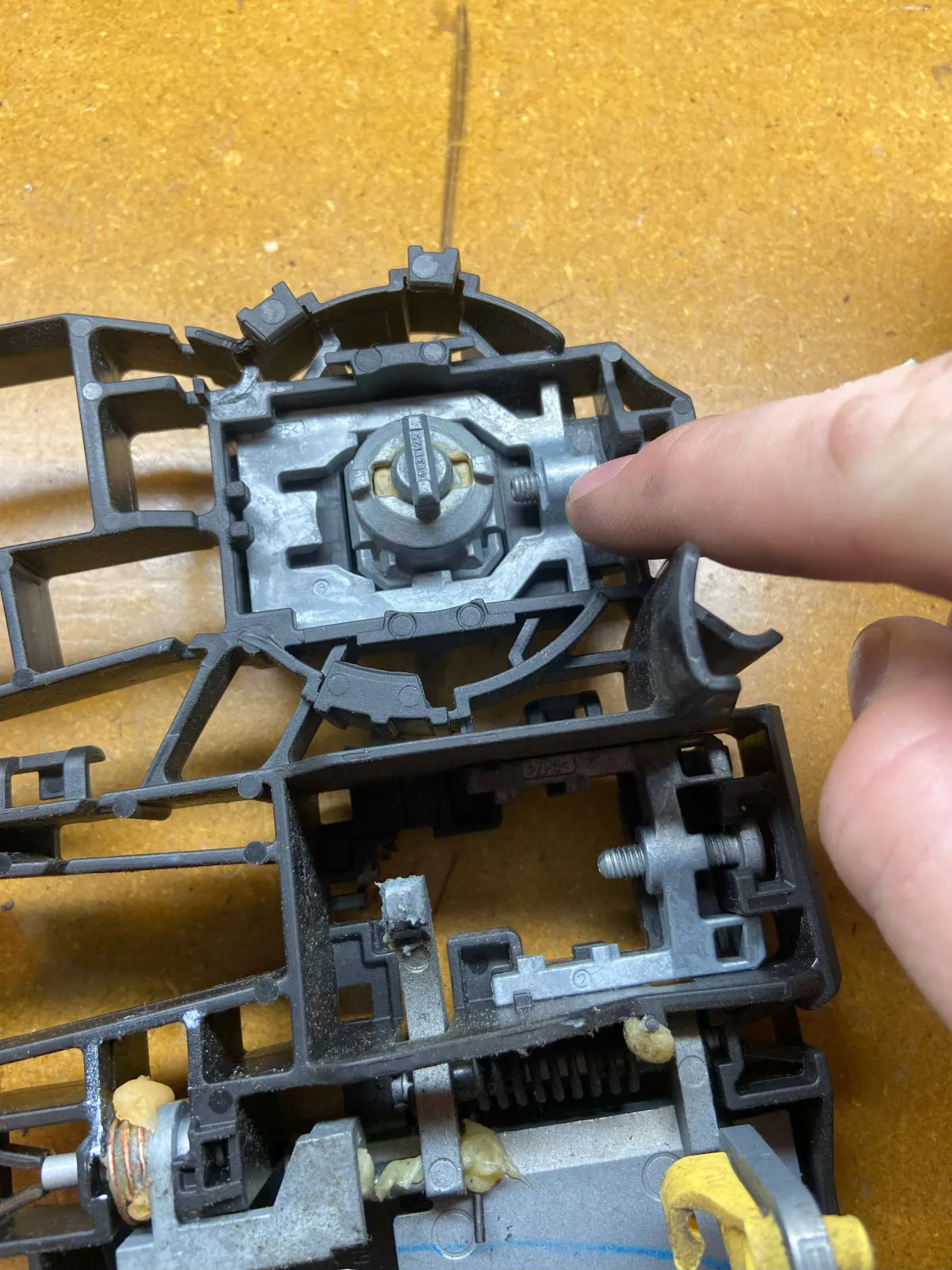

The lock cylinder fell out of my door the other day and after disassembly and inspection, I noticed the threads were stripped for the retaining bolt. I couldn't find a replacement part so I designed something to fix/reinforce the stock one.

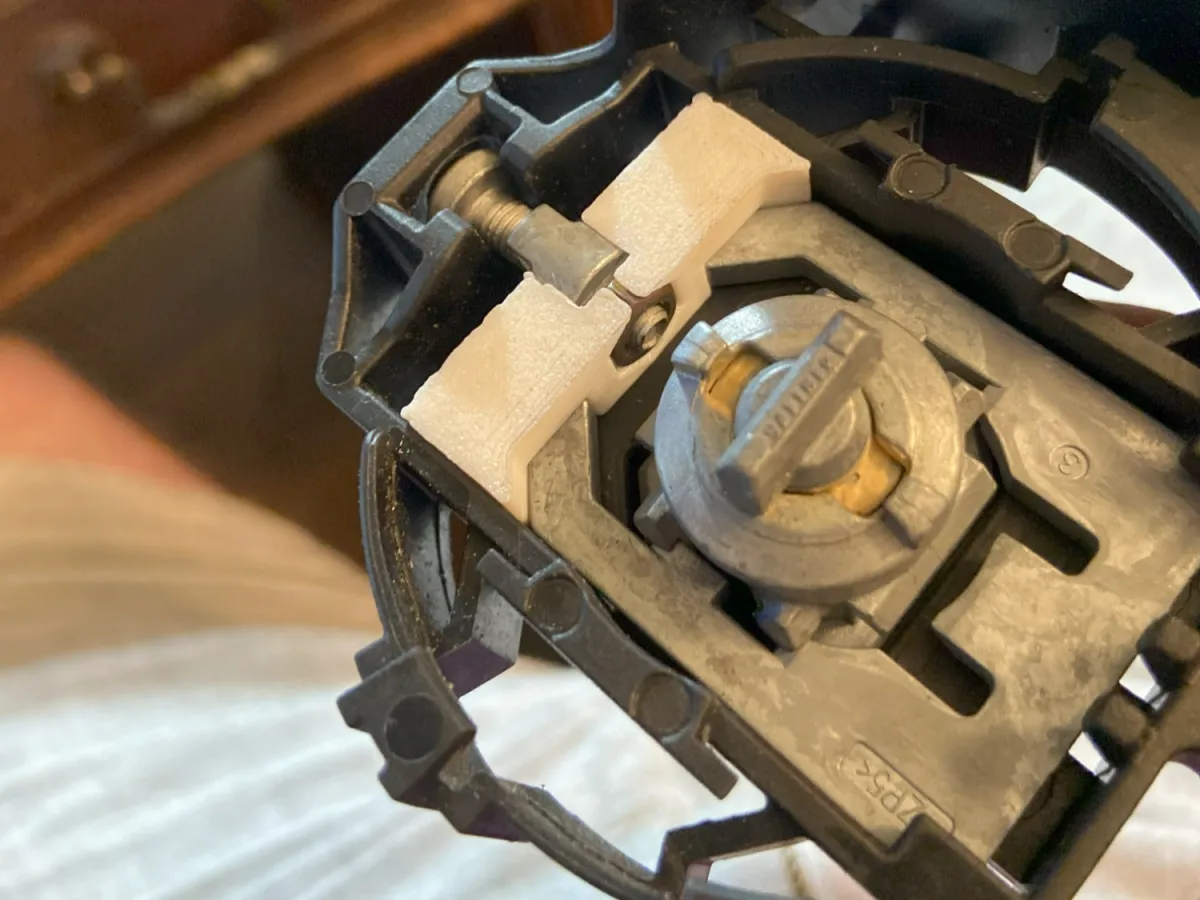

This clip fits into the stock bracket and holds an M5 nut in place to allow the stock screw to thread in pull the retaining bracket back in place, holding the lock cylinder in the door.



I printed this in PETG on my Elegoo Neptune 4 Pro with a .4mm nozzle, .2mm layer height.

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    M5 Nut
    1
    This works as the threads for the stock bolt to grab onto, pulling the bracket into place.
