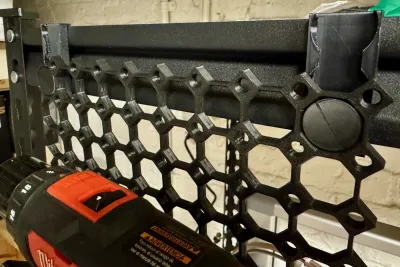

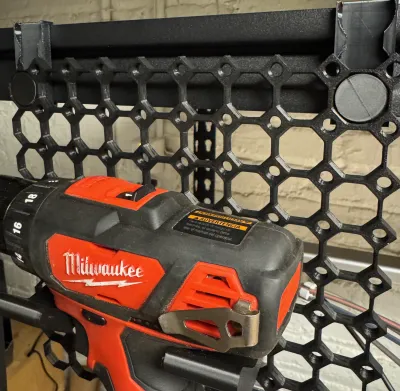

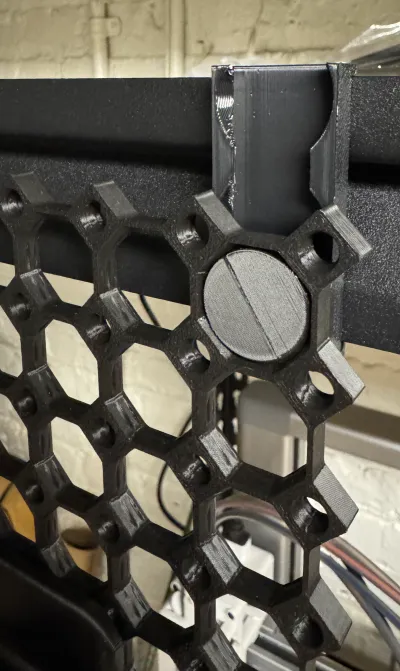

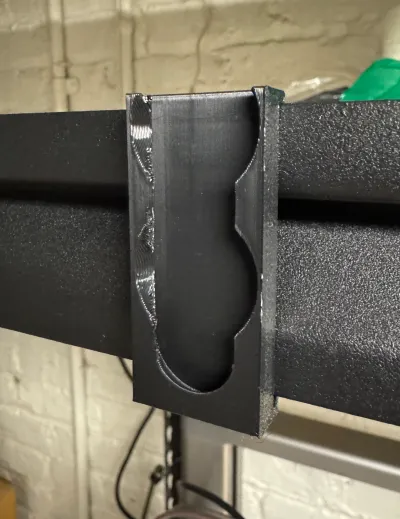

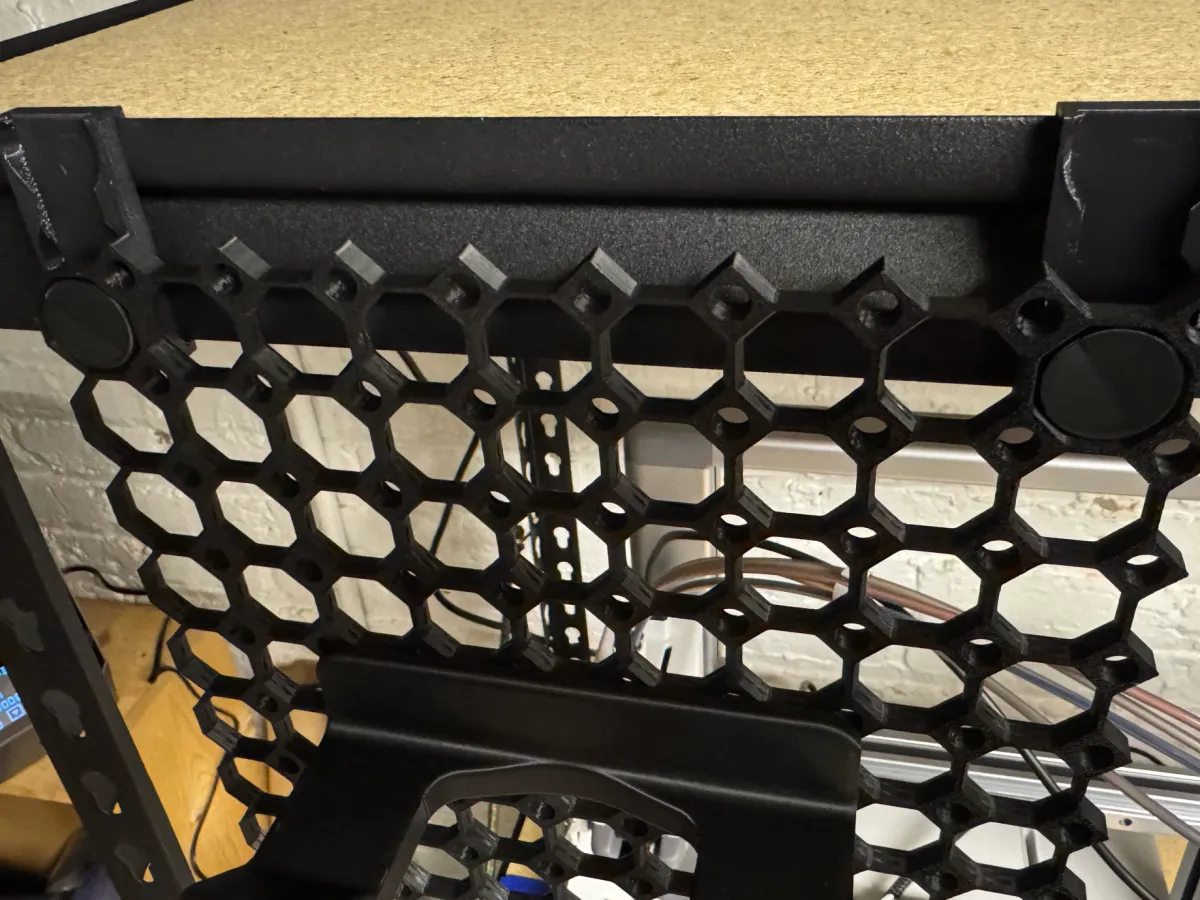

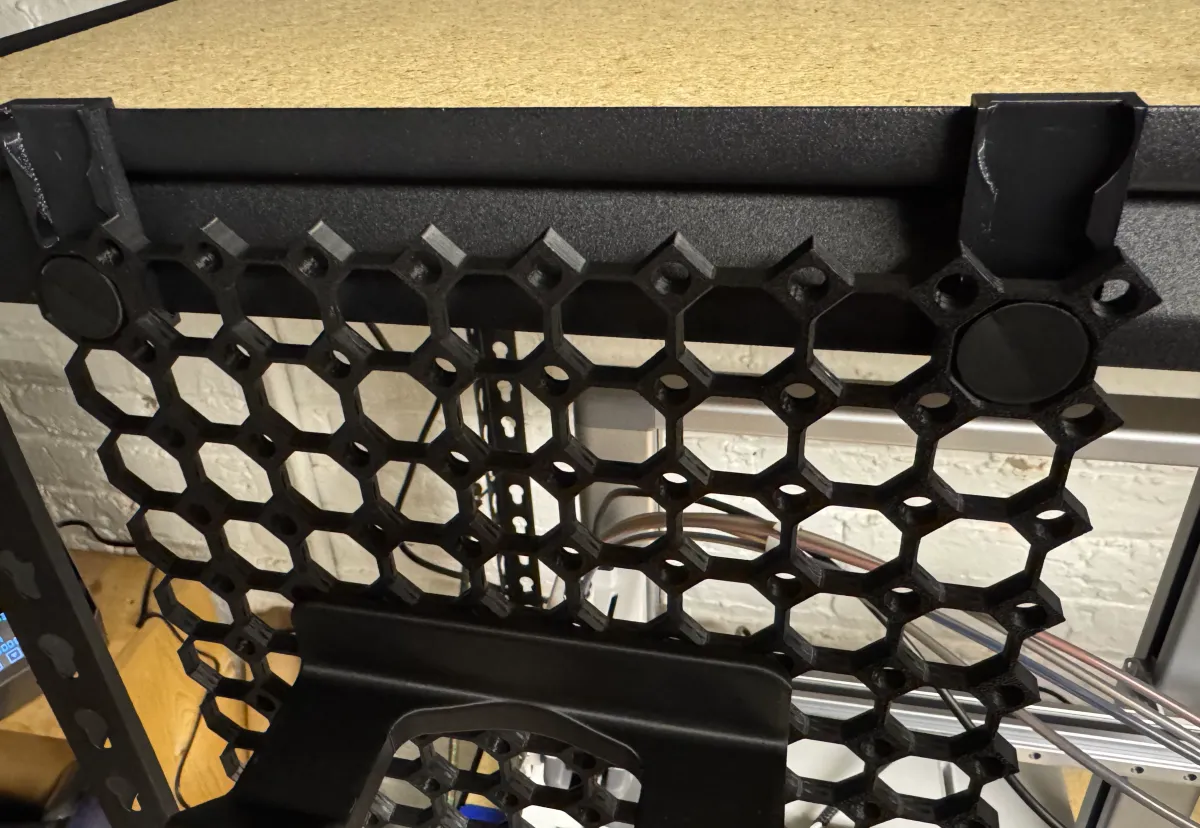

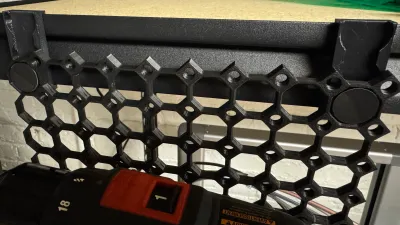

Parametric Rail Bracket for Multiconnect, Multipoint & GOEWS

This OpenSCAD-powered rail bracket is designed to work with popular mounting systems, including Multiconnect, Multipoint (Multiboard), and GOEWS. The script is fully parametric, giving you total control over dimensions, fit, and features—ideal for shelving, or rail systems like Muscle Rack.

✅ Features

• Customizable Backplate – Adjust width, height, and thickness for a precise fit
• Slot Configuration – Includes quick-release options, dimple scaling, and tolerance tweaks
• On-Ramp Support – Easier sliding for taller mounts or bins
• GOEWS Compatible – Add and position cleats to fit GOEWS rails
• Modular & Versatile – Ideal for rail, wall, or shelving setups, including Muscle Rack
• Advanced OpenSCAD Script – Fully parametric, built with flexibility in mind

💡 Compatible With

• Multiconnect ecosystem
• Multipoint / Multiboard
• GOEWS
• Muscle Rack / Edsal Shelving Systems

To Use

It takes a little force to push the mount onto the rail and to pull it off

🖨️ Printing Recommendations

• Print on side for best layer strength
• Use tree supports to minimize material and ensure clean overhangs
• I’ve uploaded a print profile that includes a bracket for Multiconnect, Multipoint, and GOEWS, specifically designed to work with Muscle Rack rails – check it out to get started faster!

🧠 Credits

Thanks to:

• @David D, @SnazzyGreenWarrior, and @MrExo3D for ecosystem contributions
• Jonathan at Keep Making for the Multiboard platform
• AndyLevesque for Multiconnect and GOEWS libraries
