Raspberry Pi HQ Camera Reference Model with 6mm Wide Angle and 16mm Telephoto Lens models
Print Profile(0)
17
1
Released 2025-08-01
UPDATE: 2020-07-08 : Update tripod mount stem in HQ camera model based on feedback in comments. GitHub source files updated as well.

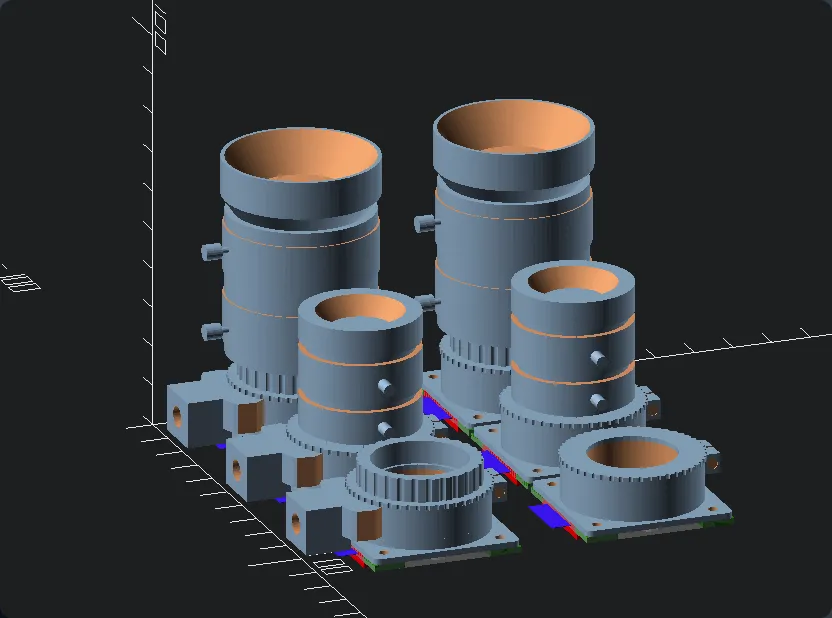

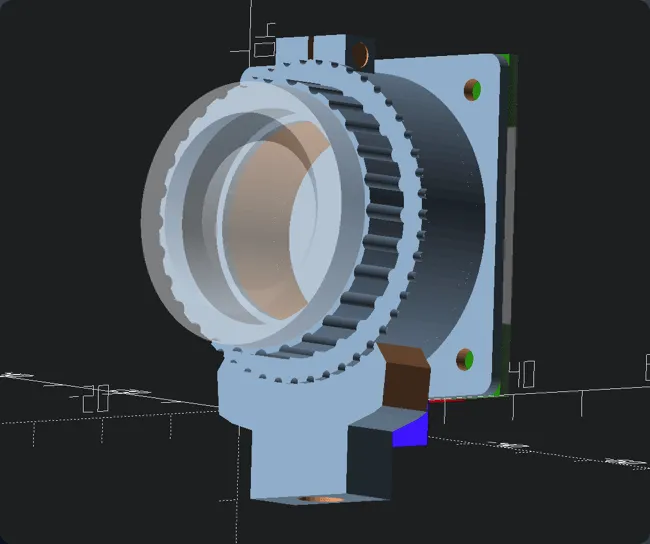

Model of official Raspberry Pi High Quality (HQ) Camera, released May 2020.
The camera .STL is for reference; the canonical source (.scad file) is maintained in GitHub. Refer to models repo
Includes:
- Raspberry Pi HQ Camera model
- 16mm "Telephoto" Lens model
- 6mm "Wide Angle" Lens model
Originality of the Model
The author declares that this work is their personally shared model
Original creator:
dpc
Reprint source:https://www.thingiverse.com/thing:4335497
This model is licensed under the following terms:
Credit must be given to the creator
