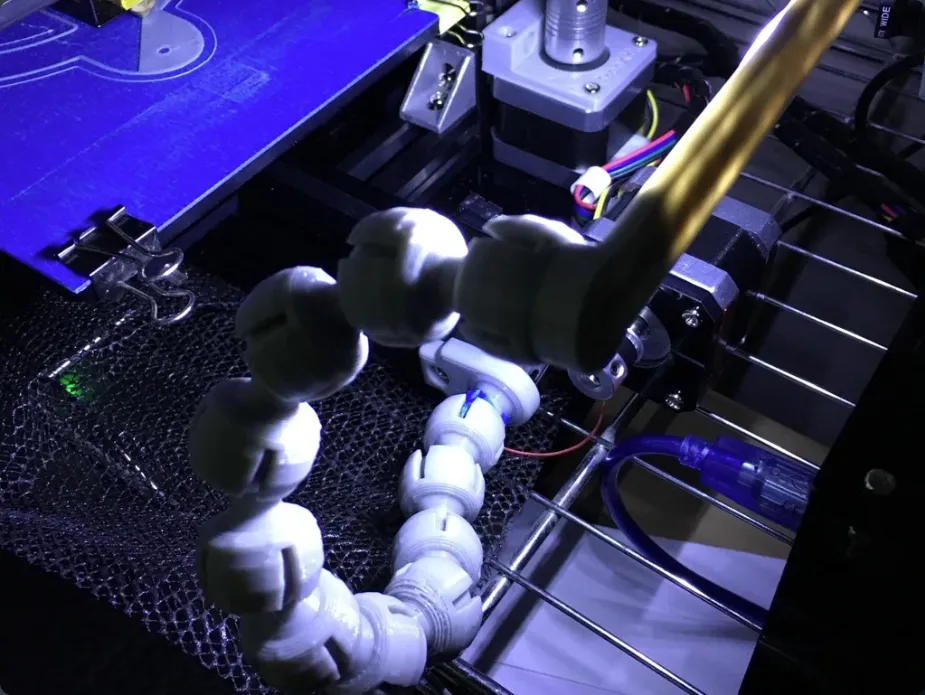

This is an all in one print (which I did on and for the Tronxy X1) for a ball and socket LED light. It uses 5050 white LEDs (two sections worth, 6 individual LEDs) and is useful for lighting up the build surface of the printer so that a camera is useful when the room lights are off.

I soldered the power for the light right to the 12v jack coming in to the printer so that when the printer is plugged in, the light is on.

This also provides a re-uploaded version of the OBJ file in the source project, in STL format both with and without a brim to make printing easier.

Update: Added all in one STL for 10x50 (5050) LED strips with 10 ball and socket links, base and lamp end. This project took a lot more effort to print because each link had to be printed individually. This makes it easy to print all at once.

Make sure you have really good adhesion as the links can be tricky to get stuck down. I used glue stick on blue tape.

Update: Added a built in brim that is meant to be broken off of each of the links

Update: Added Single Link with Brim built in

Update: Fixed the floating link issue on the small print bed version of the lamp

Files:

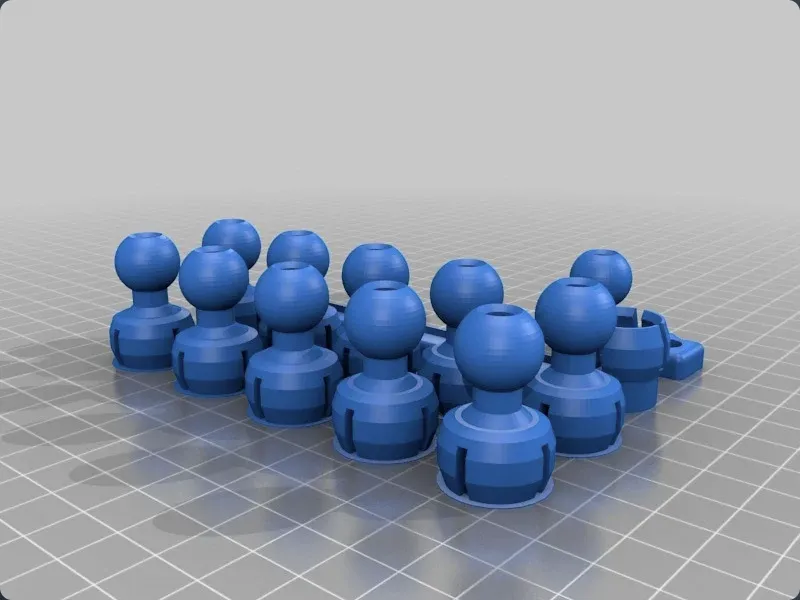

• LED_Lamp_All_In_One.stl - A base, 10x50 (5050) led strip head, and 10 links (complete lamp)
• Link_With_Brim.stl - A single link with an added brim to make printing easier
• Ball_link.obj.stl - The original, unmodified link with no brim, only converted to STL
• LED_Lamp_All_In_One_Small_Bed.stl - A base, 10x50 (5050) led strip head, and 10 links (complete lamp) - Fits in 120mm x 120mm x 120mm for MP Select Mini
