GeeeTech Prusa i3 Aluminum MK8 Cooling Fan Bracket
Print Profile(0)

  • Earn points by adding print configurations

0

0

1

1

Released 2025-07-23
Details
Files(3)
Makes & Comments (0)

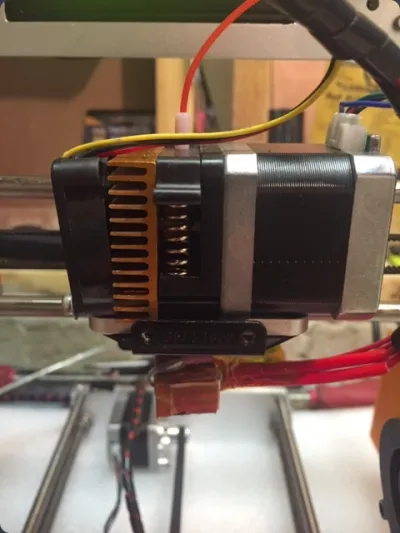

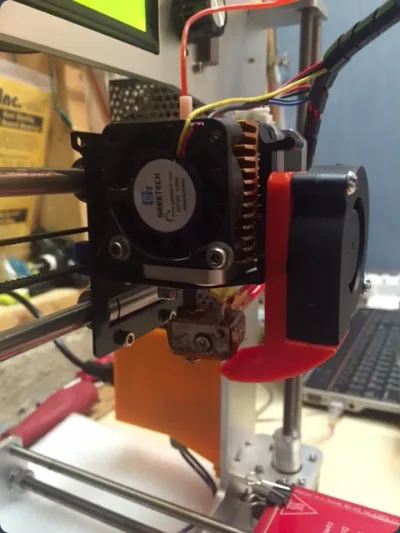

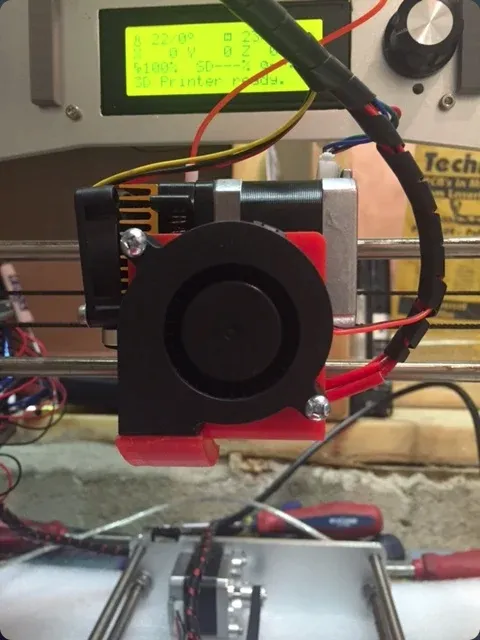

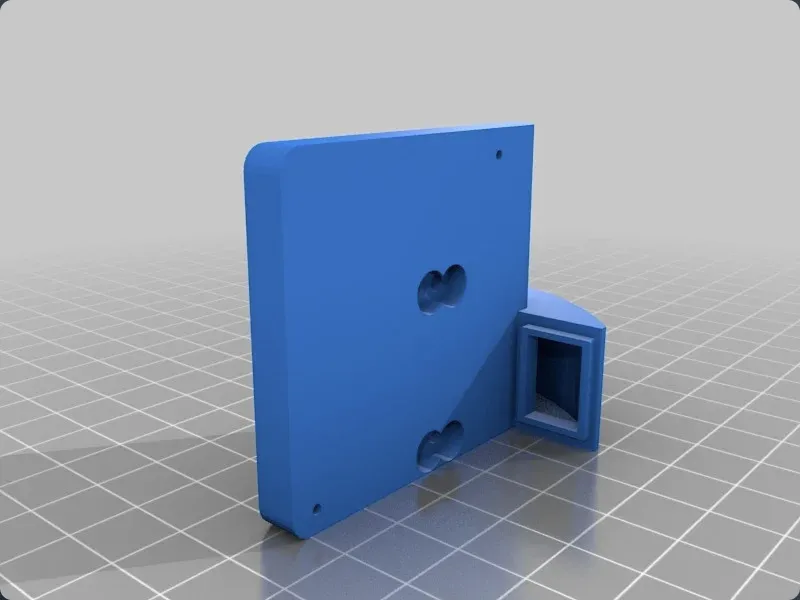

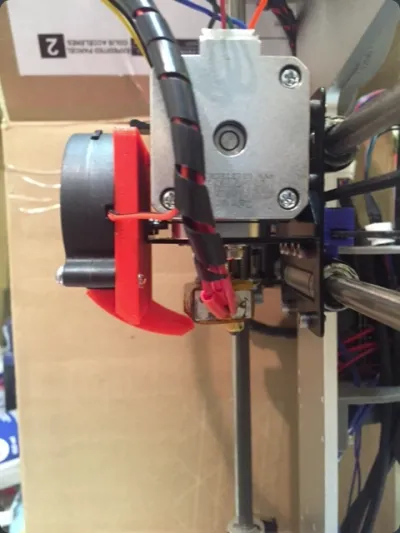

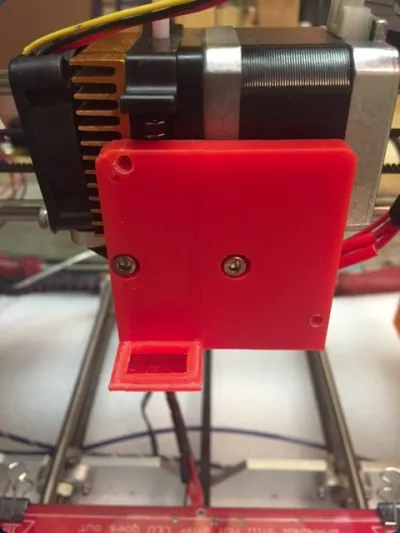

My GeeeTech Prusa i3 Aluminum printer came with a metal extruder bracket and I needed to make an adapter for the cooling fan. The extruder bracket had two existing M3 holes. This bracket utilizes the holes. I used M3 x 10mm screws and countersunk the holes so that the blower fan could mount flush. The holes for the fan are just pilot holes as I ended up tapping 6-32 threads into them.

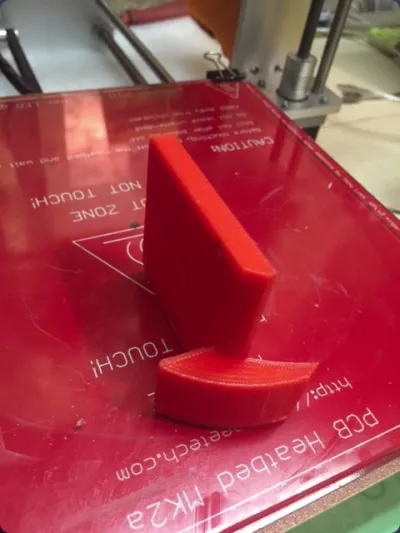

I printed this with PLA at 200 Deg C on the nozzle and 60 Deg C on the bed. I used 100% infill and a 0.2mm height.

Originality of the Model

The author declares that this work is their personally shared model

Original creator:
LiquidTick
Reprint source:https://www.thingiverse.com/thing:1684483

This model is licensed under the following terms:

Credit must be given to the creator

Models(3)

  • GeeeTech_Prusa_i3_Aluminum_MK8_Cooling_Fan.stl

    47.15 KB

    2025-07-16

  • GeeeTech_Prusa_i3_Aluminum_MK8_Cooling_Fan_Bracket.dwg

    538.84 KB

    2025-07-16

  • GeeeTech_Prusa_i3_Aluminum_MK8_Cooling_Fan_Bracket_mm.stl

    62.39 KB

    2025-07-16
