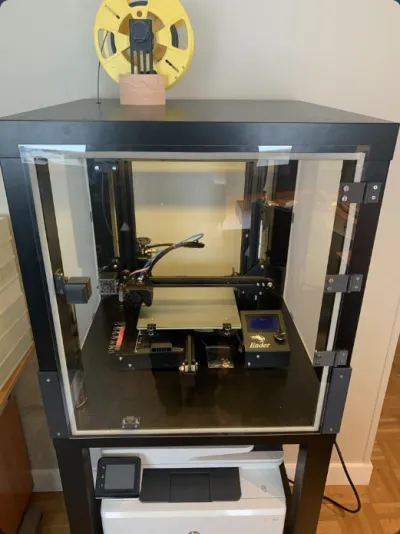

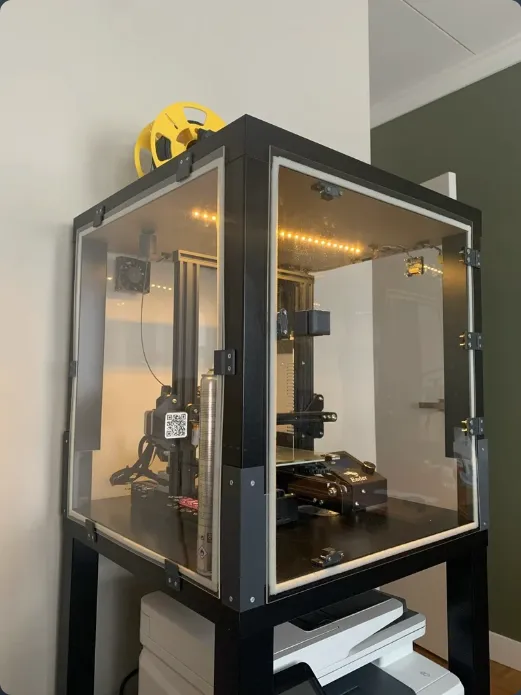

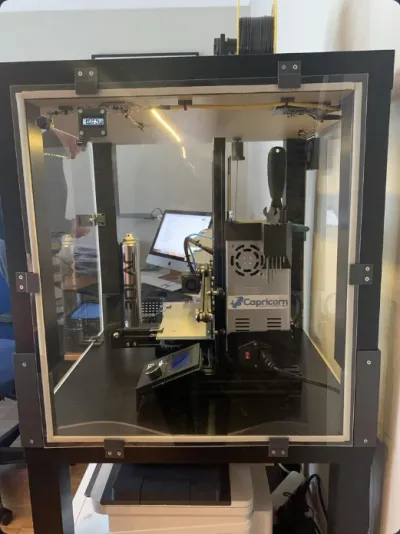

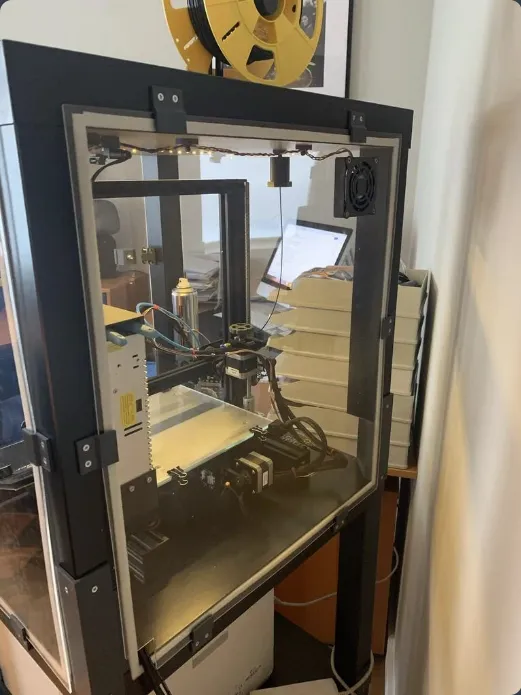

Basic LACK enclosure for the Ender 3.

It includes a throughput with M7 threading, I advise to go over/through this thread with a tap, it works like a charm after that. The 'tube' at the end is for a sponge or other filament cleaner solution.

The fan cover is for a 70mm fan.

The acrylic sheets used are 2mm, together with some foam tape (~1mm) so the clamps are designed to have room for 3mm.

I used 3mm screw to fasten the pieces to the LACK tables (don't tighten them too hard as the print might crack), M5 bolts for the hinges and M3 bolts for the magnet holders and OLED (1.3") cover.

To print the magnet holders you must pause at the layer hight just before the hole gets covered, I've left 3.2mm for neodymium magnets. I use some double sided tape to stick the magnets so that they wouldn't get stuck on the print head (after a failed first print).

I printed the clamps flat with support to make sure that the print wouldn't crack because of the screws.

I plan on moving the PSU outside of the enclosure in the nearby future.
