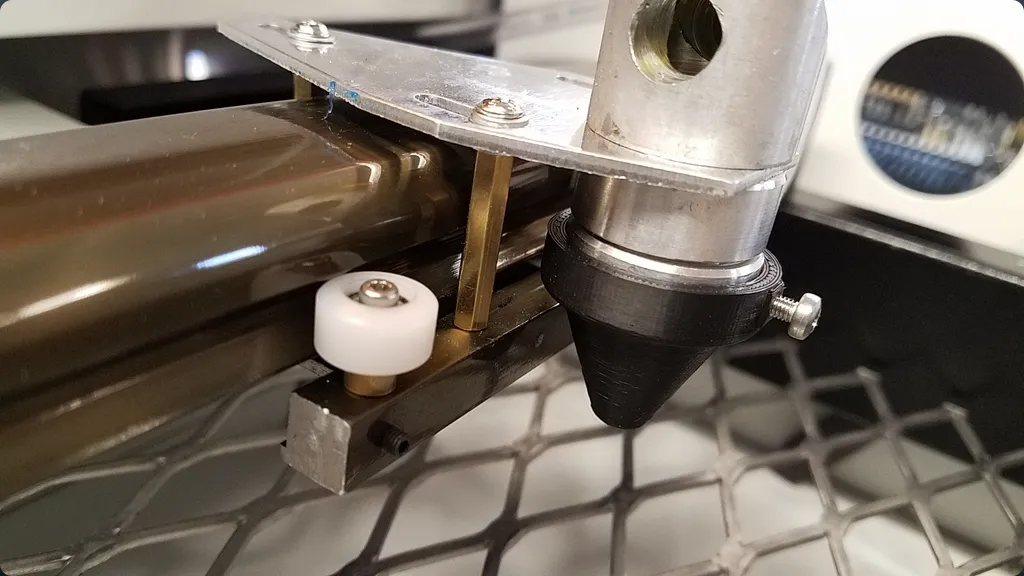

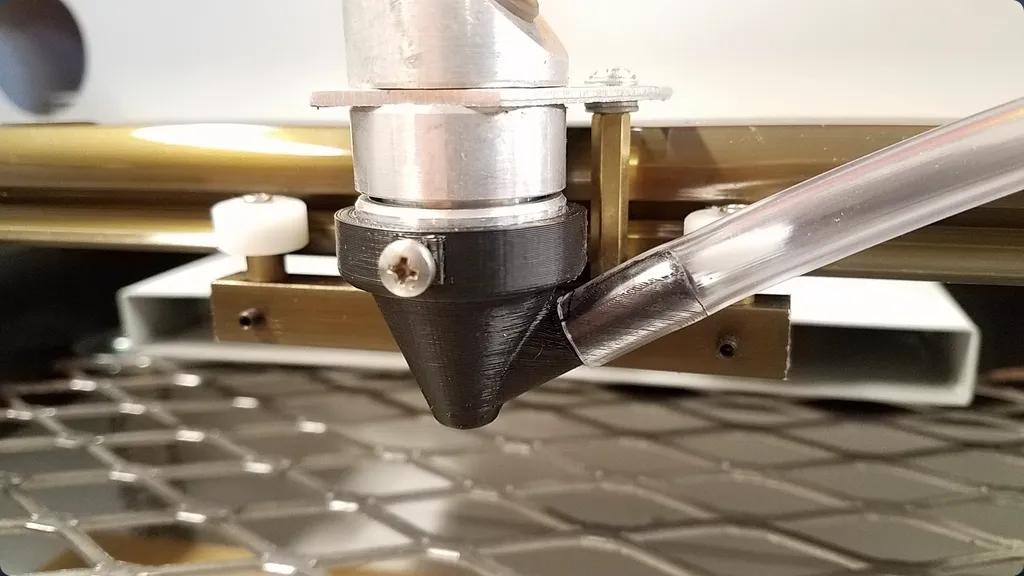

I tried several air assist nozzles that are out there and they all had interference with a cross beam under the mounting bezel so I could not use them without modifying them. For this one I made the cone area recessed so that interference is gone. I also put the fastening screw at the front which made it easier to install. The support I modeled into the part so I could build it without supports anywhere else and are easily trimmed off.

Originality of the Model

The author declares that this work is their personally shared model

Original creator:
rynkidink

This model is licensed under the following terms:

Credit must be given to the creator

Models(1)

  • Air_Assist_Only3.STL

    443.73 KB

    2025-07-04
