Rubber Band PCB Vise
Print Profile(1)
- 0.2mm layer height, 2 walls, 10% infill
1-disc
PLA
Designer4(1)
48
12
Released 2025-05-28

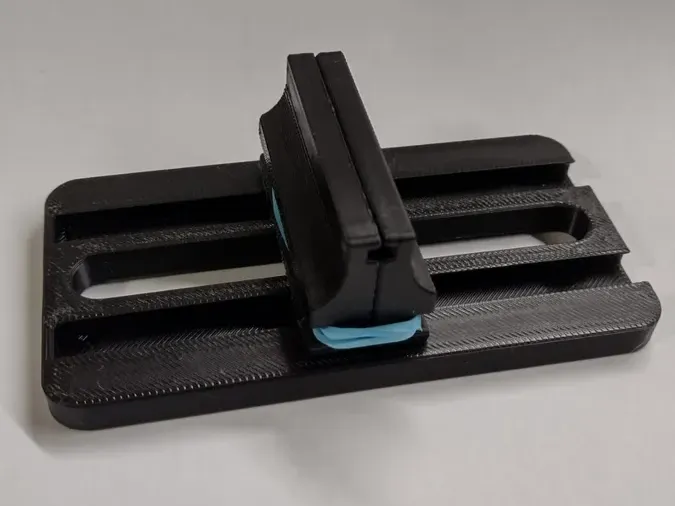

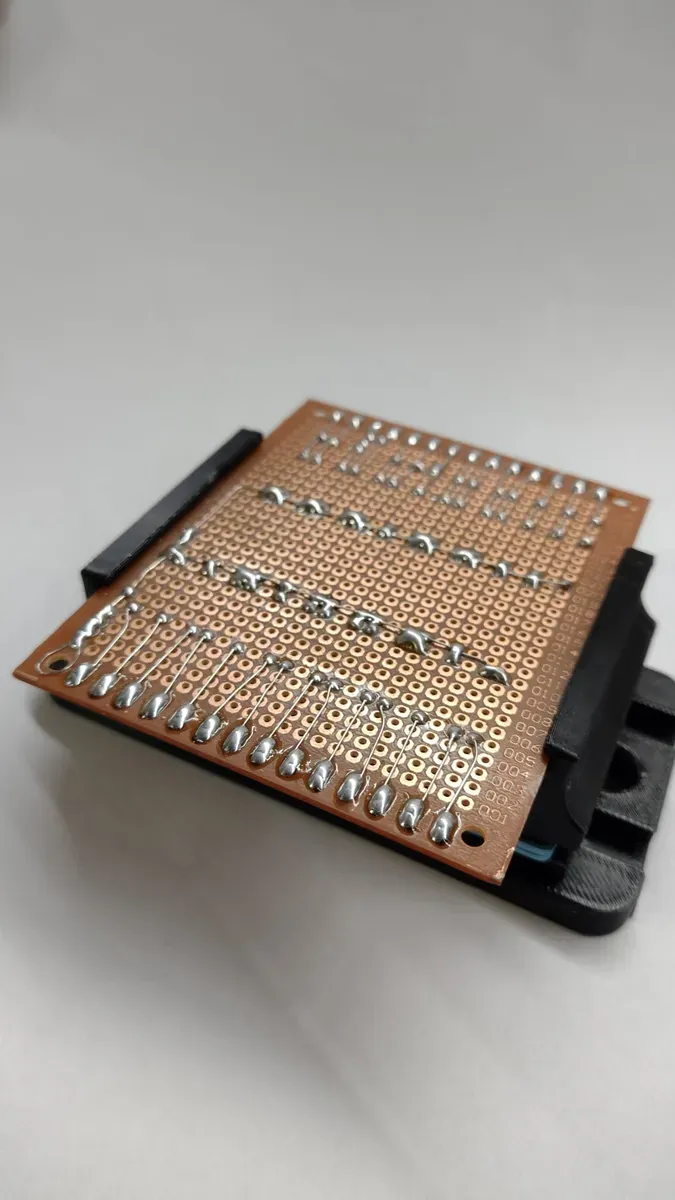

A simple PCB vise that uses rubber bands to hold small boards (up to 80mm) in place while you work on them.
Print and slide the 2 clamps in the base, and add the rubber band on them, into the lower slot.
If needed, the vise can be screwed into the workbench using the 4 screw holes.
Bill of materials
- NameQuantityNotes
- 1Rubber band1
- 2Screws (optional)44mm diameter
Originality of the Model
The author declares that this work is their personally original model
This model is licensed under the following terms:
Credit must be given to the creator
Remixes must be shared under the same license
Models(4)
base.stlDesigner
86.41 KB
2025-05-28
- clamp1.stlDesigner
61.90 KB
2025-05-28
- clamp2.stlDesigner
61.90 KB
2025-05-28
- vise.3mfDesigner
90.75 KB
2025-05-28
