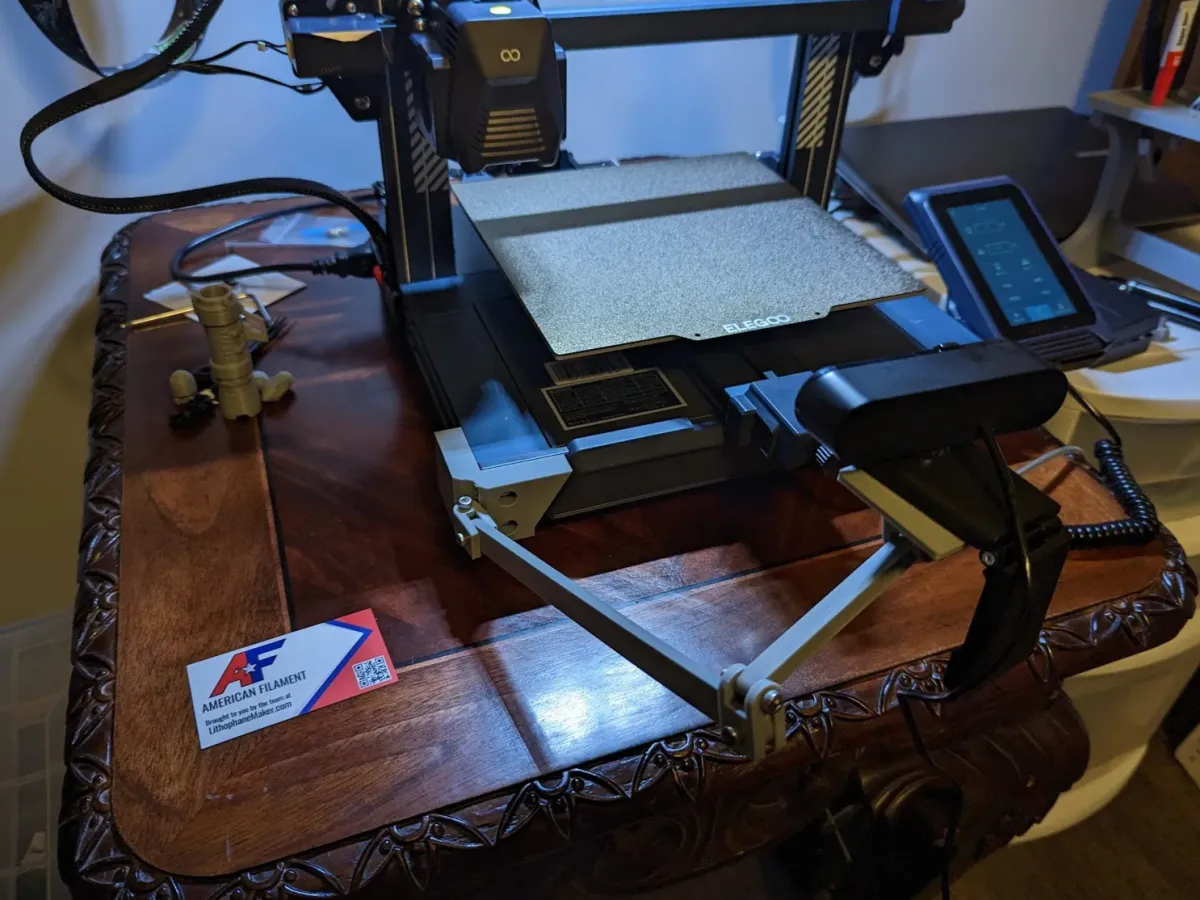

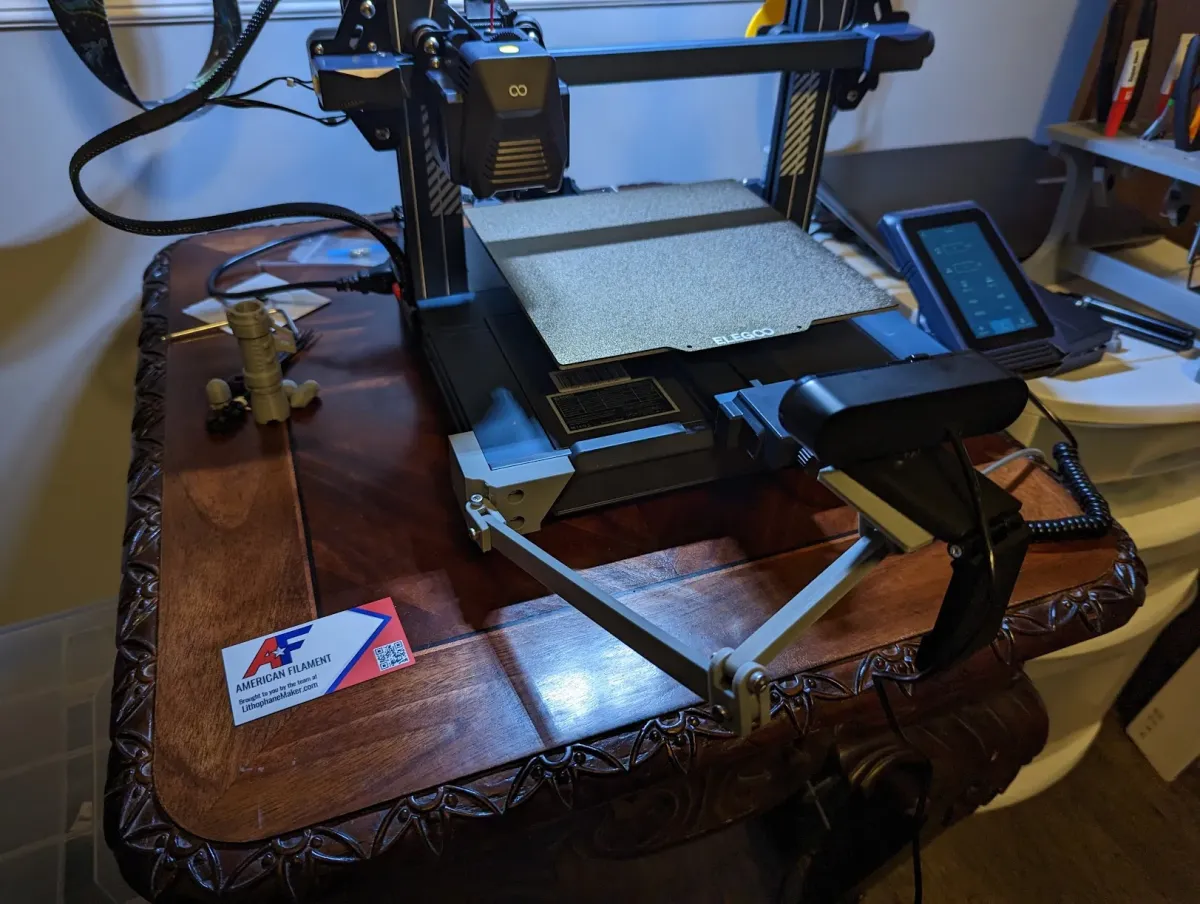

This is an articulating corner mount for my Neptune 3 Pro, which if the spacing on the corner bolts (10mm) is the same as that on the Plus or Max, it should work on those too. There's a platform with a M6 hole to be able to mount a webcam or whatever is needed, as long as you have the proper screw for the camera mount.

There's a phone cradle as well, designed for a pixel 3, but as long as your camera notch looks through the cutout, you shouldn't have any issues, other than me not testing it. Its a carry over from the fixed mount I did.

MAKE SURE TO PRINT 3x CORNER JOINT.STL (included in 3mf file already)

Everything should be able to be printed without supports.

15% gyroid infill (25% grid or triangles would work)

no supports

Elegoo PLA @ 210 C

PARTS:

6 - M4 x 20 socket head bolts

6 - M4 nuts

2 - M5 x 16 socket head bolts (Attaches to Neptune 3 frame in place of factory bolts)

If using phone cradle

1 - M6 x 16 socket head bolt

1 - M6 nut

If you do not have socket head bolts and only have the hex head, I've included the finger screw head from another file.
