Summary

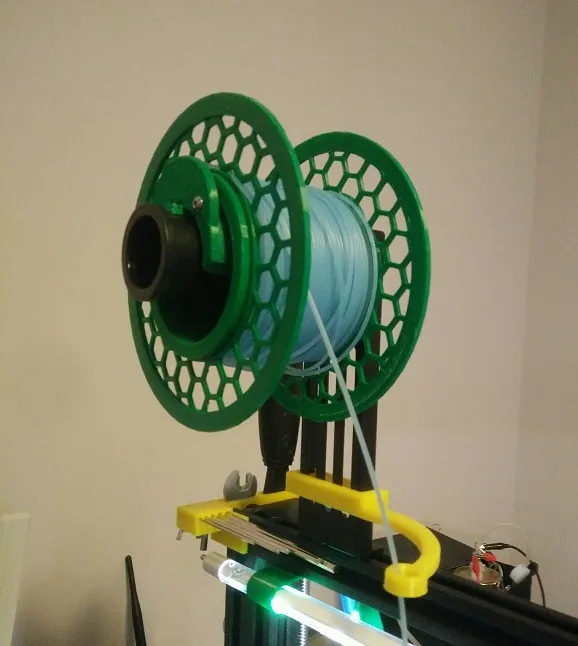

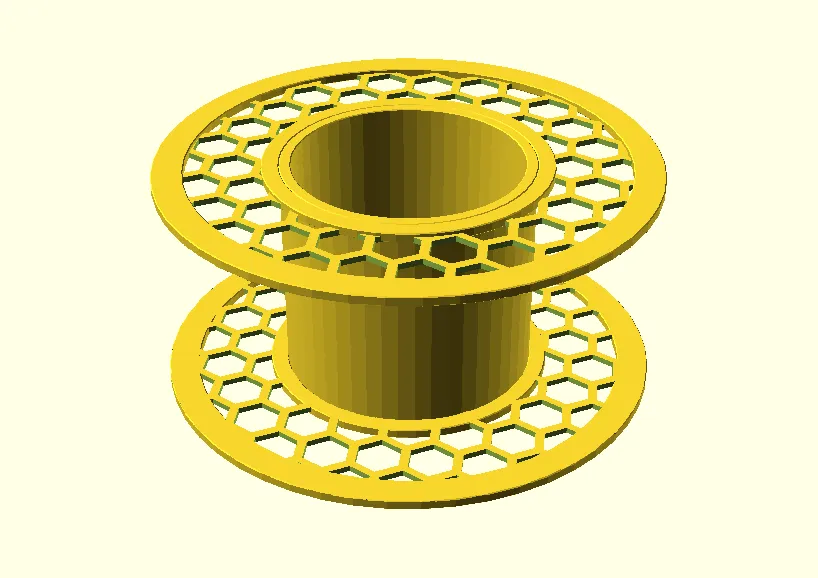

This is a spare filament spool which I have designed to hold a shorter length of filament (e.g. leftover ends joined together into a longer strand). It is modelled from a regular Creality PLA spool, but only 130mm (5 inches) in overall diameter. The spool sides are formed as hexagonal meshes to save weight and material. The spool fits the Ender 3 and similar machines.

It is printed in three pieces, two sides and a central spindle. These are press fit together and permanently fixed in place with some crazy glue.

Material PLA (or whatever)
Temperatures 195°/55°
Nozzle 0.4mm
Layer height 0.25mm
Speed 50mm
Infill irrelevant
Support no
Adhesion brim 5mm
