Drawer Guide (30x7mm)
Print Profile(0)
7
2
Released 2025-05-10
Summary

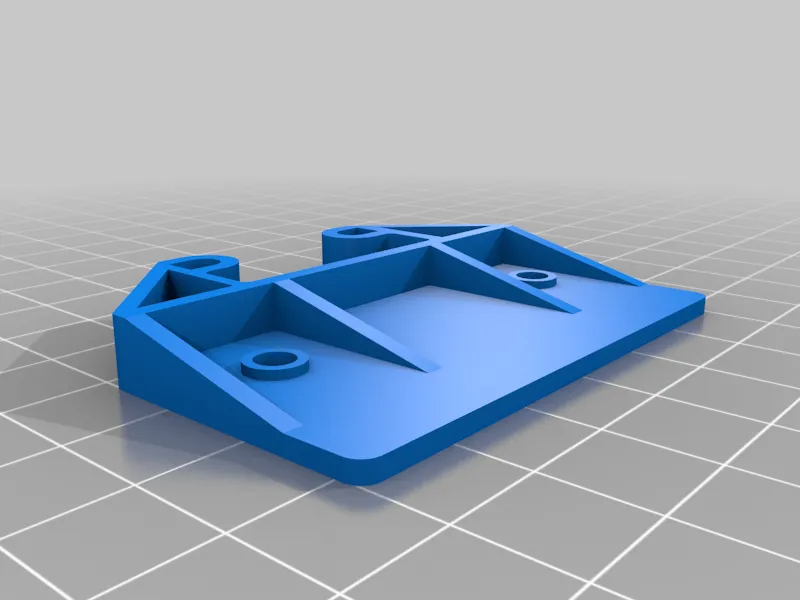

A simple drawer guide I made for one I printed. The slot for the guide is 30 by 7 mm with hooks having 7mm.
Print Settings
Printer:
Elegoo Mars Pro
Rafts:
No
Supports:
No
Infill:
None
Notes:
Printed on resin printer. Very simple part should print easily on any printer. No hard shapes
Originality of the Model
The author declares that this work is their personally shared model
Original creator:
fcusson
Reprint source:https://www.thingiverse.com/thing:5764699
This model is licensed under the following terms:
No Copyright.
