Required Stls:

1x hinge_upper

1x hinge_lower

1x arm_upper

1x arm_lower

2x nut_block

*4x plastic_spacer

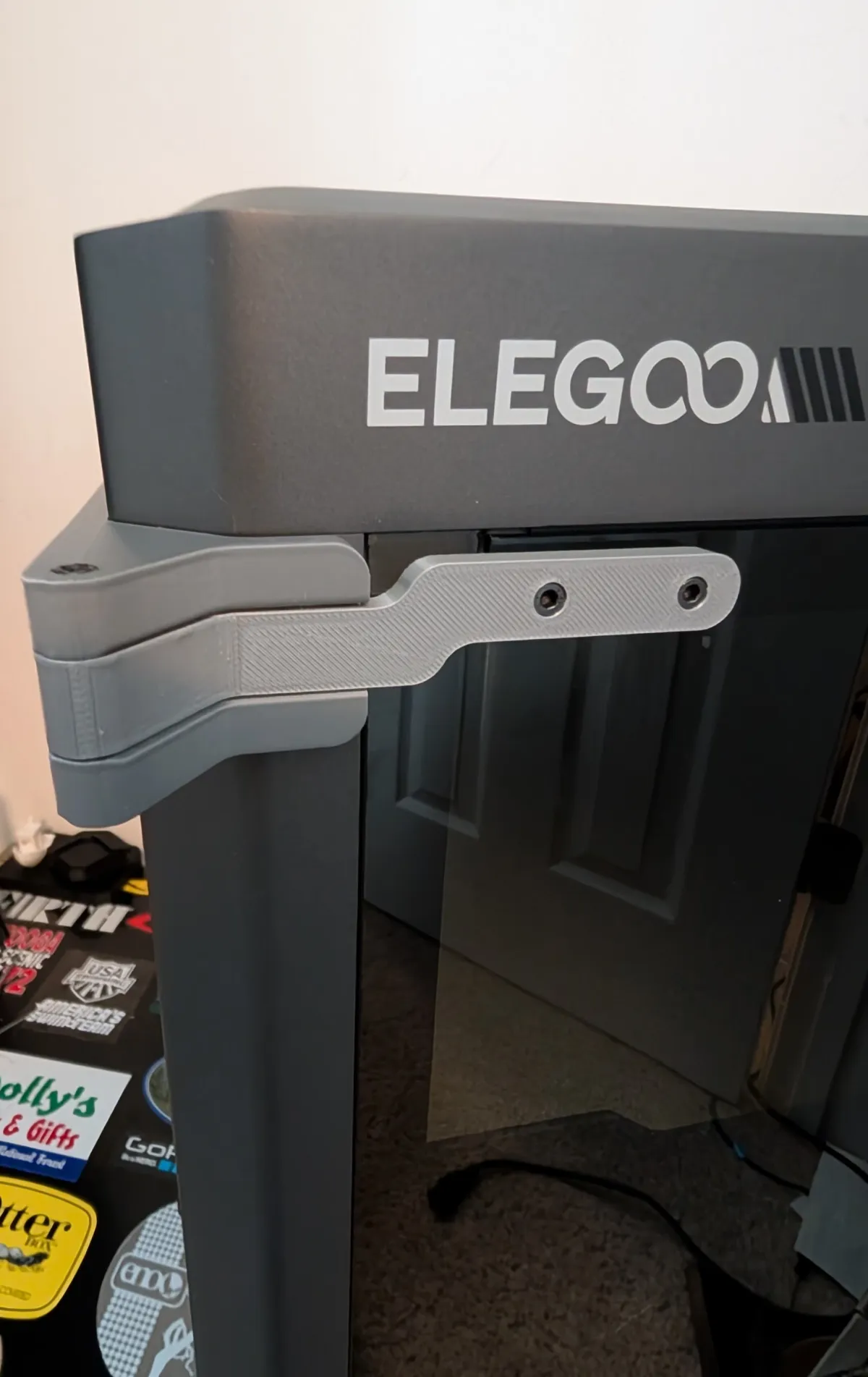

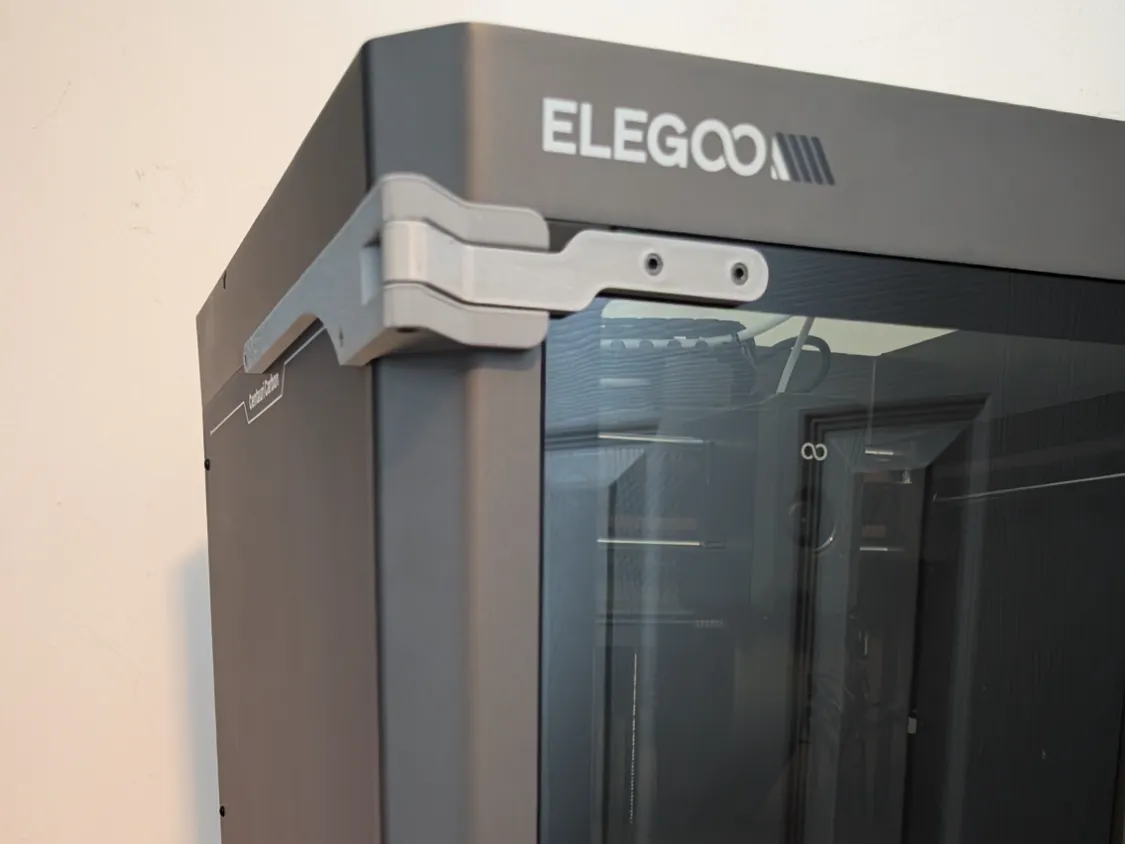

*The plastic spacers go in the glass cutouts to align the panel and prevent the metal screw from touching the glass. To attach the glass door to the hinge the assembly order is: Arm > Metal Washer > Plastic Spacer > Glass Door > Nut Block.

Required Hardware:

4x m3 8mm Socket Cap Screws (for side panel)

4x m3 12mm (or 10mm) Socket Cap Screws (for glass panel)

2x m3 30mm Socket Cap Screws (for hinges)

6x m3 Nuts

4x m3 washers thickness between .5mm and .7mm (for arms)

4x washers from existing hinge

Notes: Print the plastic spacers with wall print order outer to inner, the rest can be printed inner to outer for better overhangs. .2 layer height

Some addons for the hinge can be found here: https://www.nexprint.com/models/1920846833757323264
